4. Operation
4.4 Overview of the menus on the device
4.4.8 Program menu
This menu will only be available if the easyE4 is configured with its fact-
ory settings and/or when a program created with the EDP programming
language has been stored on the easyE4 device.
You can use this menu to create a program with the EDP programming language dir-
ectly on the easyE4 device.
 Opens another menu
STOP ✓ RUN
PARAMETERS
SET CLOCK
CARD
INFORMATION
SYSTEM OPTIONS
PROGRAM
Tab. 56: Main menu

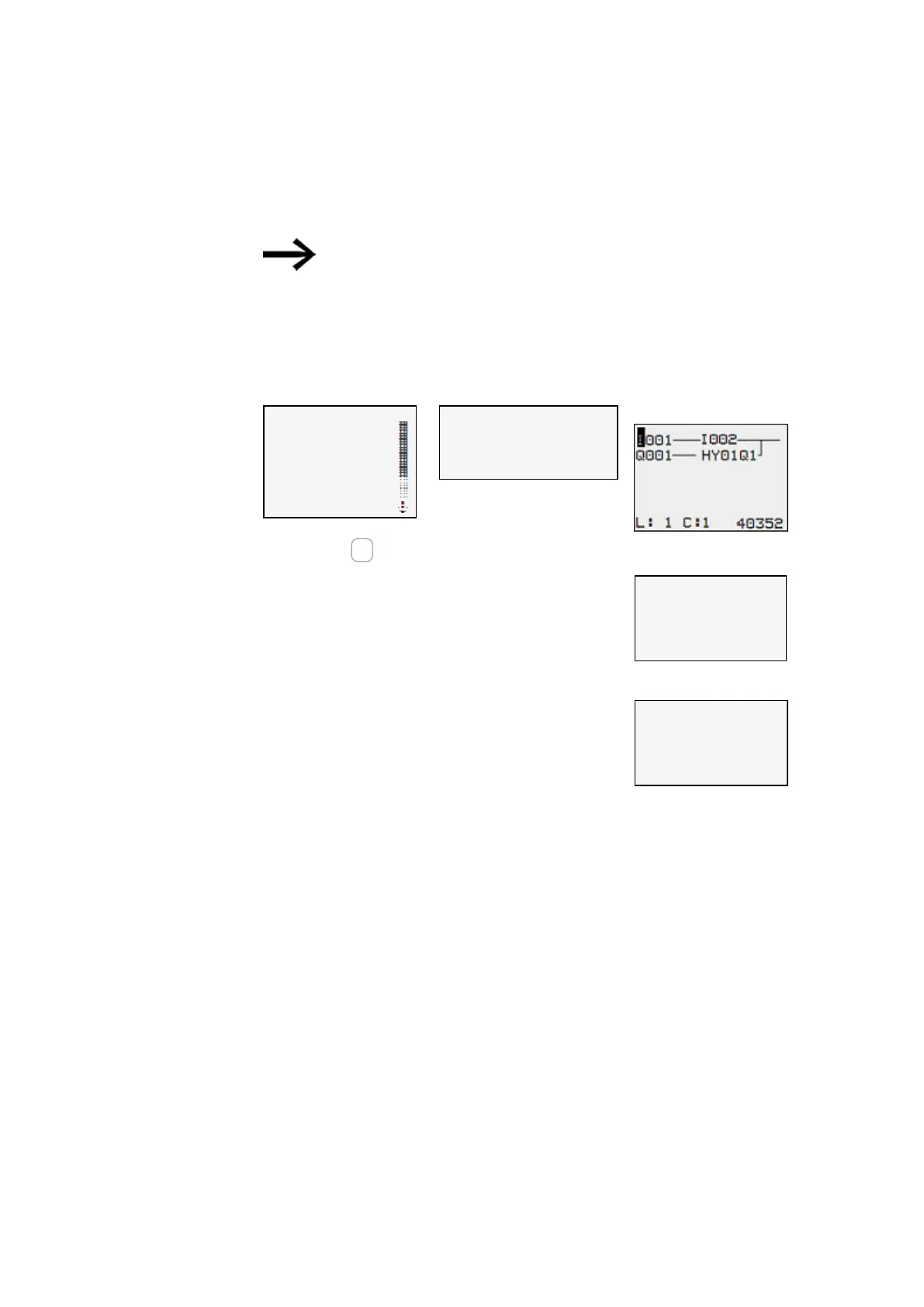

CIRCUIT DIAGRAM
FUNCTION BLOCKS
Tab. 57: Programs
Used to display and edit the
active circuit diagram, e.g.,
Pressing the OK button will show the parameters for
the individual function blocks in an additional sub-
menu that can be used to modify these parameters
with the device's cursor buttons.
T 01 Ü S +
C 02
L:1 STOP
Tab. 58: Programs\Function
Blocks
T 01 Ü S +
>I1 000 800
>I2 009 200
QV> 000 000
..
Tab. 59: Timer module
example
168
