Eaton easyE4 User Manual

2. Installation
2.3 Mounting
2.3.1.2 Screw mounting
Fixing brackets ZB4-101-GF1 that can be inserted on the rear of the easyE4 device
are required for screw mounting.
These feet are available as an accessory – please refer to → Section "Accessory
devices", page 33.

CLICK !

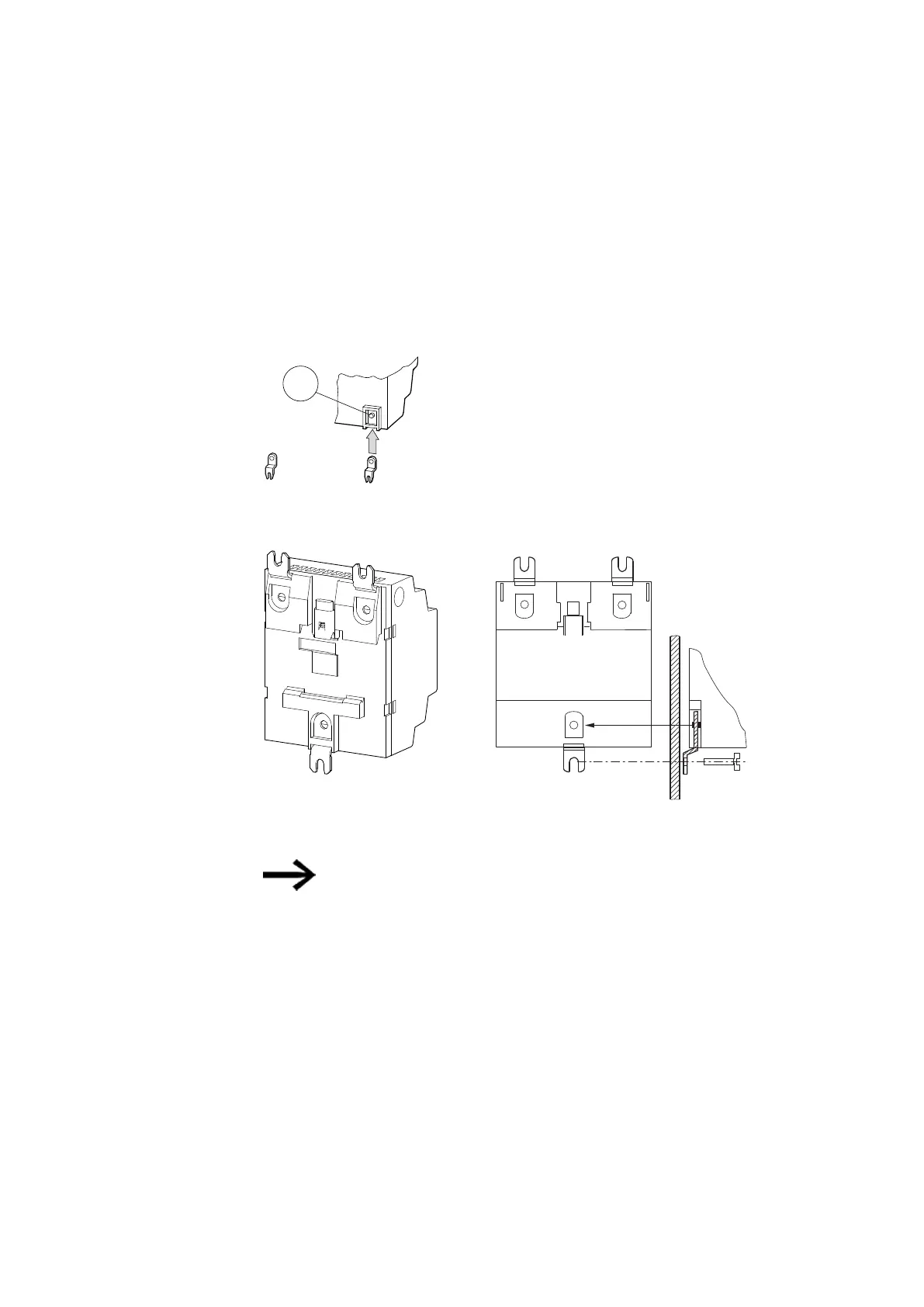

Fig. 13: Inserting a fastening bracket.

Fig. 14: Example: Screw mounting for a 4U device
The base devices and EASY-E4-...-16... 4U expansions, such
as EASY-E4-UC-16RE1(P), require three feet each.
EASY-E4-...-8... 2U expansions, such as EASY-E4-DC-8TE1(P),
EASY-E4-DC-6AE1(P), and EASY-E4-DC-4PE1(P), require two
feet each.
