2. Installation
2.3 Mounting
2.3.1.1 Installation on mounting rail
1. Position the base device against the mounting rail's upper lip in an inclined
position.
2. Lightly push the device down and against the mounting rail until it snaps into
place over the mounting rail's lower lip.
The device will clip into place automatically.
35 mm (1.38”)
1 mm (0.04”)
7.5 mm (0.29”)
15 mm (0.59”)

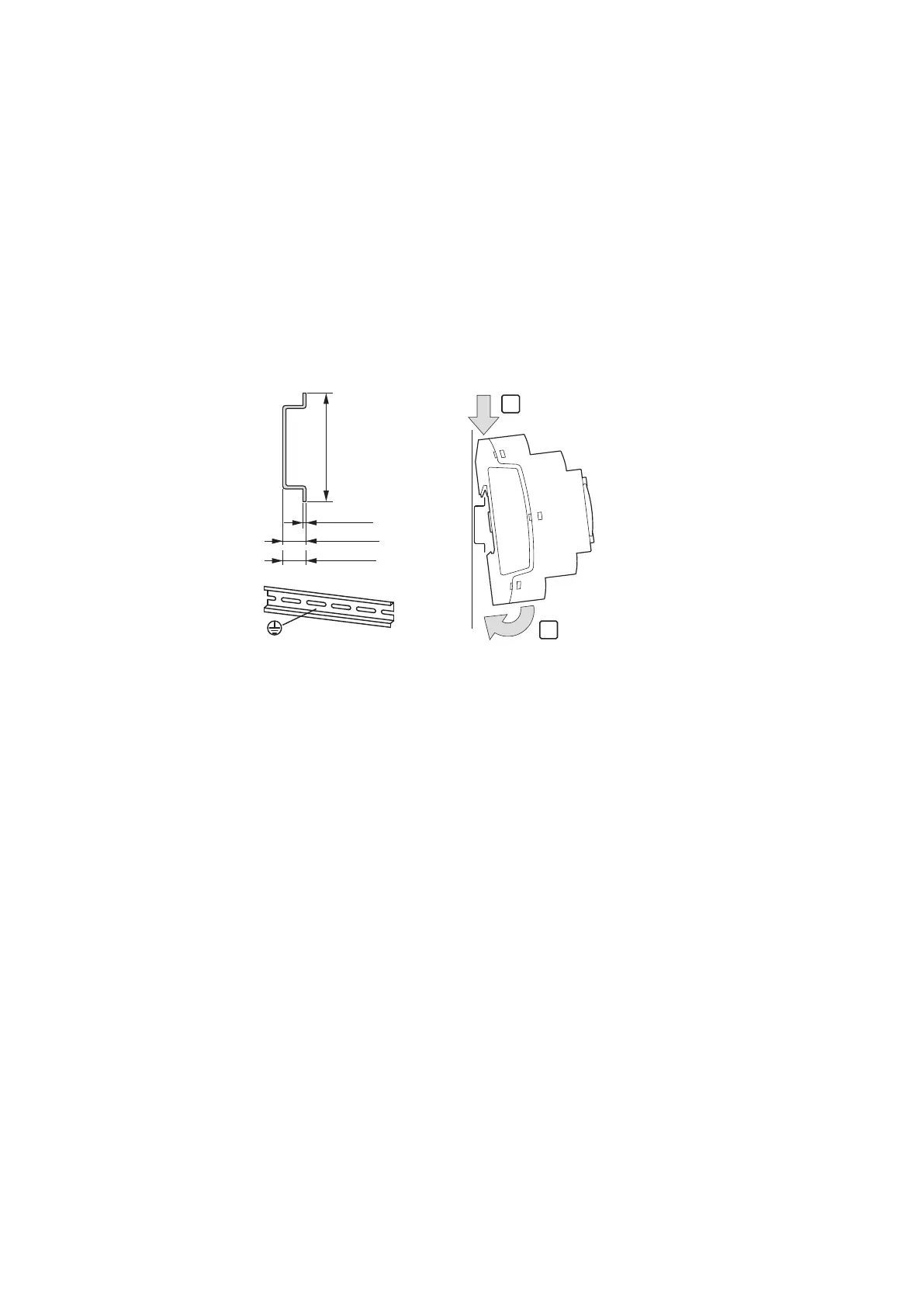

Fig. 12: Installation on IEC/EN 60715 mounting rail
3. Check that the device is seated firmly.
The device is mounted vertically on a mounting rail in the same way.
Mounting the first expansion (optional)
1. Position the expansion device against the mounting rail's upper lip in an
inclined position to the right of the base device.
2. Slide the expansion until it is resting flush against the base device.
3. Lightly push the device down and against the mounting rail until it snaps into
place over the mounting rail's lower lip.
4. Remove the end cover from the base device and store it in a safe place.
5. Connect the base device to the expansion using the connector.
Mounting additional expansions (optional)
1. Position the expansion device against the mounting rail's upper lip in an
inclined position to the right of the previous expansion.
2. Slide the expansion until it is resting flush against the previous expansion.
3. Lightly push the device down and against the mounting rail until it snaps into
place over the mounting rail's lower lip.
62
easyE402/24 MN050009ENEaton.com
