1. Description of easyE4 control relay
1.3 Device models - versions and part nos.
1.3.2 Expansion versions
The available input and output expansion devices are different from each other in
terms of:
l
The type of operating voltage - UC, DC or AC,
l
The type and number of inputs/outputs - relay or transistor
l
The corresponding function - temperature, for example
l
The type of terminals - screw terminals or push-in terminals
and
l
in terms of width - 4 or 2 (space units SU).
EASY-E4-UC-16RE1(P),
EASY-E4-DC-16TE1(P),
EASY-E4-AC-16RE1(P)
EASY-E4-UC-8RE1(P),
EASY-E4-DC-4PE1(P),
EASY-E4-DC-6AE1(P),
EASY-E4-DC-8TE1(P),
EASY-E4-AC-8RE1(P)

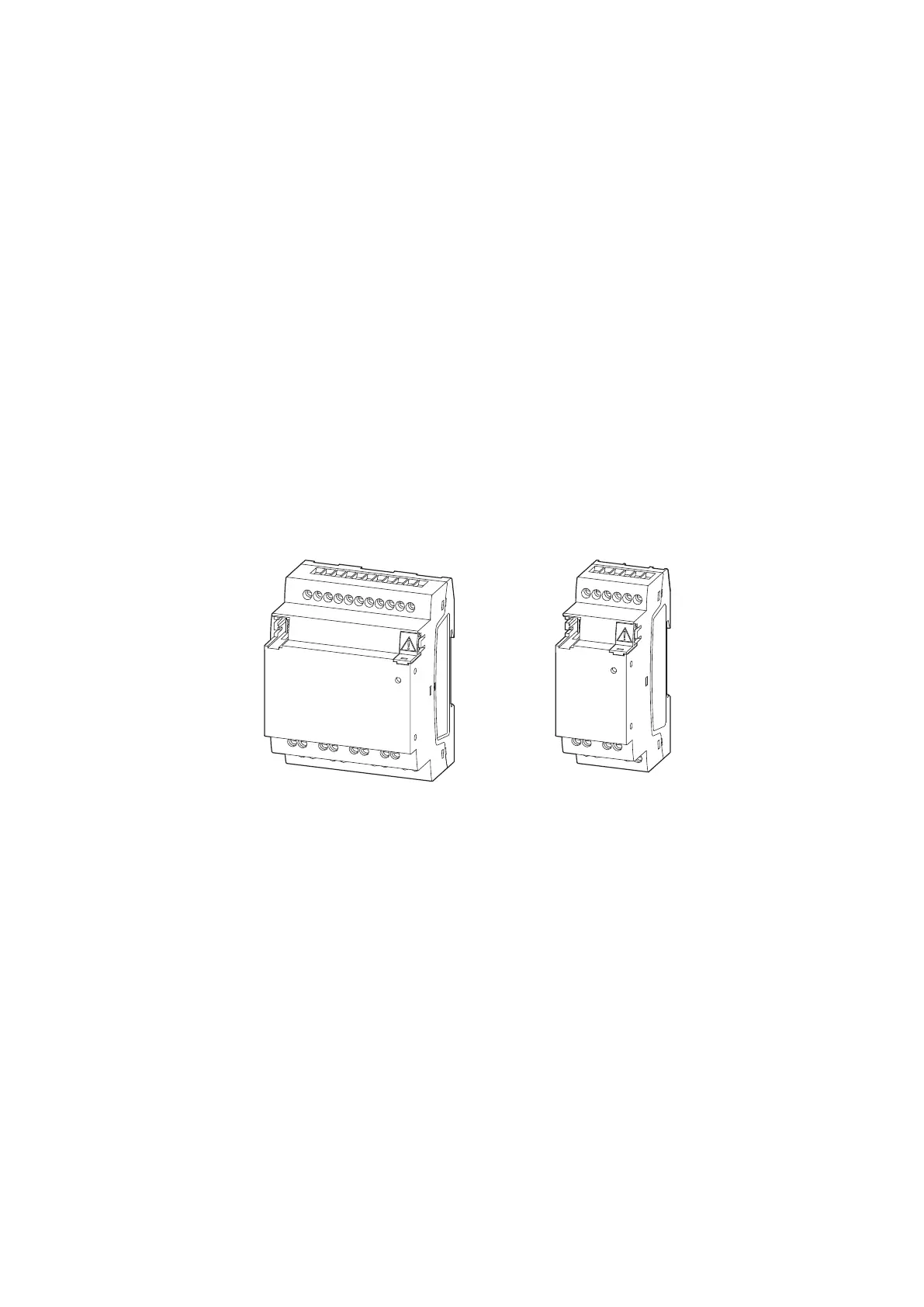

Fig. 2: Device models in 4SU
Fig. 3: Device models in 2SU
28
