Eaton easyE4 User Manual

2. Installation
2.3 Mounting
2.3.1.3 Dismounting of a device
Disconnect all the connections and wires for the device
If the device is a standalone base device, you can remove it directly
If you are working with a block consisting of a base device and expansion
devices
and/or on easy communication module, remove the connectors.
DEL
A
LT
ES
C
O
K
2
1
1
2
4
3
3
4

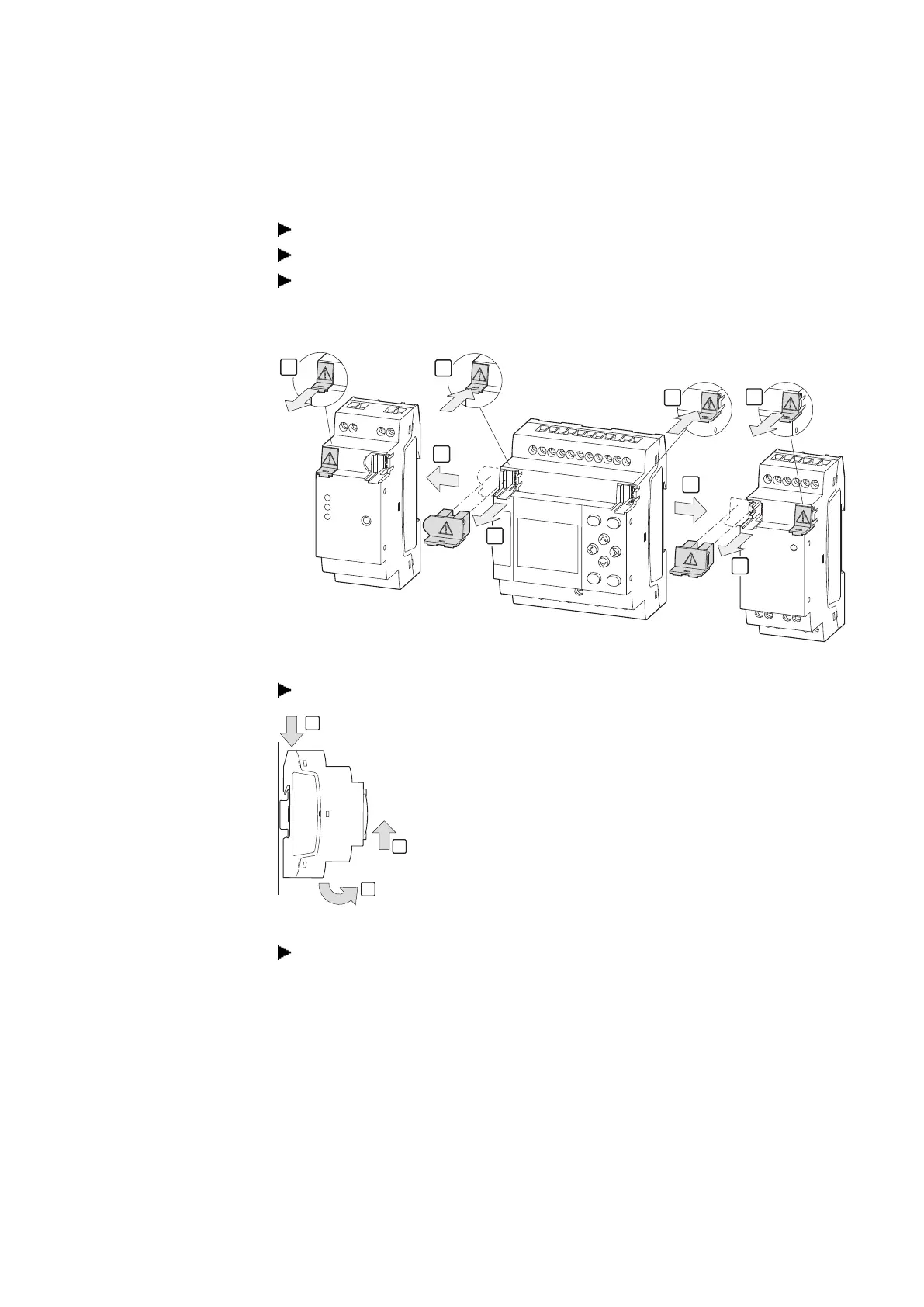

Fig. 15: Remove adjacent connectors
Remove the device from the mounting rail
1
3
2
Fig. 16: Dismantling
Screw mounting option:
Unscrew the screws on the device feet.
