DS-1100KI Network Keyboard User Manual
108
Steps:
1. Select the login mode to Analog Matrix on the Server Login interface.

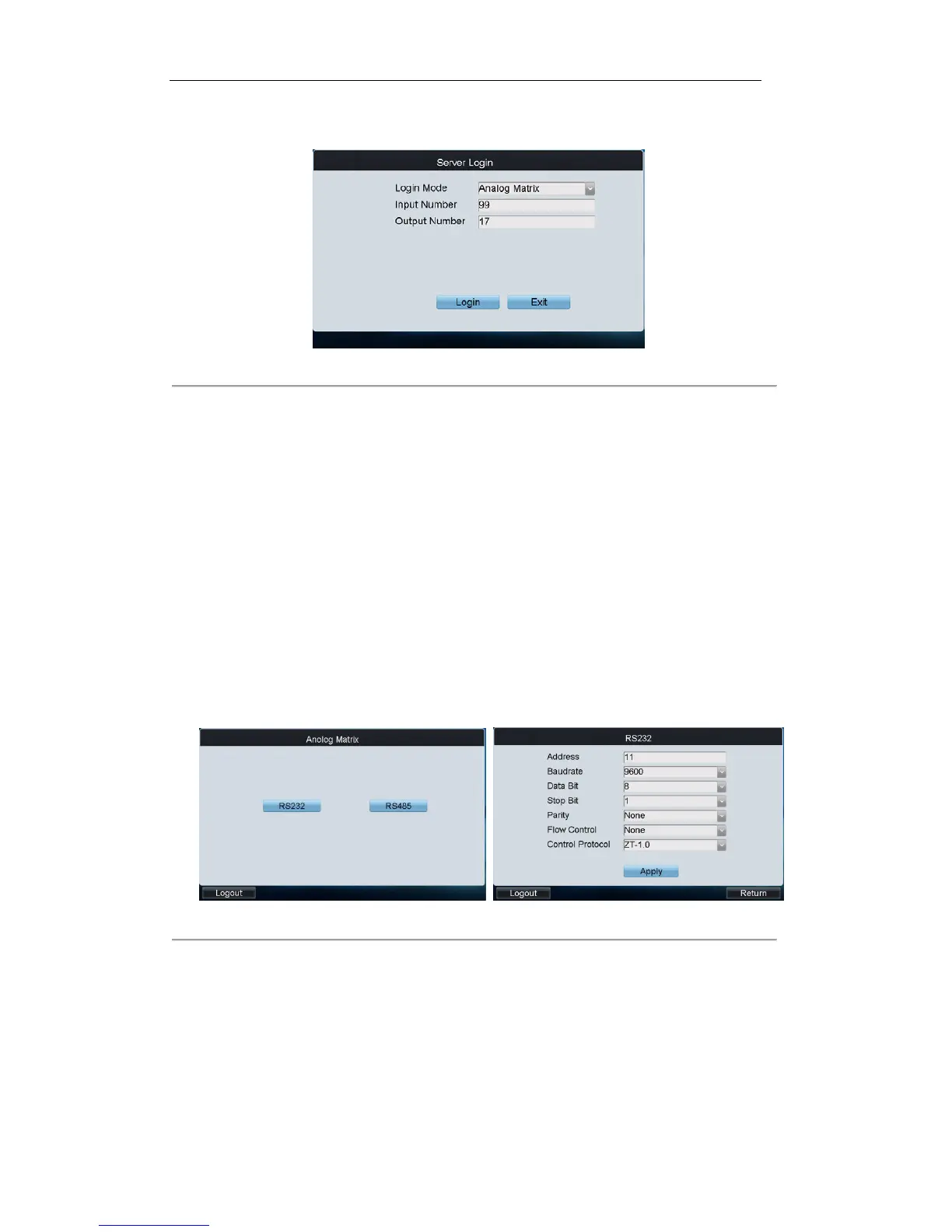

Figure 6. 28 Server Login Interface
2. Enter the number of video inputs in the Input Number field.
3. Enter the number of video outputs in the Output Number field.
4. Click Login to log into the analog matrix system.
6.2.2 Configuring RS-232 Parameters
Purpose:
The RS-232 parameters must be configured the same with that of the connected analog matrix so as to realize the
RS-232 communication.
Before you start:
Make sure the RS-232 port of analog matrix and the RS-232 port of keyboard have been connected with the
control line.
Steps:
1. Click RS232 on the Analog Matrix to enter the RS232 settings interface.
Figure 6. 29 RS232 Settings Interface
2. Input the address of the connected analog matrix. Each matrix must be assigned with unique address.
3. Select the baud rate of the connected analog matrix.
4. Set the data bit, stop bit, parity and flow control the same with those of the connected analog matrix.
5. Select the protocol of the connected analog matrix. Currently four protocols are supported: ZT-1.0, ZT-2.0,
EXTRON and CREATOR.
6. Click Apply to save the settings.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
