5.4 PTZ Control
5.4.1 PTZ Control Function
If the camera connected to the keyboard supports PTZ function, you are allowed to operate the
LIGHT/FOCUS/IRIS/ZOOM/WIPER buttons to realize PTZ control.
Two operation methods can be used to realize PTZ control:
Method 1:
1. Press the Num + MON keys to select the monitor.
2. Press the Num + WIN keys to select the display window.
When the current window is in cycle view mode, the keyboard will be unable to automatically connect
with the camera and now it is invalid to operate the joystick.
Method 2:
1. Press the Num + CAM keys to directly select the camera.
2. When the camera connected to the keyboard supports PTZ function, operate the joystick and
LIGHT/WIPER/FOCUS±/IRIS±/ZOOM buttons to realize PTZ control.
5.4.2 Setting a Preset
Select the output monitor or window and the keyboard is capable of automatically connecting with its
corresponding camera. Operate the joystick to move PTZ to the desired position and then press the PRESET key to
complete the preset settings. You are also allowed to directly select the camera by inputting Num + CAM keys and
then press the PRESET key to start patrol settings.
• Setting a Preset by Output Channel
Steps:
1. Press the Num + MON keys to select the output channel.
2. Press the Num + WIN keys to select the display window.
3. Operate the joystick to move PTZ to the desired position.
4. Press the Num + PRESET keys to set the current position as the preset with entered number.

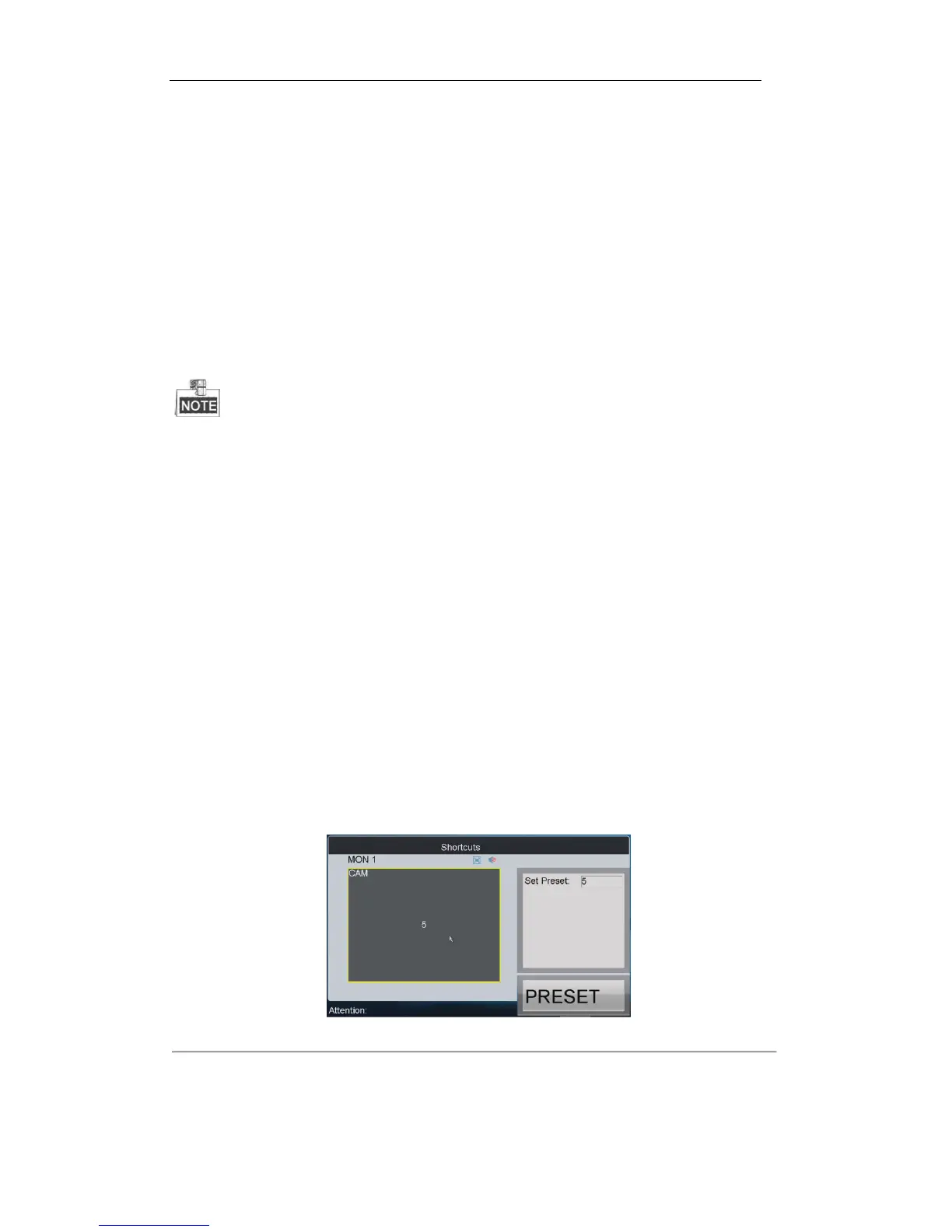

Figure 5. 16 Setting a Preset
