HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
71

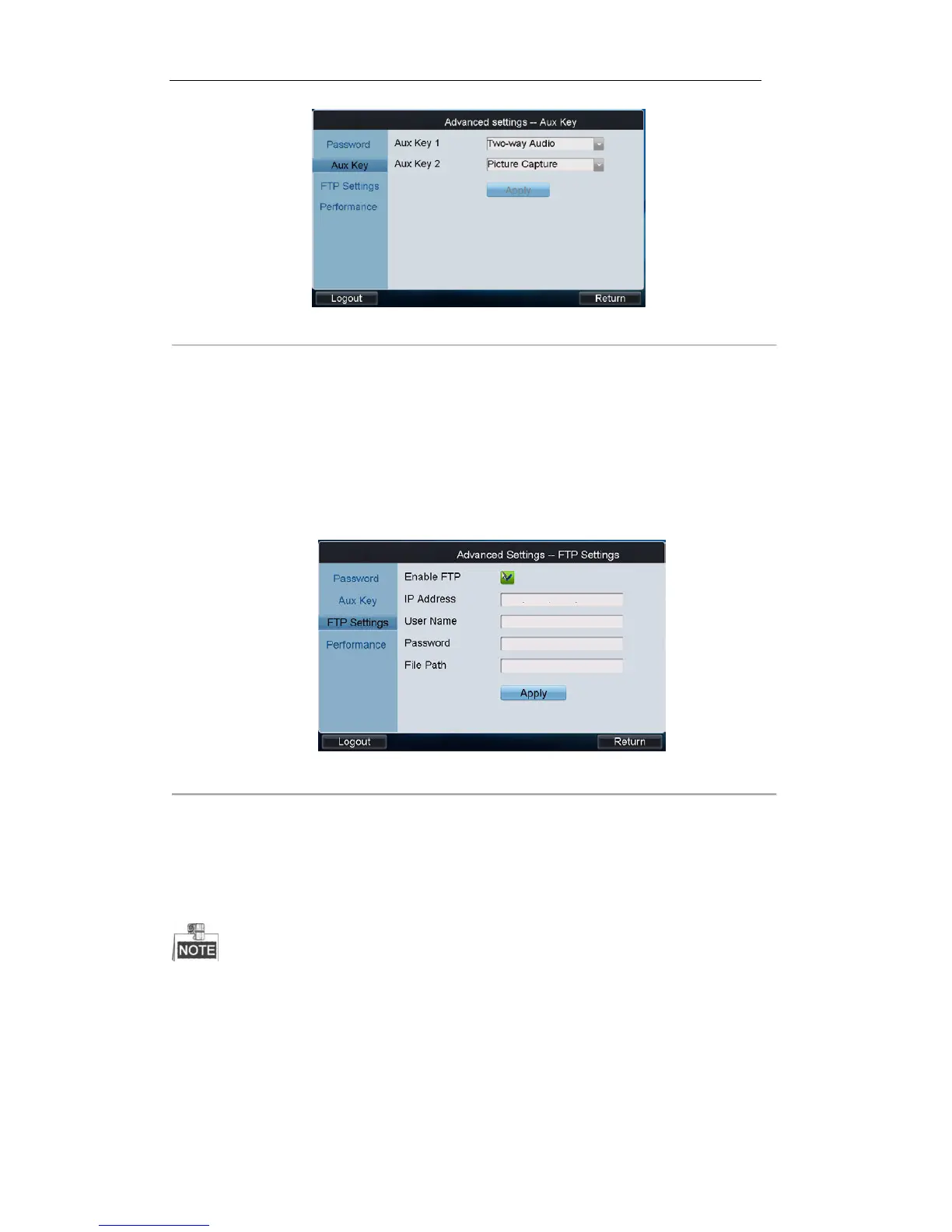

Figure 4. 67 AUX Key Settings
4.7.3 FTP Settings
The video files or captured pictures can be uploaded to FTP server.
For detailed information of FTP settings, refer to Appendix 2.
Steps:
1. Click FTP Setting on the left navigation bar to enter the FTP settings interface.
Figure 4. 68 FTP Settings
2. Check the checkbox of Enable FTP.
3. Enter the IP address of the FTP server.
4. Enter the user name and password of login to the FTP server.
5. Enter the file path to which the video files and captured pictures are uploaded.
6. Click Save to save the settings.
1. The wrong file path will lead to capture failure.
2. After FTP configuration, recorded files and captured pictures will not be saved to USB- flash disk.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
