DS-1100KI Network Keyboard User Manual
88
Corresponding error message will appear on the screen when you perform wrong operation.
5.4.6 Setting a Pattern
Select the output monitor or window and the keyboard is capable of automatically connecting with its
corresponding camera. Press the SET key on the keyboard and then press PATTERN key to enter the pattern
settings interface. You are also allowed to directly select the camera and then press the SET key to start pattern
settings.
• Setting a Pattern by Output Channel
Steps:
1. Press the Num + MON keys to select the output channel.
2. Press the Num + WIN keys to select the display window.
3. Press the SET key to enter the settings interface.
4. Press the Num + PATTERN keys to set the pattern number.
5. Operate the joystick to control PTZ movement.
6. Press the SET key again to finish the pattern settings.

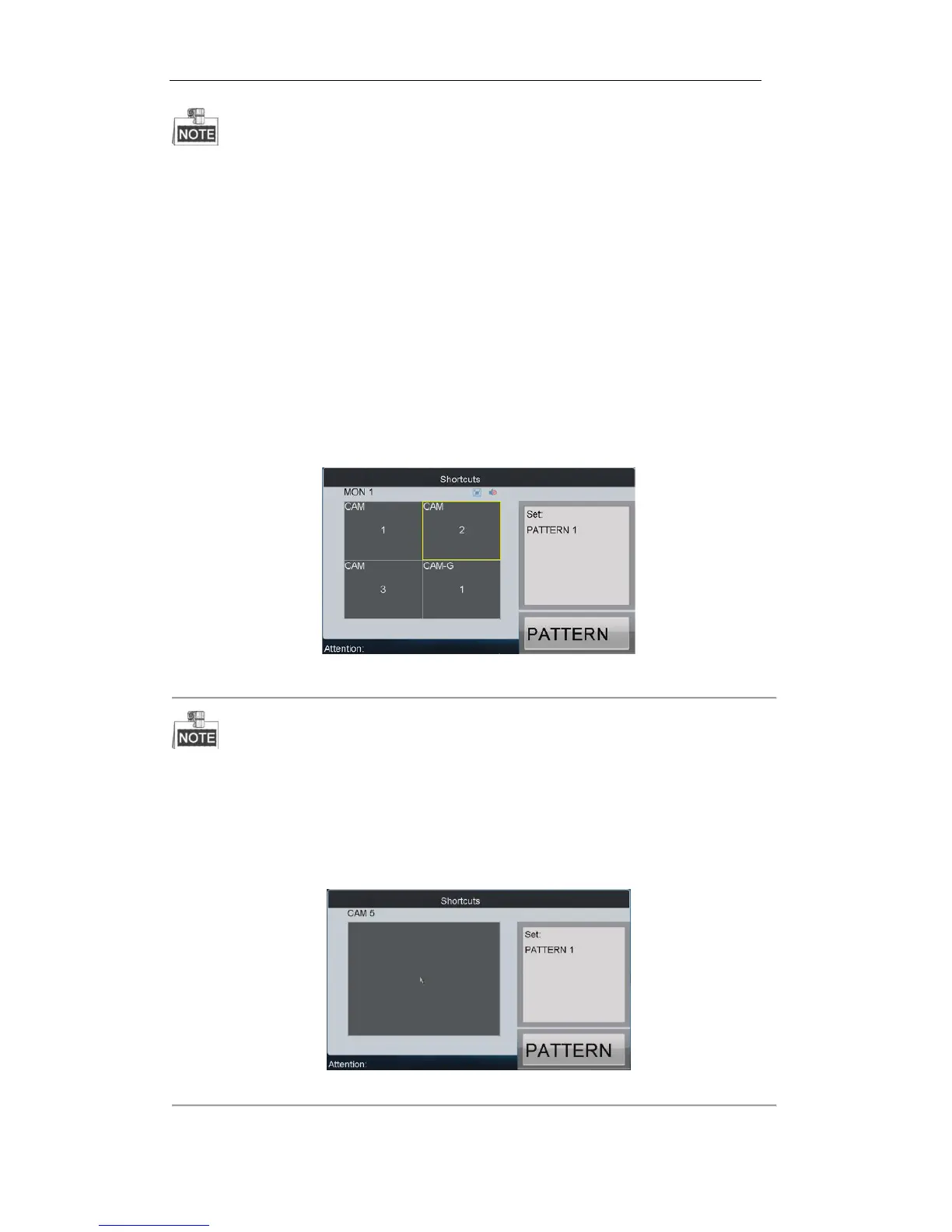

Figure 5. 24 Setting a Pattern by Output Channel
It is invalid to input the 0+CAM keys in the current operation mode.
• Setting a Pattern by Input Channel
Steps:
1. Press the Num + CAM keys to select the input channel.
2. Press the SET key to enter the settings interface.
3. Press the Num + PATTERN keys to set the pattern number.
4. Operate the joystick to control PTZ movement.
5. Press the SET key again to finish the pattern settings.
Figure 5. 25 Setting a Pattern by Input Channel

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
