HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
22

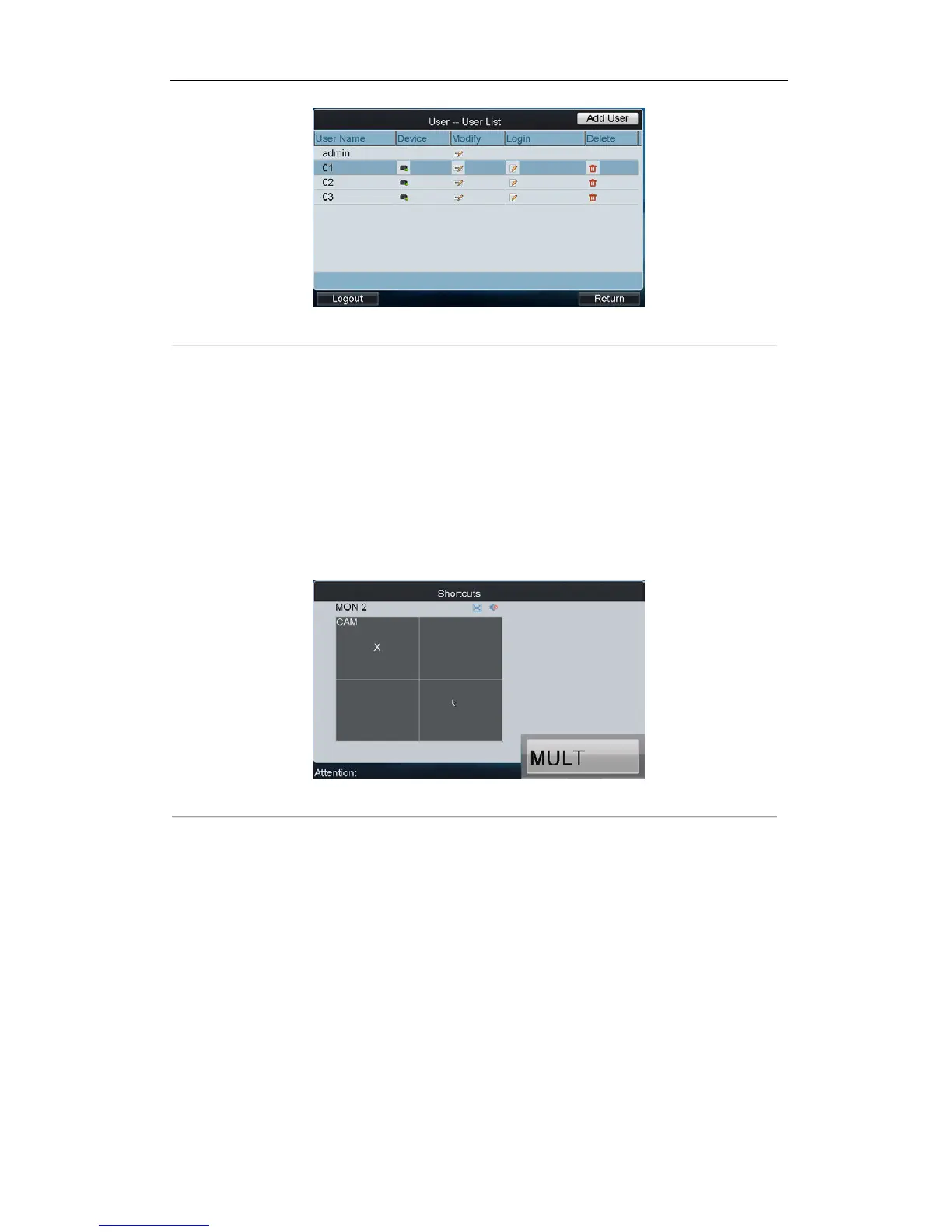

Figure 2. 20 User-User List
2.7 Quick Operation
Multi-division Display
The Operator user is allowed to select different multi-division display modes for the selected output channel.
Currently, 1/4/9/16-division display modes are configurable.
Steps:
1. Press the Num + MON keys to select the monitor.
2. Press the Num + MULT keys to select the multi-division display mode for the output channel.
Figure 2. 21 Shortcuts
Display of Decoded Video on Monitor
Steps:
1. Press the Num + MON keys to select the monitor.
2. Press the Num + WIN keys to select the display window on the monitor.
You can also directly touch the screen to select the display window.
3. Press the Num + CAM keys to select the input camera.
Example: You can press the “1+MON, 2+WIN, 3+CAM” keys to decode the video signal from camera 3 and display it
on window 2 of monitor 1.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
