Chapter 5 Keyboard Operation
5.1 Shortcut Operation
The operating user must log in the keyboard to realize all shortcut operations (except LOCK).
Shortcut Operation: Press the Num keys on the keyboard to enter the shortcuts operation interface.
 When user enters the shortcuts operation interface by inputting the Num key, press ESC to cancel the
inputted numeral from the screen and start the shortcut operation.
 When user enters the shortcuts operation interface by inputting the SET key, user should press it again before
starting the shortcut operation.
In the shortcuts operation interface, the left part has displayed the current output channel, and user can select
different split- screen display modes, set input channel for each window, or configure other shortcut operations.
And the right part of the interface is used for displaying the current key input and some shortcut operations.

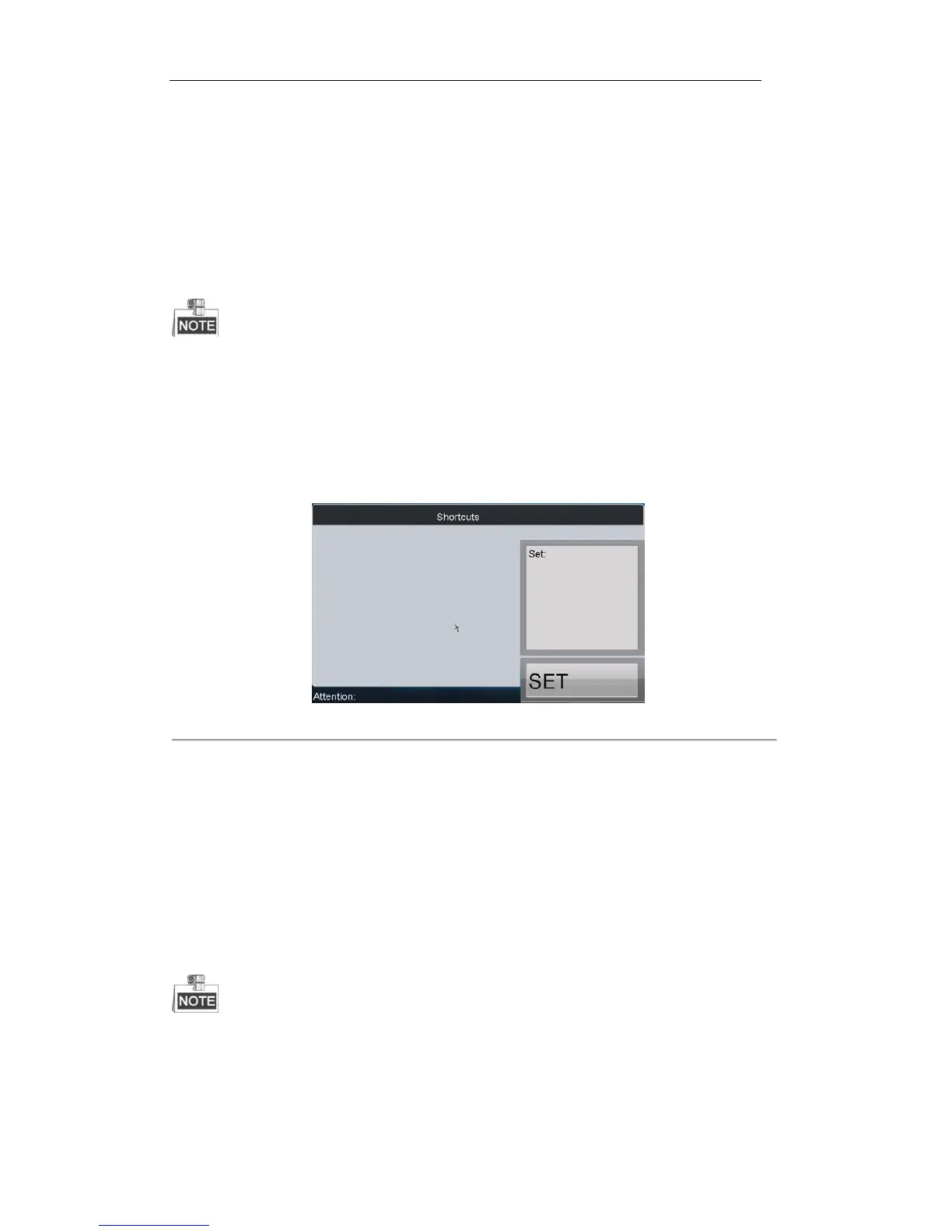

Figure 5. 1 Shortcuts
5.2 Local Live View
The local live view refers to display the video signal from the input channel through the network keyboard.
Currently, only the 1-window display mode for 1 decoding channel is supported. In the preview mode, user can
operate other shortcut functions.
Steps:
1. Press the 0+MON keys to enter local preview.
2. Press the Num + CAM keys to select the camera input for display on the screen.
In the local operation status, it is unallowable to operate the window (WIN), camera group (CAM-G),
split-screen display (MULT) and camera tour (TOUR) functions.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
