DS-1100KI Network Keyboard User Manual
58
4.2.5 Decoding Status
Click Decoding Status on the remote settings interface to enter the Decoding Status interface.
You can view the working status of each decoding channel, including the decoding state, stream type, package
mode, video/audio frame rate, etc.

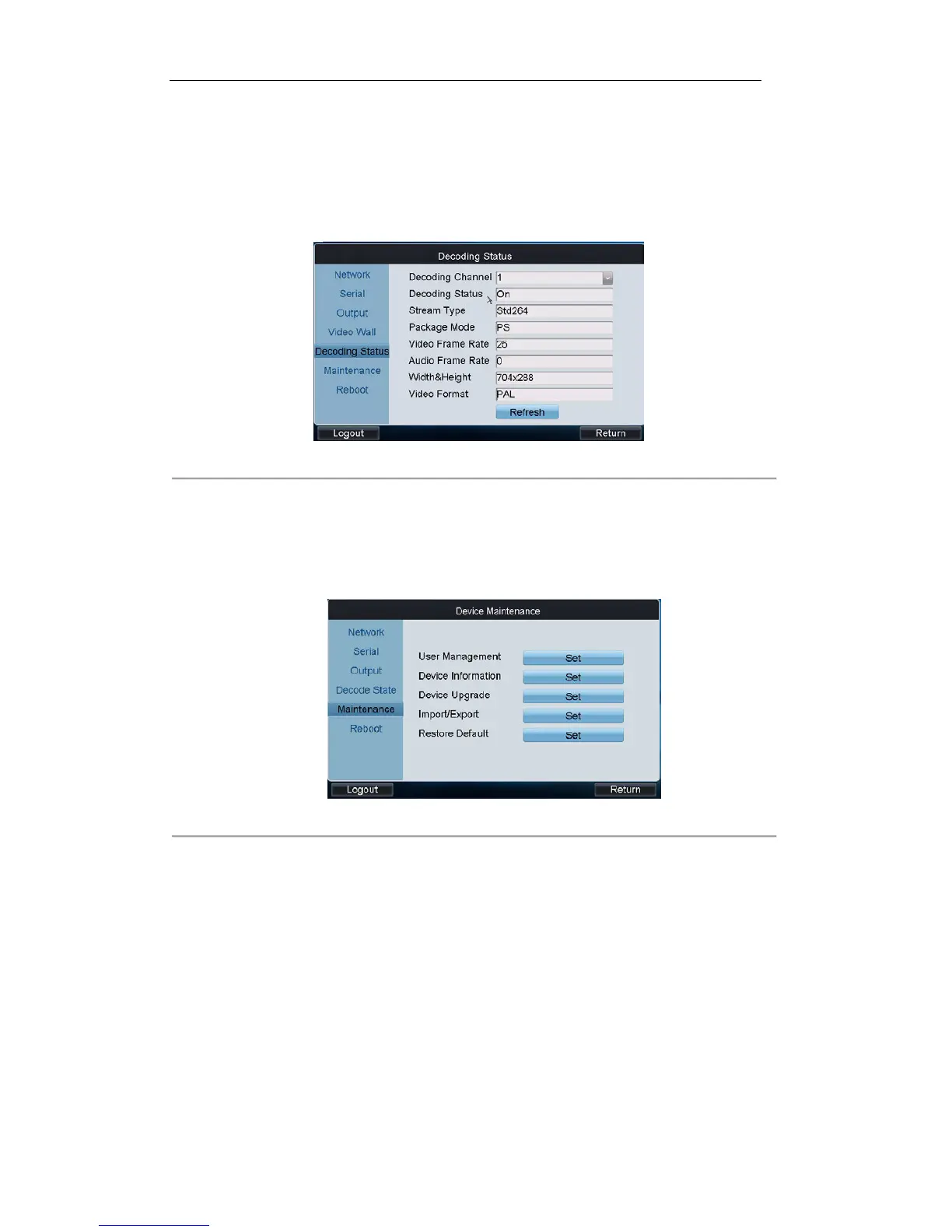

Figure 4. 39 Decoding Status Interface
4.2.6 Maintenance
Click Maintenance on the remote settings interface to enter the Device Management interface.
Figure 4. 40 Device Maintenance
User Management: Add/edit/delete user account, and assign operating permissions for each user.
Device Information: View the version and basic information of the decoder device.
Device Upgrade: Remotely upgrade the device by USB file.
Import/Export: Import/export configuration files.
Restore Default: Restore factory default settings.
4.3 Input Settings
Click Input on the main interface to enter the Input Settings-Input List interface.
The list has displayed all cameras which can be controlled by the current login user.
Search by IP or domain is supported. Input the IP address or domain of the device in the text field and click the

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
