HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
114

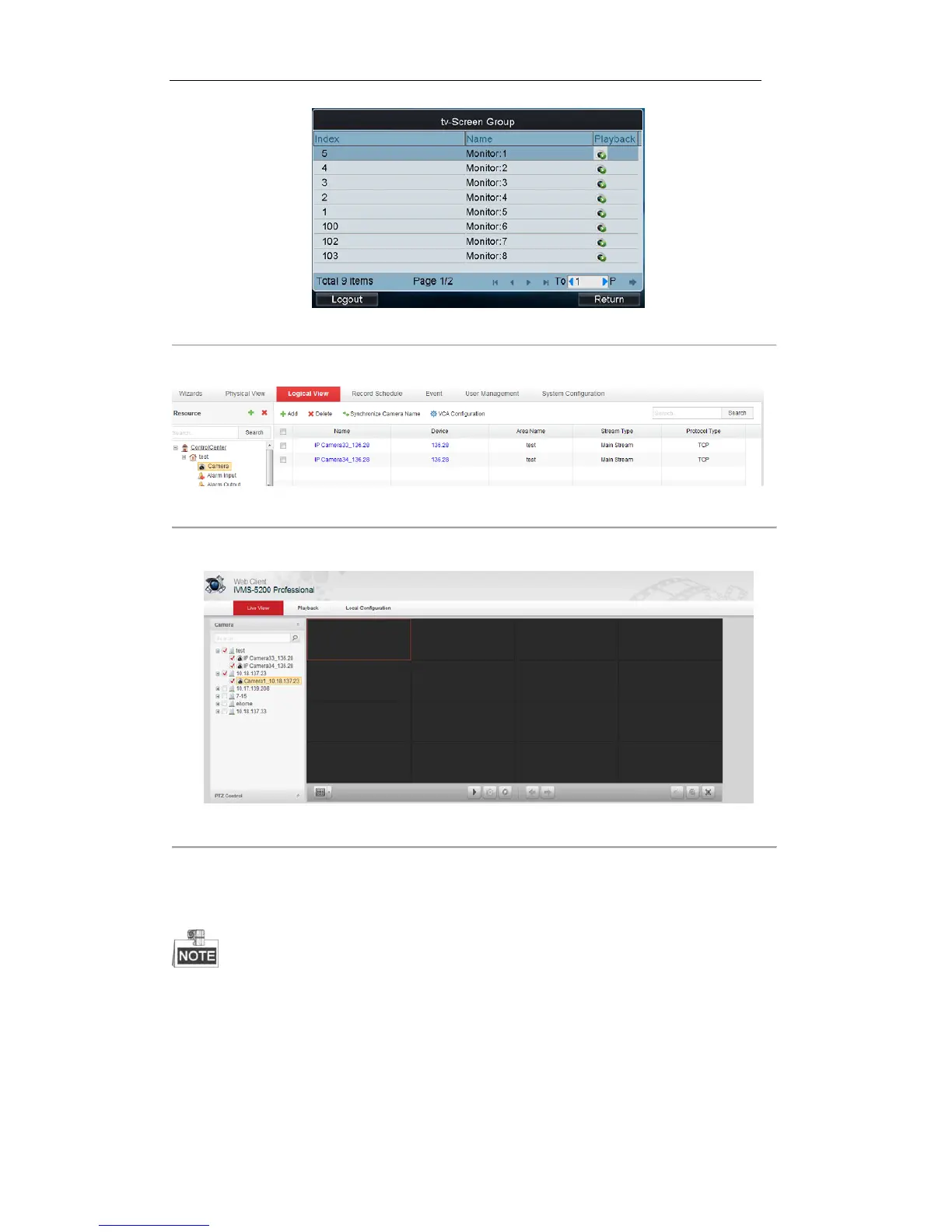

Figure 6. 40 TV-Screen Group Interface
2. Log in to the iVMS platform, and click Logical View->Camera to enter the following page:
Figure 6. 41 Camera List
3. Log in the iVMS 5200 and click Live View to view the screen layout:
Figure 6. 42 Screen Layout Interface
The corresponding output channel is corresponding to the Index No. on the Screen Group interface of the
keyboard, e.g., the index 1 corresponds to the 108_vga_0 output channel.
4. Press the Index No. + MON keys (e.g., 1 + MON) on the keyboard to select the output channel.
The configuration method varies with different platforms.
6.3.1.2 Managing Input Channel
1. The corresponding input channel is corresponding to the Index No. on the Control Center Unit List interface of
the keyboard, e.g., the index 12060404594398402 corresponds to the Channel 1 of the device 109.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
