1. Click Output on the remote settings interface to enter the Output Settings interface.

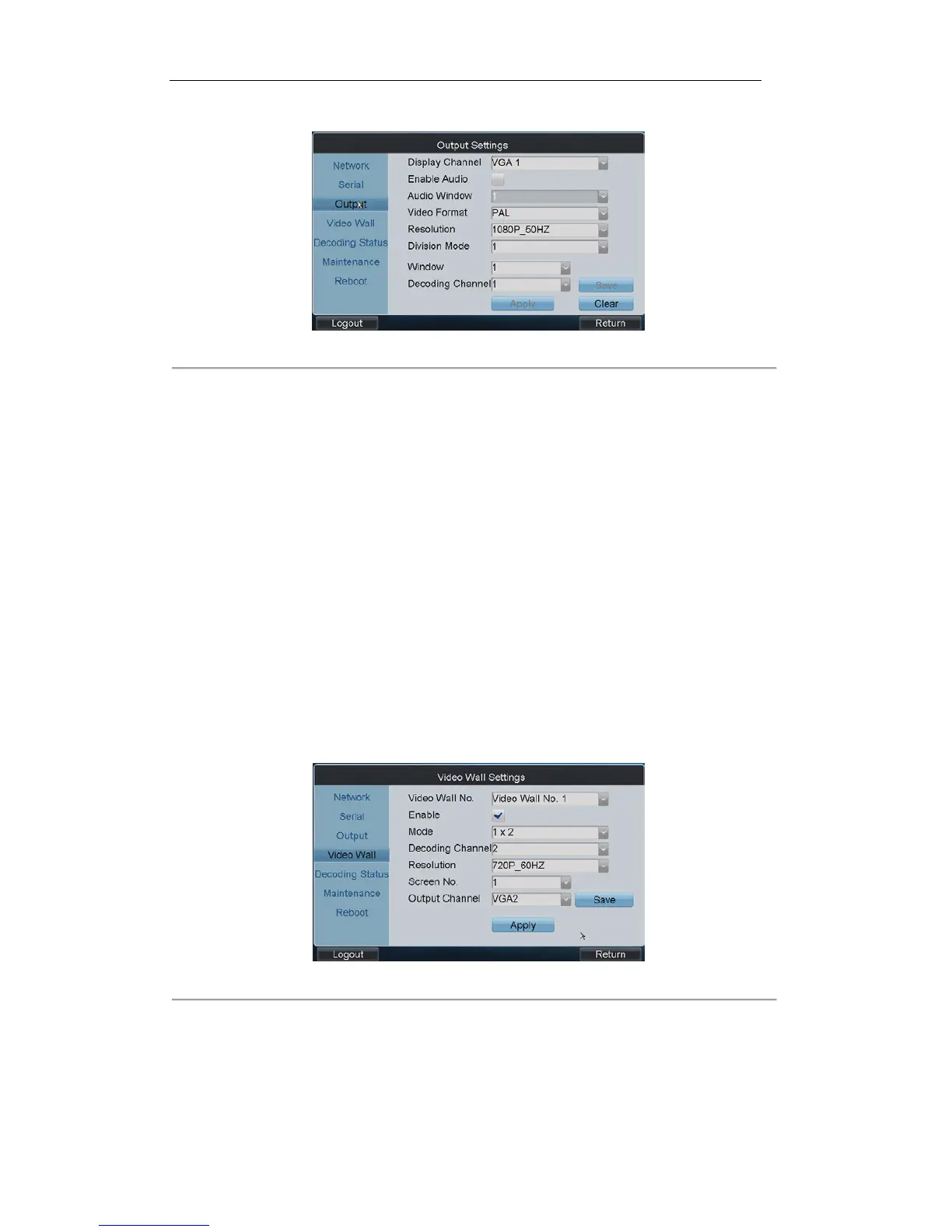

Figure 4. 37 Output Settings
2. Select the display channel.
3. Enable audio and configure it for a window if required.
4. Set the video format and resolution of the decoded video output.
5. Select the window-division mode (1/2/4-division).
6. Configure window for relevant channel.
(1) Select a window and its relevant channel.
(2) Click Save to save the current widow settings.
(3) Repeat the same steps to configure the other windows for their related channels.
7. After having configured the above settings, click Apply to finish the settings or Clear to cancel the settings.
4.2.4 Video Wall
If the connected decoder is DS-6400HDI-T or DS-6400HDI-S, the video wall display is supported. You can decode
the video signal and display it on the video wall.
Steps:
1. Click Video Wall on the remote settings interface to enter the Video Wall interface.
Figure 4. 38 Video Wall Settings
2. Select the video wall No. to configure and enable the video wall display by checking the Enable checkbox.
3. Select the window-division mode.
4. Set the decoding channel and the output resolution.
5. Select the screen No. of the selected video wall and the output channel of the decoder.
6. After having configured the above settings, click Apply to finish the settings.
