HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
68

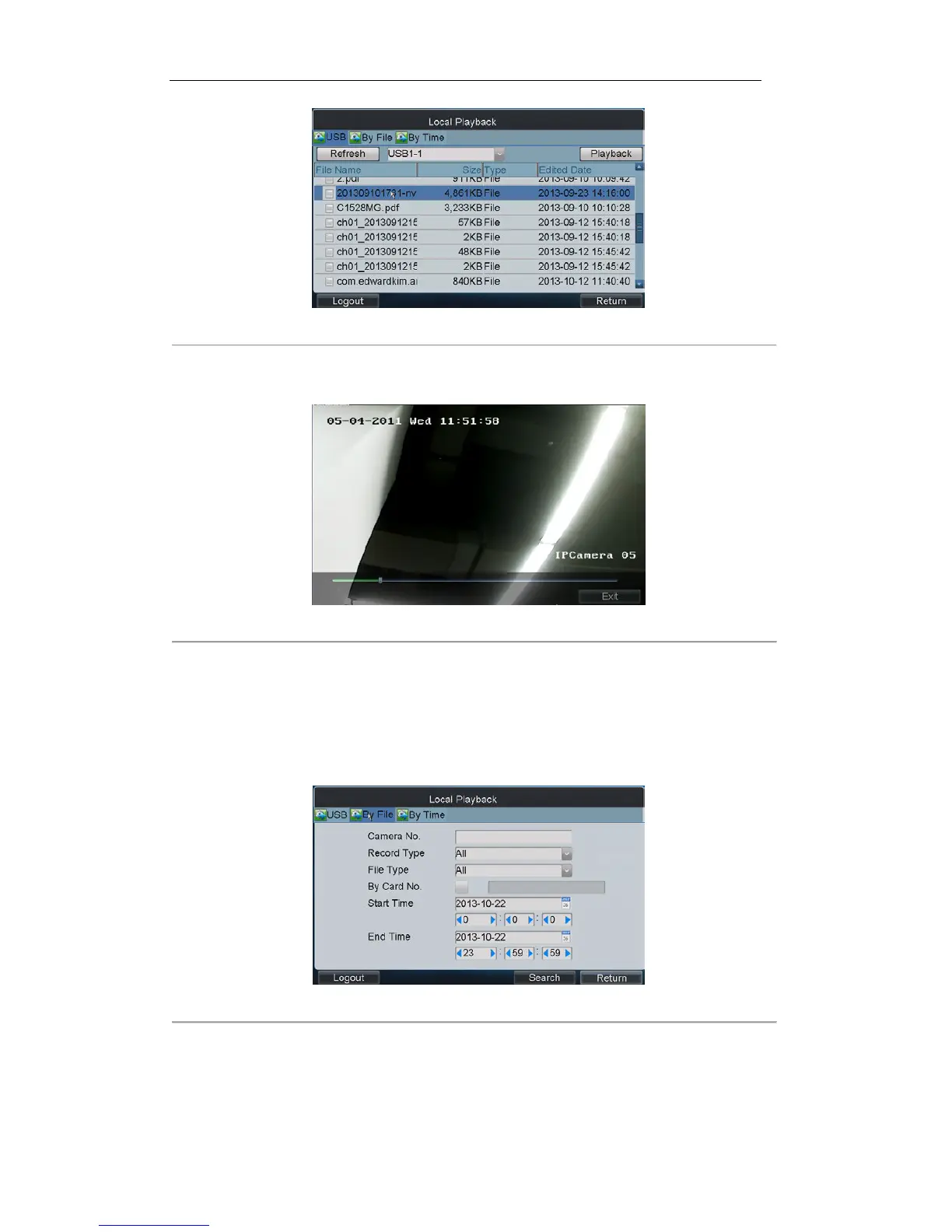

Figure 4. 60 Playback by USB File
3. Select the video file from the USB disk for playback.
4. Click Playback to play the selected video file.
Figure 4. 61 Playback
4.6.2 Playback by File
Steps:
1. Click the By File tab on the Local Playback interface to enter the Playback by File interface.
Figure 4. 62 Playback by File
2. Input the Camera No. for playback.
3. Select the record type and file type.
If the encoding device is ATM DVR, you can input the Card No.
4. Set the start time and end time of the video files for playback.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
