5.4.5 Calling a Patrol
Select the output monitor or window and the keyboard is capable of automatically connecting with its
corresponding camera. Press the PATROL key on the keyboard to call the programmed patrol. You are also
allowed to directly select the camera and then press the PATROL key to realize patrol callup.
• Calling a Patrol by Output Channel
Steps:
1. Press the Num + MON keys to select the output channel.
2. Press the Num + WIN keys to select the display window.
3. Press the Num + PATROL keys to call the programmed pattern.
This operation is valid only when the patrol function is supported by the connected camera/dome.

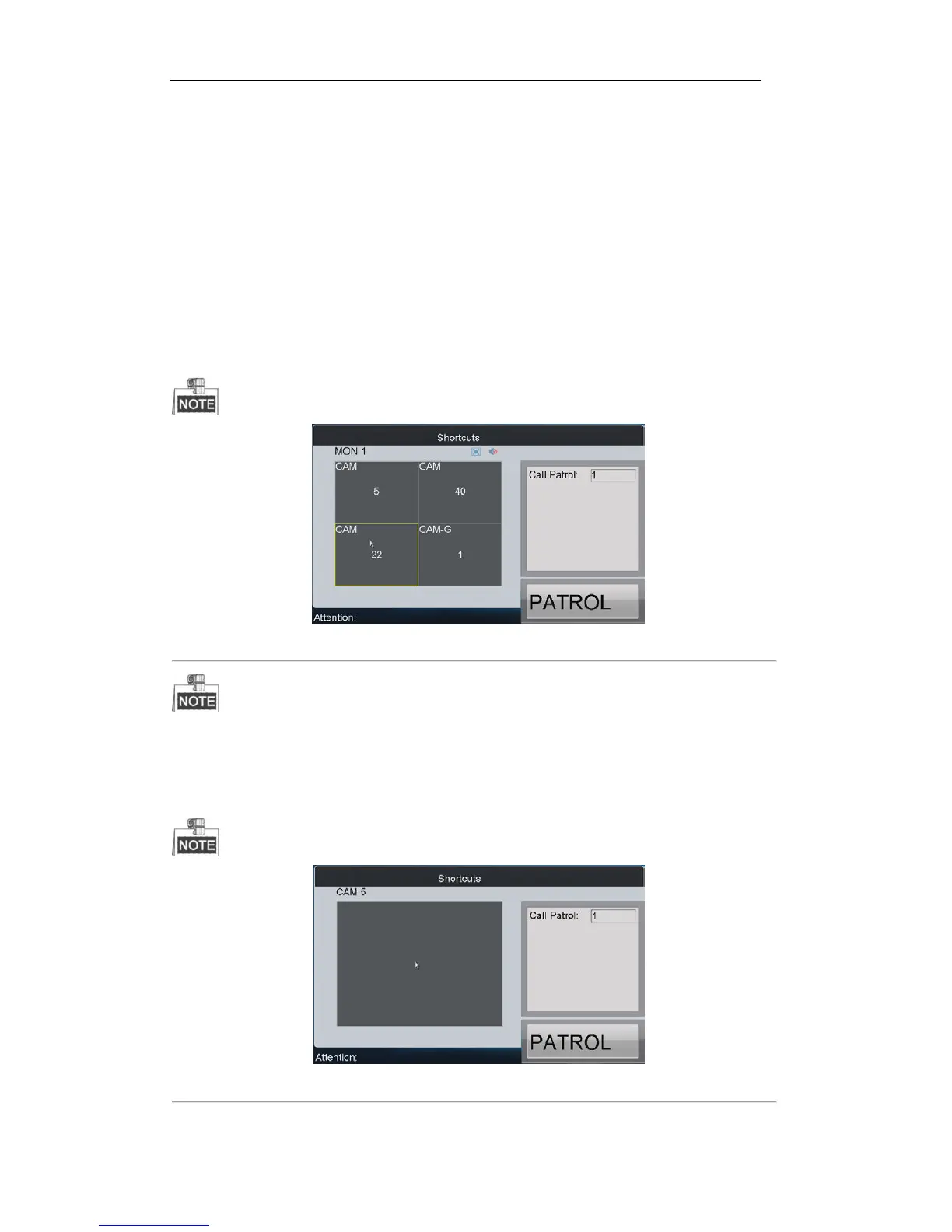

Figure 5. 22 Calling a Patrol by Output Channel
Corresponding error message will appear on the screen when you perform wrong operation.
• Calling a Patrol by Input Channel
Steps:
1. Press the Num + CAM keys to select the input channel.
2. Press the Num + PATROL keys to call the programmed patrol.
It is invalid to input the 0+CAM keys in the current operation mode.
Figure 5. 23 Calling a Patrol by Input Channel

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
