DS-1100KI Network Keyboard User Manual
11
1.3 Appearance
Front View:

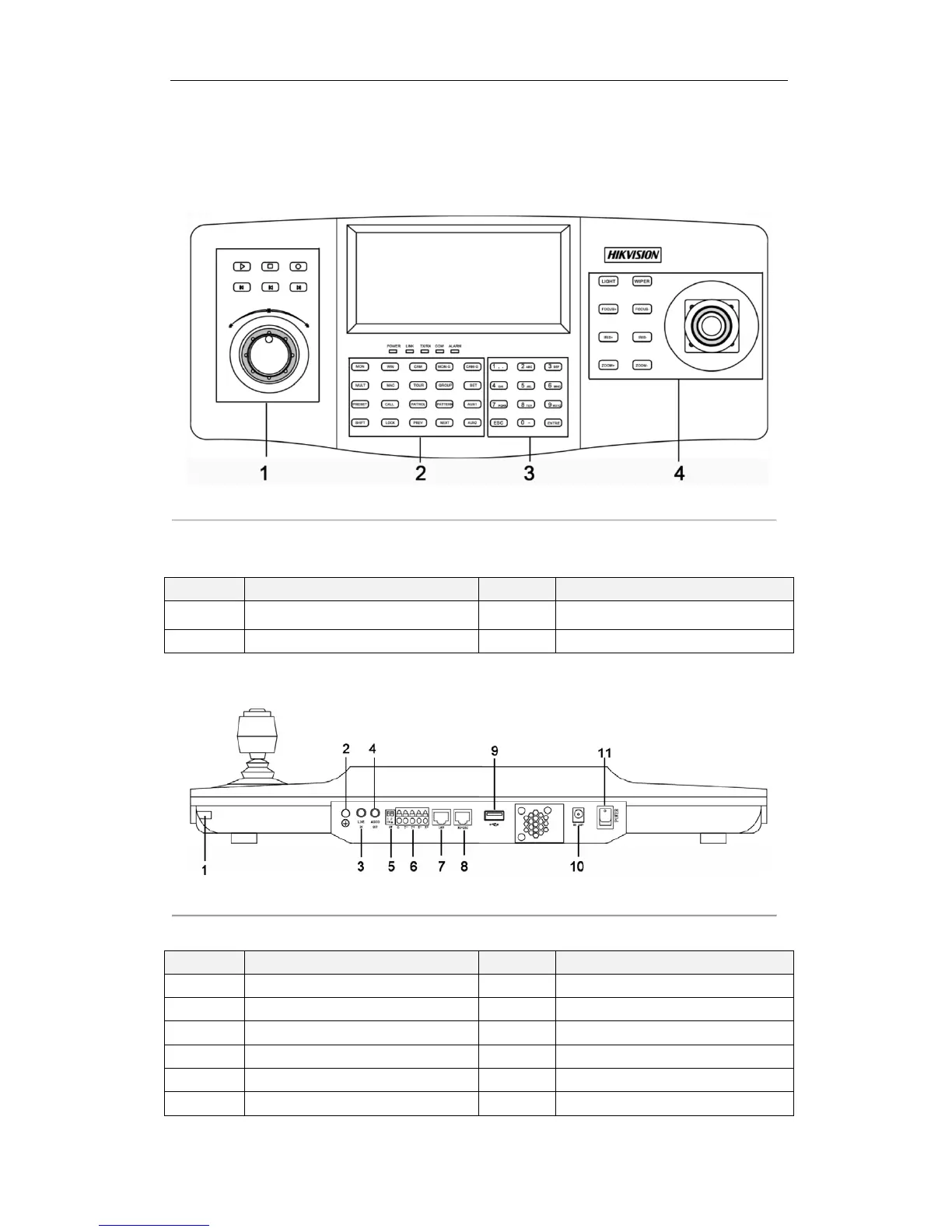

Figure 1. 1 Front View
Table 1. 1 Description of panel
Serial No. Description Serial No. Description
1 Record playback 2 Functional buttons
3 Numeric buttons 4 PTZ control area
Interface Description:
Figure 1. 2 Interface
Table 1. 2 Interface Description
Serial No. Description Serial No. Description
1 Touch pen 2 GND
3 Line In 4 Audio Out
5 Reserved 6 RS-485 Interface
7 LAN 8 RS-232 Interface
9 USB Interface 10 12 VDC Power Supply
11 Power On/Off

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
