DS-1100KI Network Keyboard User Manual
109
6.2.3 Operating Analog Matrix
With successful RS-232 communication between the keyboard and the analog matrix, you can switch the video
input to be displayed on the monitor by following the steps below.
Steps:
1. Press the Num + MON keys to select the output channel of the analog matrix.
2. Press the Num + CAM keys to select the input channel of the analog matrix.

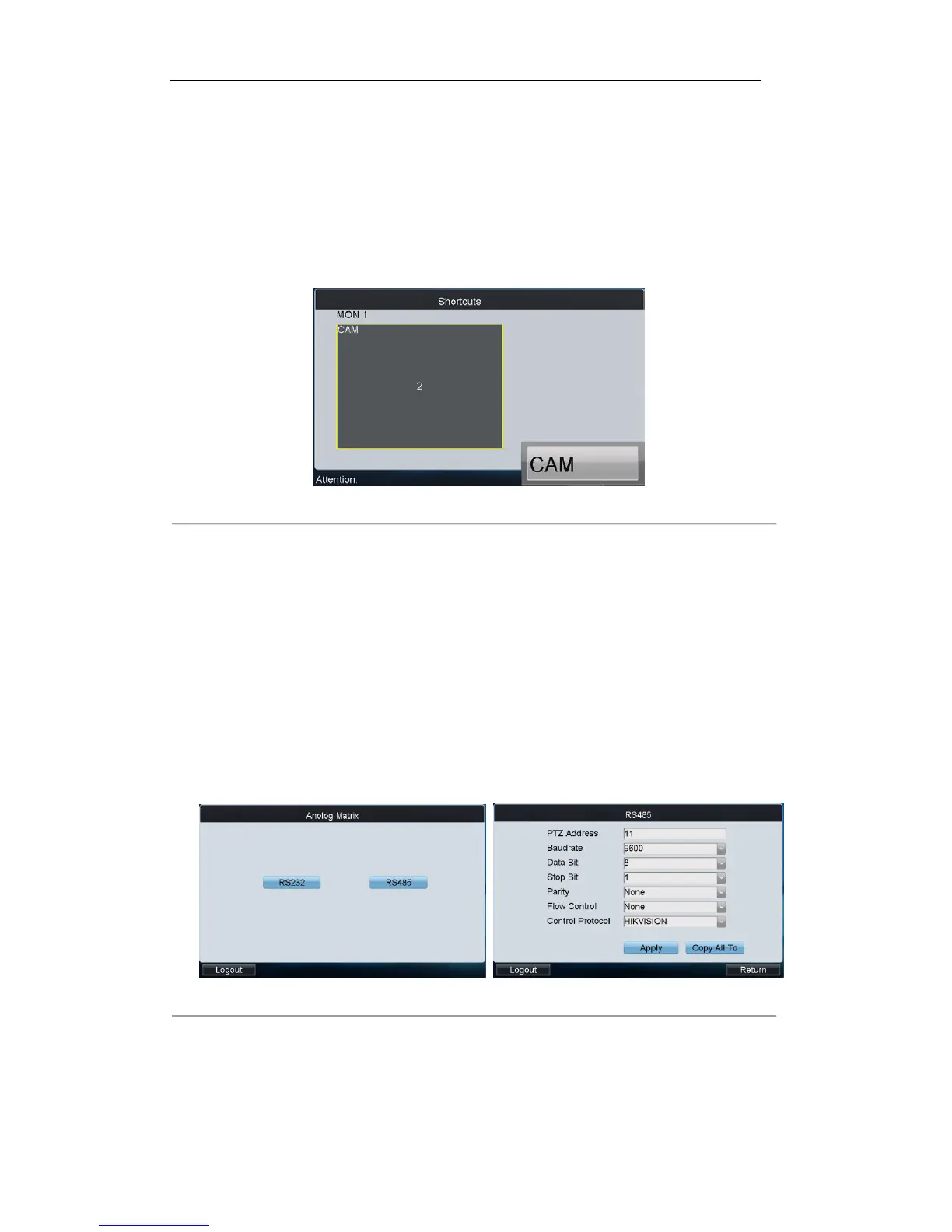

Figure 6. 30 Operating Analog Matrix
6.2.4 Configuring RS-485 Parameters
Purpose:
The RS-485 parameters must be configured the same with that of the connected PTZ camera so as to realize the
PTZ control.
Before you start:
Make sure the R+ and R- terminals of the PTZ camera has been correctly connected to the T+ and T- terminals of
the keyboard.
Steps:
1. Click RS485 on the Analog Matrix to enter the RS485 settings interface.
Figure 6. 31 RS485 Settings Interface
2. Input the address of the connected PTZ camera. The address ranges from 0 to 255.
3. Select the baud rate of the connected PTZ camera.
4. Set the data bit, stop bit, parity and flow control the same with those of the connected PTZ camera.
5. Select the protocol of the connected PTZ camera.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
