HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
146

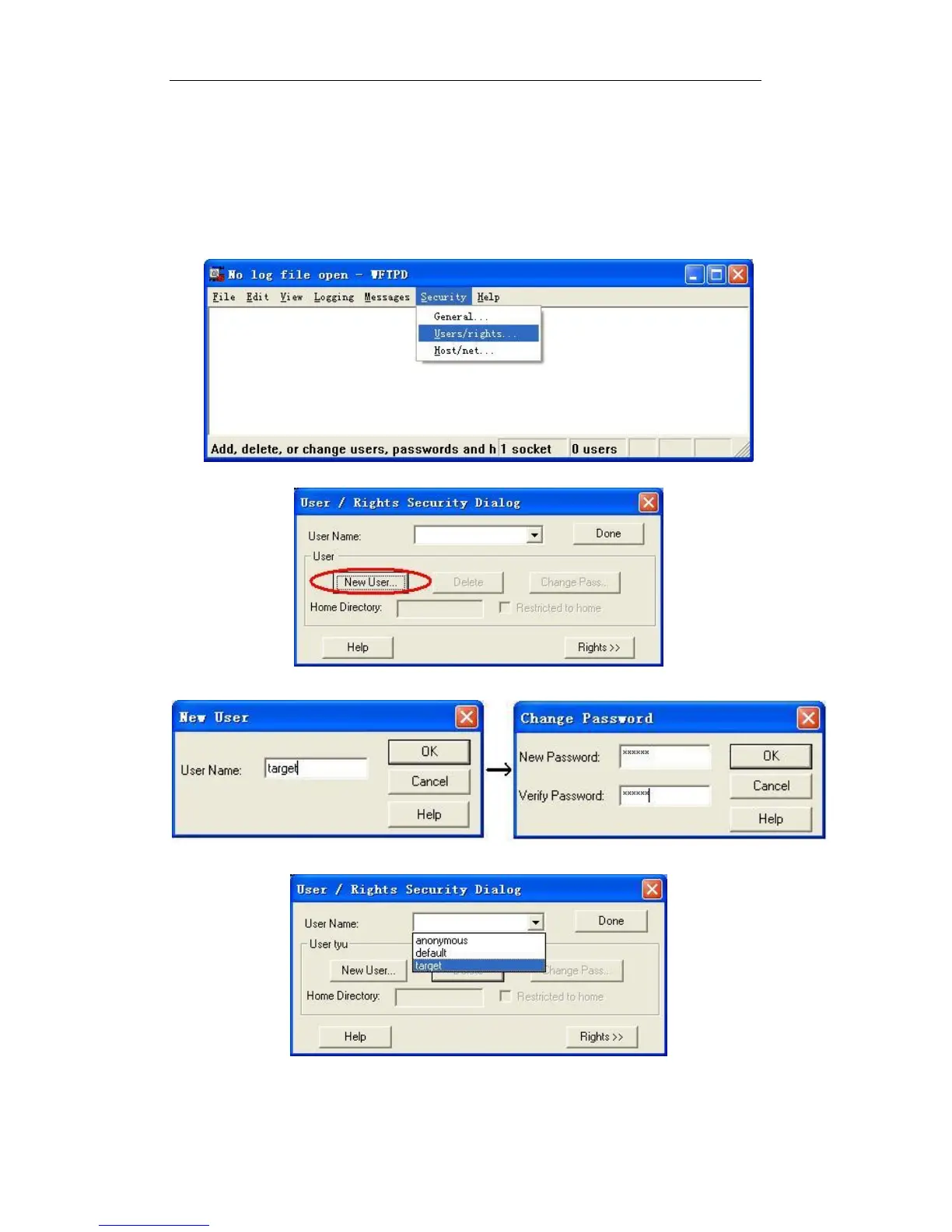

9.2 Upgrade by FTP
Enable the FTP service on PC and operate the following steps:
Steps:
1. Open the wftp software, and then select Security->Users/rights option.
2. Create new user.
3. Input the user name: target, password: target, and then click OK to continue.
4. Select the user name to target.
5. Input the directory of the upgrade file in the text box of Home Directory, and then click Done to start system
upgrading.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
