OPERATOR'S STATION
1-36
Work Mode
IMPORTANT: Before changing the work mode, stop the
machine, lower the working device such as a bucket on
the ground and pull the pilot control shut-off lever to
the LOCK position.

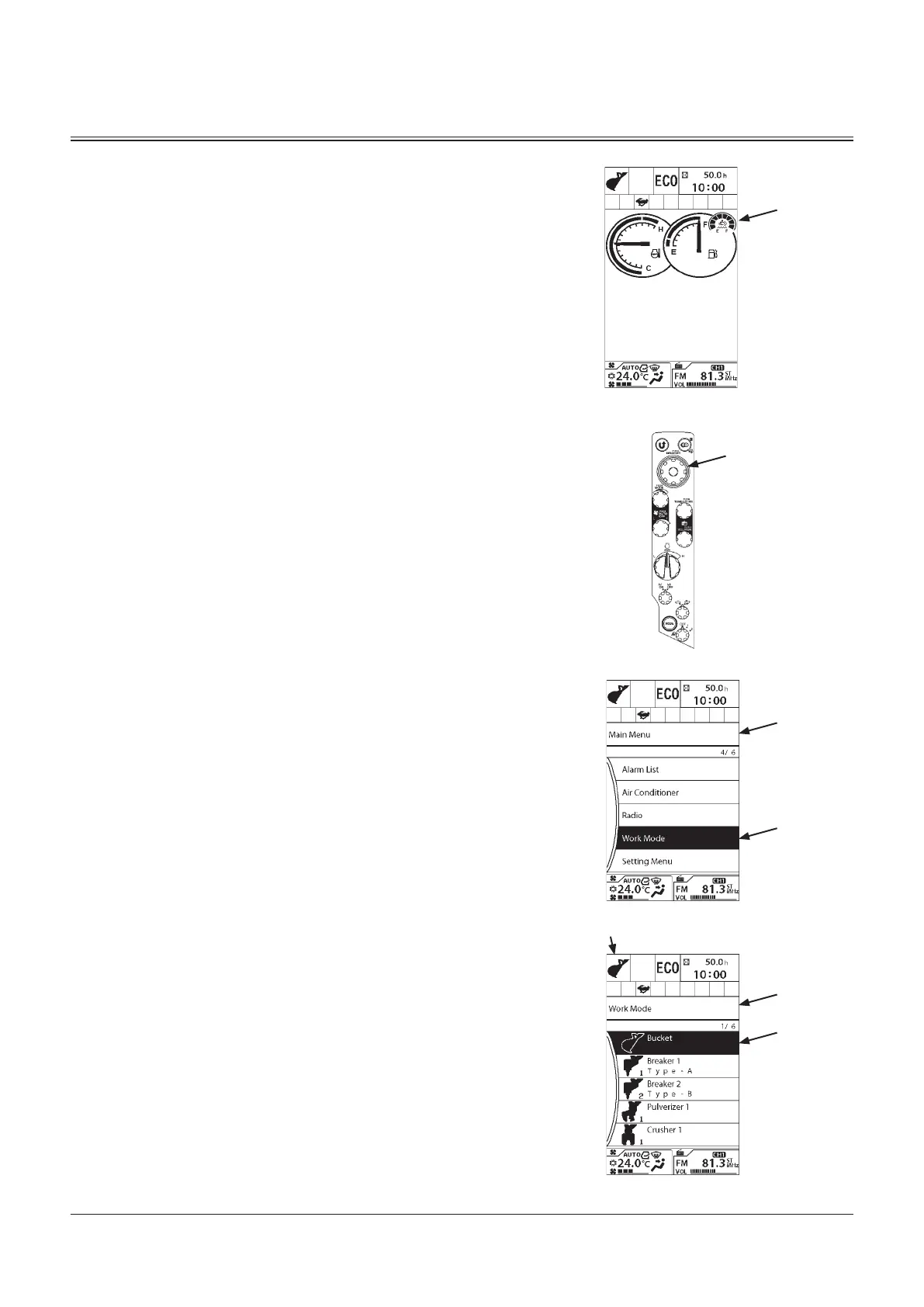

Front attachment is selected in Work Mode screen (5) under
the Work Mode menu in the main menu.
Attachment Selection
1. Push selector knob (2) while displaying Basic Screen (1)
to display Main Menu screen (3).
2. Rotate selector knob (2) to highlight Work Mode (4).
3. Push selector knob (2) to display Work Mode screen (5).
4. Rotate selector knob (2) to highlight the desired front
attachment.
(In the example on the right, Bucket (6) is highlighted.)
5. Push selector knob (2) to enable the changes.
f
NOTE: When the attachment pedal is operated while the
work mode is set to the digging mode, work mode display (7)
on the monitor screen starts flashing.
1
3
4
2
MDCD-01-026
MDAA-01-100EN
MDAA-01-101EN
MDC1-01-001
7
5
6
