OPERATOR'S STATION
1-129
Image Around Machine
2
1
Description of Images
Image Around Machine
The image around the machine is displayed full-screen.
It is a composite of the images from the right, left and rear
cameras.
Image processing is used to compress the images, so a wide
area around the machine can be viewed, including areas
that are in blind spots with a normal rearview mirror.
Objects on the right and left sides of the machine are
combined from the 2 camera images, which may result in
objects overlapping or parts of objects missing.

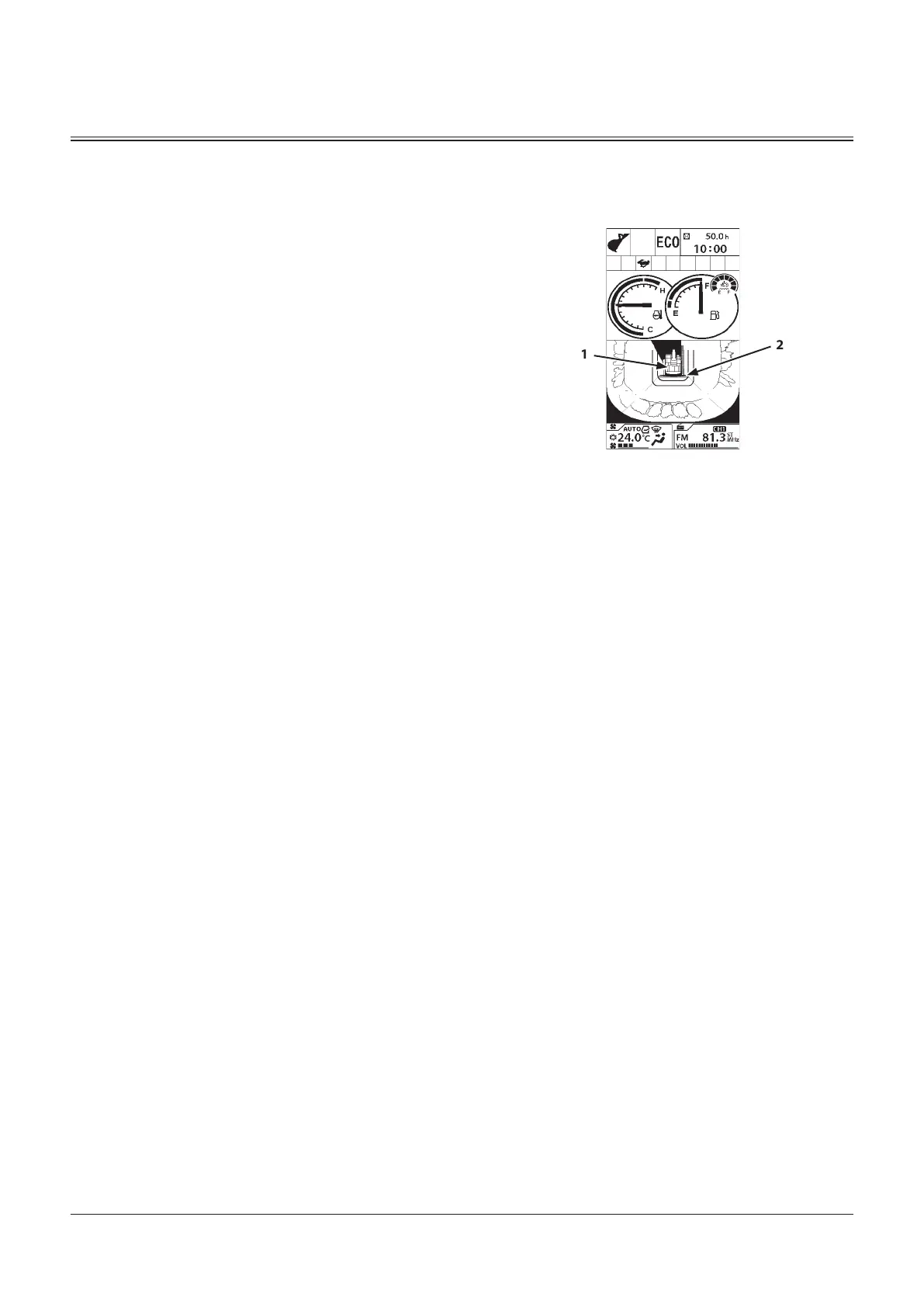

The square image in the center of the image (vehicle icon
(1)) indicates the machine itself.
Guide lines (2) indicate distances from the machine.
The guide lines indicate positions 1 and 2 meters from
the machine. They are a rough guide to the distance of
obstacles.
d
WARNING:
The image around the machine is compressed using
image processing to allow a wide view at a glance,
but care must be used as the sense of distance and
how things appear are different from a normal,
uncompressed image.
As the image around the machine is processed and
combined from multiple camera images, it may
appear different from when looked at with the naked
eye and areas may not appear contiguous, objects
may appear to be collapsing or not appear in the
image at all.
A clear image may not be shown if the area around
the machine is too bright or too dark.
Guide lines are based on the ground being flat. The
distances of guide lines are not accurate on sloping
or rough terrain.
