F. Air Cleaner
Clean and Replace Air Cleaner Element (Outer)
Clean --- every 250 hours or when the restriction
indicator comes ON
Replace --- after cleaning 6 times or after one year
d
CAUTION: When using compressed air pressure (less
than 0.69 MPa (7 kgf/cm
2
)), dust may scatter. Wear
goggles or safety glasses, gloves and face shield.
IMPORTANT: Clean and replace the air cleaner element
by following the procedure below. If the following
procedures are not followed, dirt may enter into the
system and an engine malfunction may result.
Clean and replace the air cleaner element when the
engine is stopped.
Do not remove the inner element when cleaning the
outer element.
Replace the inner element when replacing the outer
element. Do not reuse elements.
Use clean and dried compressed air.
When blowing compressed air, be sure to keep the
air nozzle away from the element to avoid the filter
paper being broken by the pressure of the air.

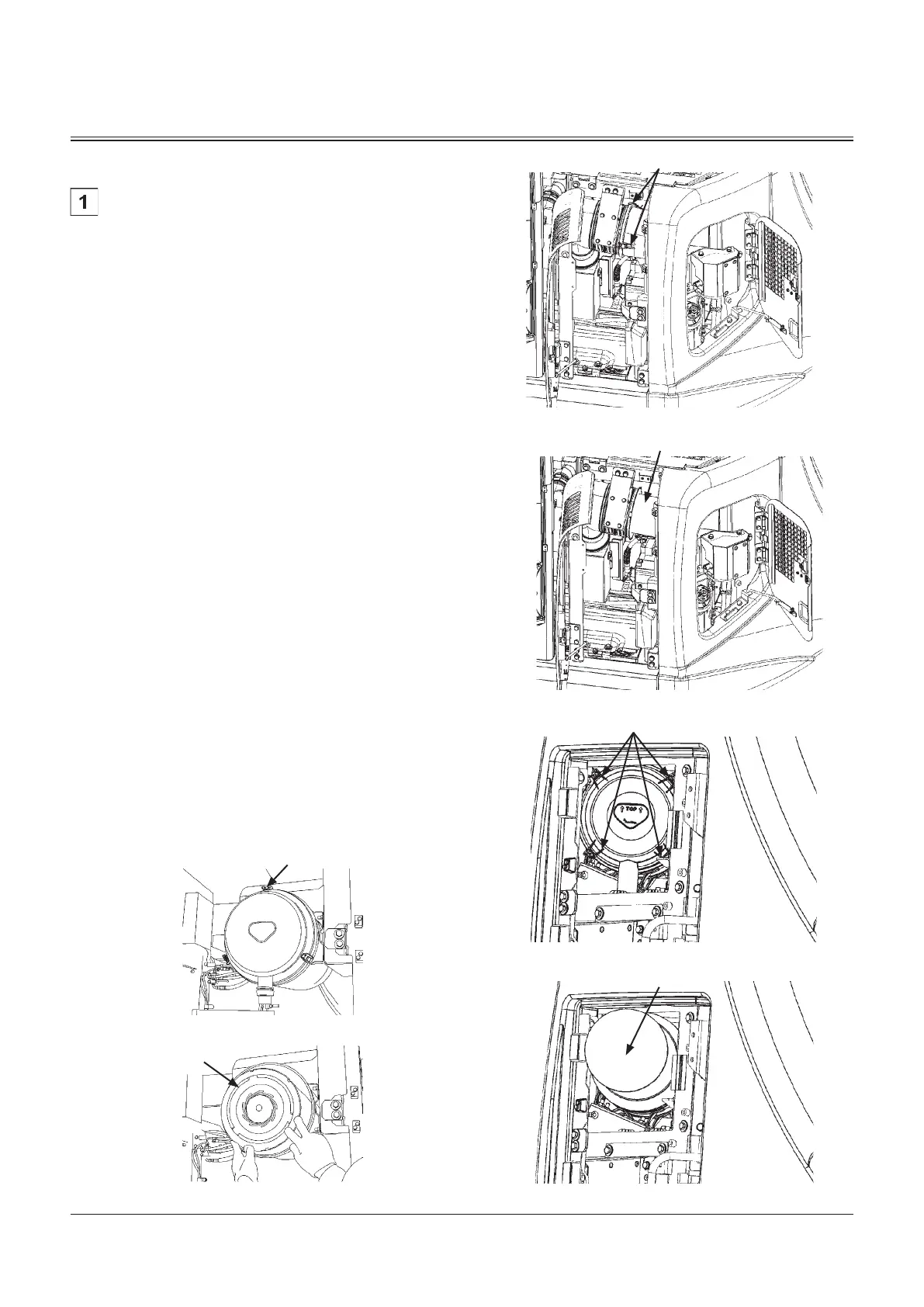

Clean or replace the outer element.
Stop the engine before servicing outer element (1).
1. Remove clamp (2) of the cover. Remove the cover.
Remove any dirt from the case.
2. Remove outer element (1) by holding its edge and slowly
shaking it left to right, up and down while twisting it. Do
not scatter dirt while removing outer element (1).
1
2
MDAT-07-019
MDAT-07-020
MDAT-07-021
MDAT-07-022
ZX135US-6
ZX135US-6
ZX225USLC-6
ZX345USLC-6
ZX345USLC-6
ZX225USLC-6
2
1
1
2
M1U1-07-027
M1U1-07-028
