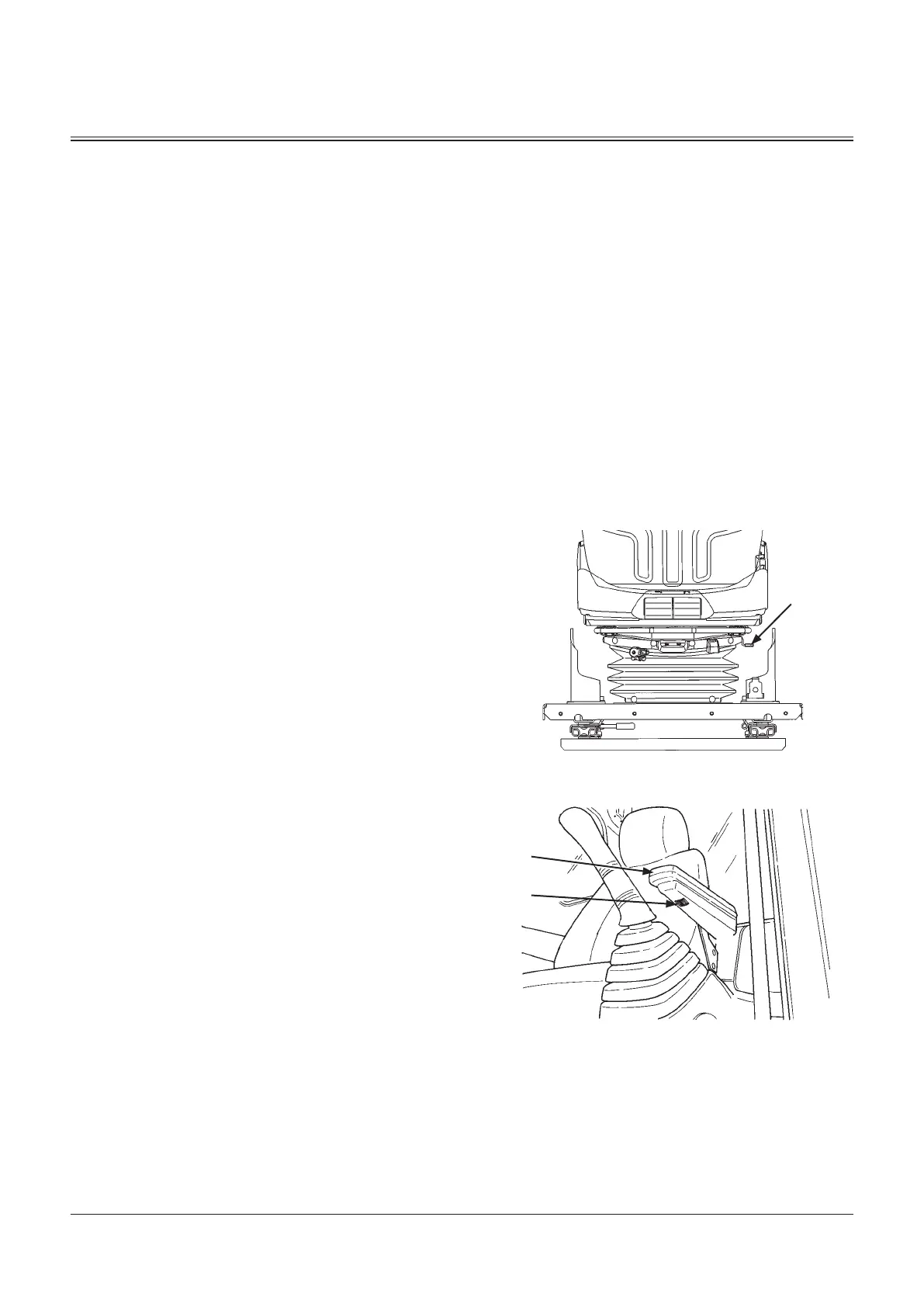

Suspension Adjustment
Rotate knob (5) to adjust the suspension.
Rotate knob (5) clockwise to decrease suspension stiffness.
Rotate knob (5) counterclockwise to increase suspension
stiffness.
Fore-Aft Position Adjustment of Seat Surface
Pull lever (6) upward to adjust the seat angle. Seat and
console fore-aft adjustment range is 60 mm with steps
every 15 mm.
Angle Adjustment of Seat Surface
Pull lever (7) upward to adjust the seat angle. Height of the
seat end is adjustable in 4 steps.
Backrest Adjustment
Pull up lever (8) to release backrest lock. Move backrest to
the desired position. Move backrest to the desired position
and release lever (8).
Armrest Adjustment
Armrest (9) can be pulled upright by hand 90 °. Pull the
armrest upright by hand to get on and off the machine
easily. The angle of armrest (9) can be adjusted to the
desired position by turning adjusting dial (10) located on
the bottom of armrest (9).
9
10
M1G6-01-017
8
