OPERATOR'S STATION
1-142
Emergency Exit
Escape from the cab in emergency in the following methods:
d
CAUTION: The danger of falling is always present
when escaping from the cab in emergency, possibly
resulting in serious personal injury. Escape from the
cab as safely as possible, depending on the position of
the machine and the situation outside.
1. Open the cab door. Escape through the door.
2. If the cab door is difficult to open or use, open the upper
front window. Escape through the window.
f

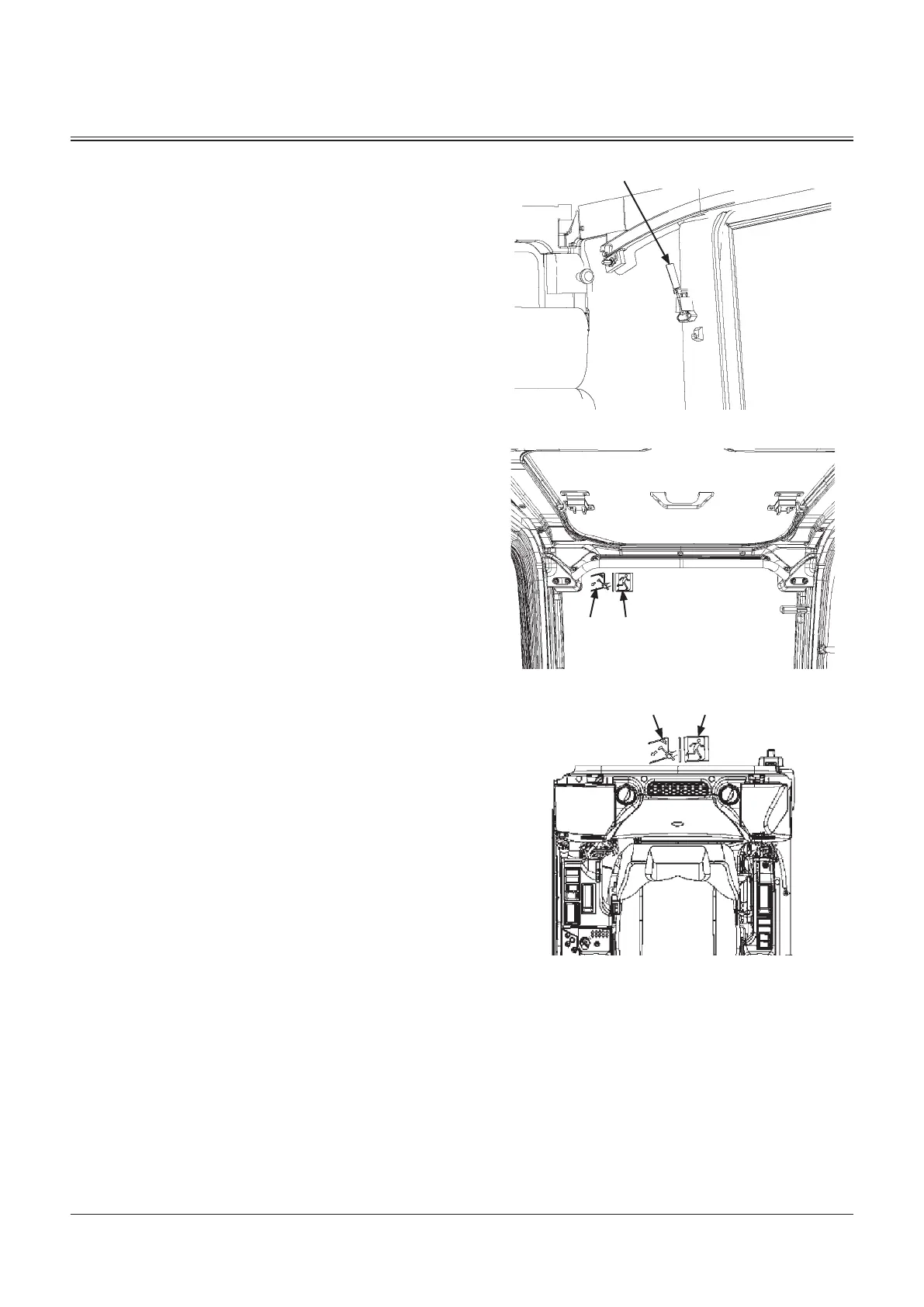

NOTE: Emergency exit decals (2) are affixed to the front and
rear windows. See page "OPENING UPPER FRONT WINDOW"
for the opening method of the upper front window.
d
CAUTION: If decal (3) is affixed to the front
windowpane, the windowpane can be broken.
However if decal (3) is not affixed to the front
windowpane, the glass cannot be broken with
emergency evacuation hammer (1). Take care not to be
injured by pieces of broken glass.
3. If the upper front window is difficult to open, check the
decal (3) affixed to the windowpane.
If decal (3) is affixed to the front windowpane, break the
front windowpane using the emergency evacuation tool
(1) installed on the left side of the cab. Escape through
the broken windowpane.
4. If decal (3) is not affixed to the front windowpane, or if
it is not possible to escape through the front window,
break the rear windowpane using emergency evacuation
hammer (1). Escape through the broken windowpane.
5. If neither of front and rear windows are available for
emergency exit, open the overhead window to escape
from the cab.
1
23
2
3
MDCN-01-017
MDAA-01-321
M1U4-01-012
