OPERATOR'S STATION
1-143

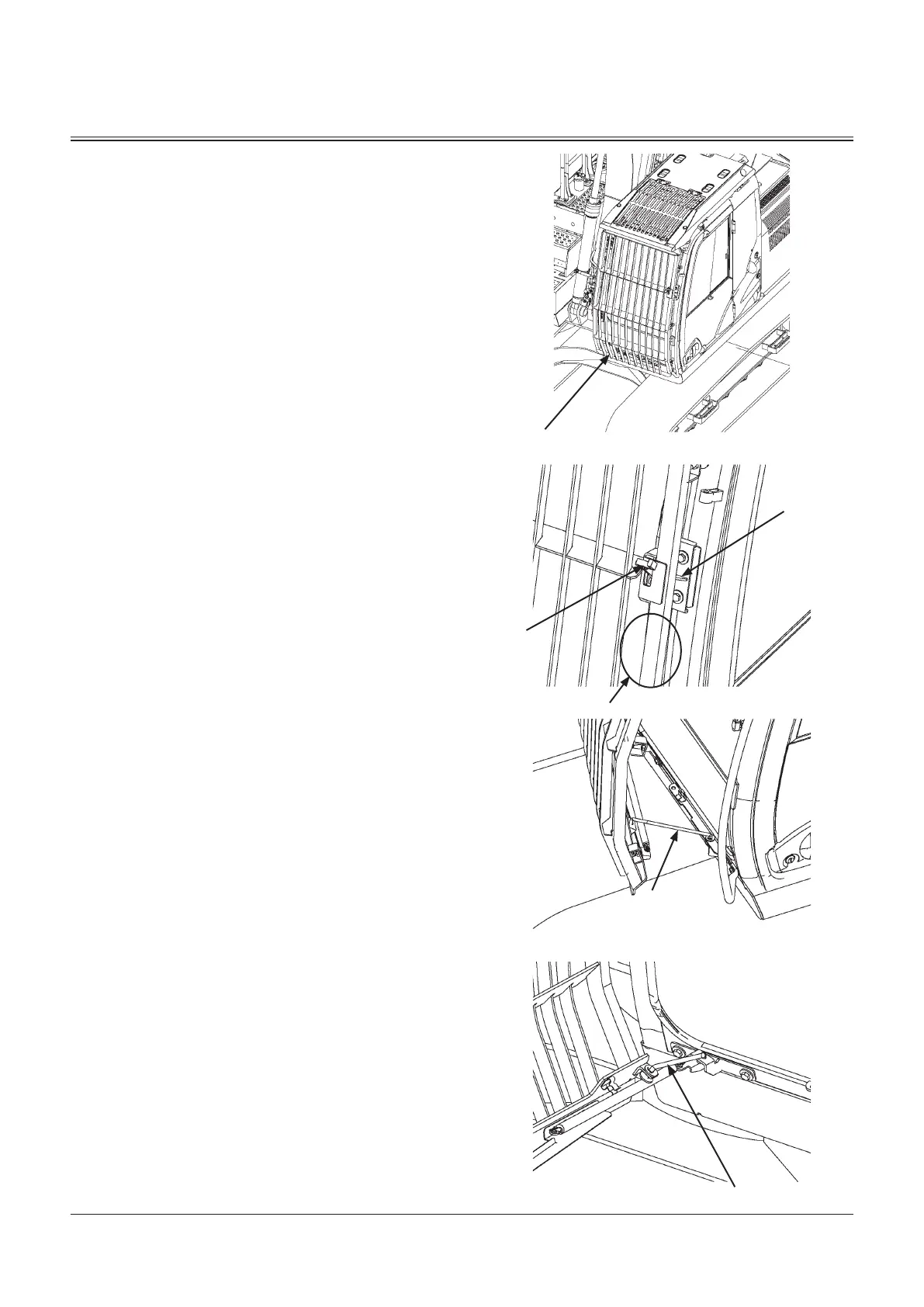

Opening and Closing the OPG Front Guard
(Optional)
d
WARNING:
 Do not release lever (1) when the machine is on a
slope.
The guard may suddenly open.

To open and close the OPG front guard, hold (A).
If holding other parts, there is a risk of your hand
becoming caught.
IMPORTANT: Do not operate the front attachment while
the OPG front guard is open.
The front attachment may interfere with the OPG front
guard, possibly resulting in damage.
When releasing the lock, pull lever (1) down.
When the OPG front guard is slightly open, lock lever (3)
securely on the cab side.
When the OPG is fully open, lock lever (4) securely on the
guard side.
When closing the OPG front guard, hold (A) and close the front
guard until the locking mechanism is properly engaged with
the catch (2).
1
2
MDC1-07-088
MDC1-07-089
MDC1-07-090
MDC1-07-091
3
4
OPG Front Guard
A
