Hitachi ZAXIS 135US-6 class User Manual

13-16
OPTIONAL ATTACHMENTS AND DEVICES
BLADE

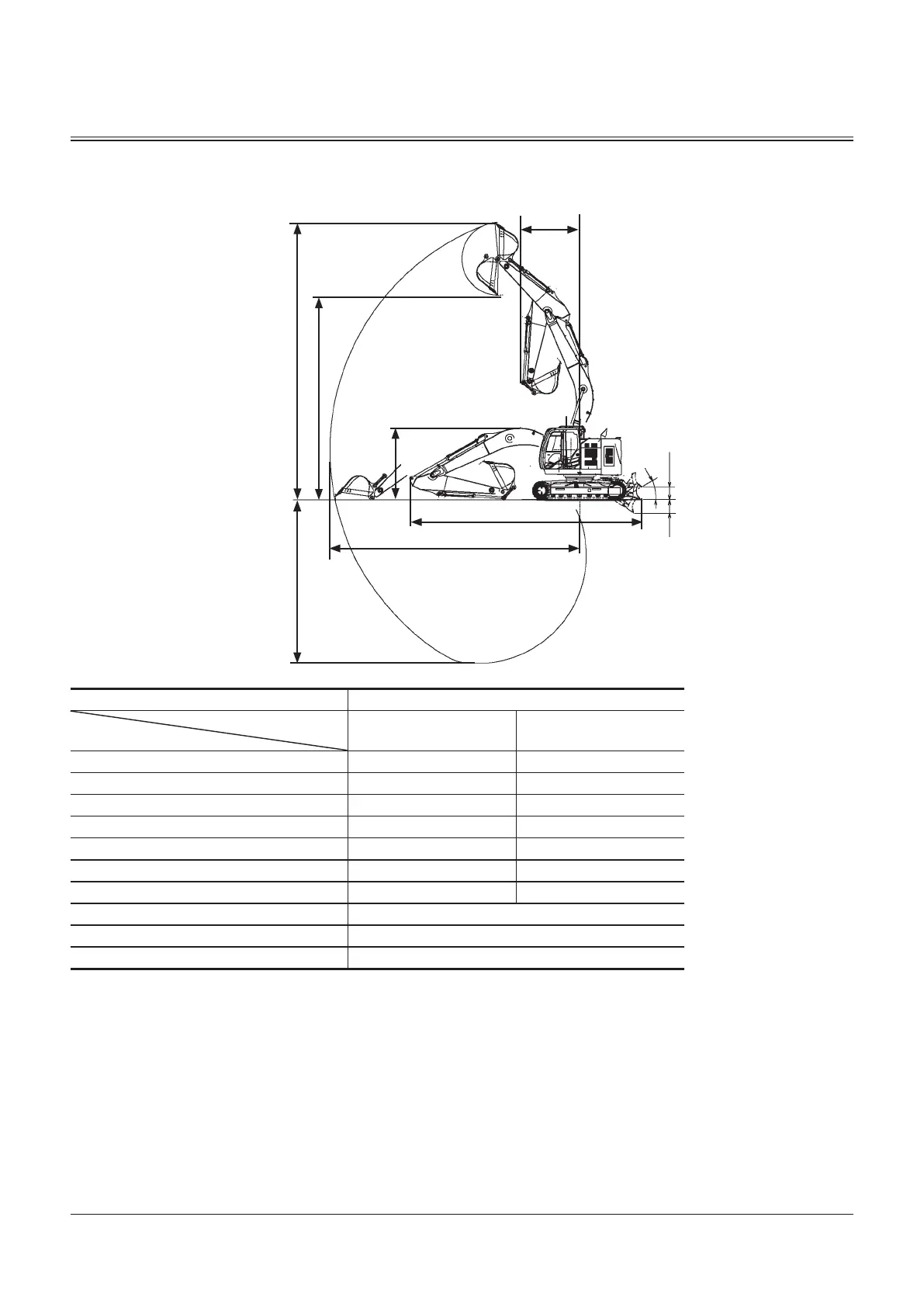

Working Ranges (Grouser shoe)
ZX225USLC-6 with Blade
Model ZX225USLC-6 with Blade
Category
Item
2.42 m Arm 2.91 m Arm
A: Maximum Digging Reach mm 9620 10110
B: Maximum Digging Depth mm 6120 6620
C: Maximum Cutting Height mm 10790 11230
D: Maximum Dumping Height mm 7870 8290
E: Overall Height mm 3230 2980
F: Overall Length mm 9270 9110
G: Minimum Swing Radius mm 2720 2380
H:
Max. Raising Height mm
570
I:
Max. Digging Depth mm
300
J:
Blade Angle degree
25
f
NOTE: The dimensions do not include height of the shoe lug (except Item E).
G
C
D
E
F
J
H
I
A
B
MDCN-13-015
