OPTIONAL ATTACHMENTS AND DEVICES
BLADE

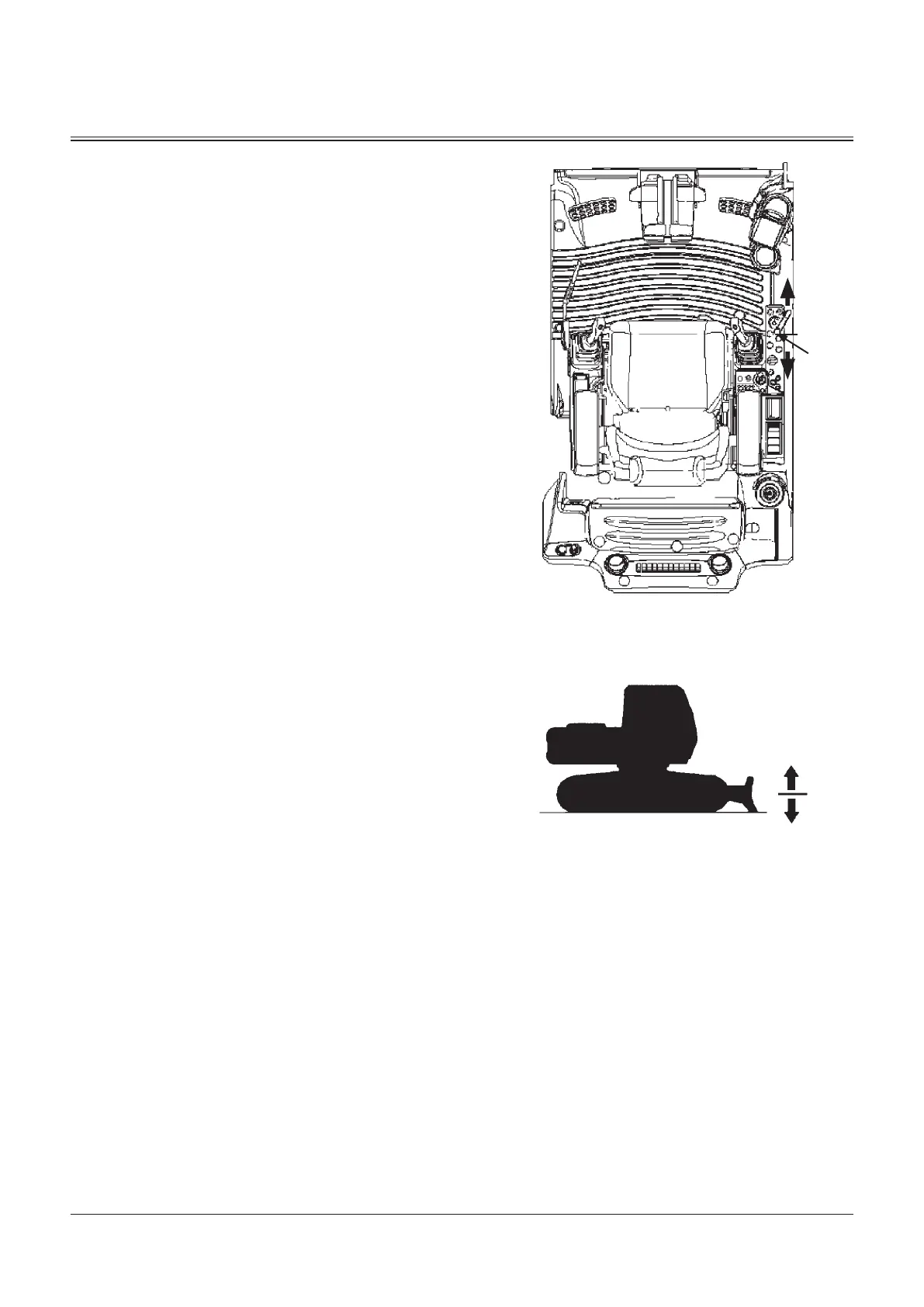

Blade Lever
ZX135US-6, 225USLC-6
Use blade lever (1) on the operator’s right to raise and lower
the blade.
When the lever is released, it automatically returns to
neutral, keeping the blade in its position until the lever is
operated again.
1- Blade Lever
2- Blade Raise
3- Neutral
4- Blade Lower
Precautions for Blade Operation
This blade is designed as a light service attachment for the
hydraulic excavator. Please keep the following points in
mind:
1. This blade is designed to be used for dozing work only.
Do not attempt to dig deeply with the blade. Doing so
will damage not only the blade but the undercarriage as
well.
2. Do not apply intensive or uneven loads. Never apply
high-speed impact to the blade by running the machine
into a load.
3. Jacking up the machine with this blade, the surface
beneath the blade comes under high pressure,
increasing the risk of surface collapse.
Always be sure that the surface is strong enough to
support the weight of the machine during operation.
Avoid dangerously uneven distribution of weight on the
blade by maintaining even contact between the blade
and the ground.
4. Never use this blade as an outrigger.
5. Avoid contact between the bucket and the blade while
digging.
4
4
2
3
2
1
M155-14-008
MDAA-13-001
