OPERATOR'S STATION
1-160

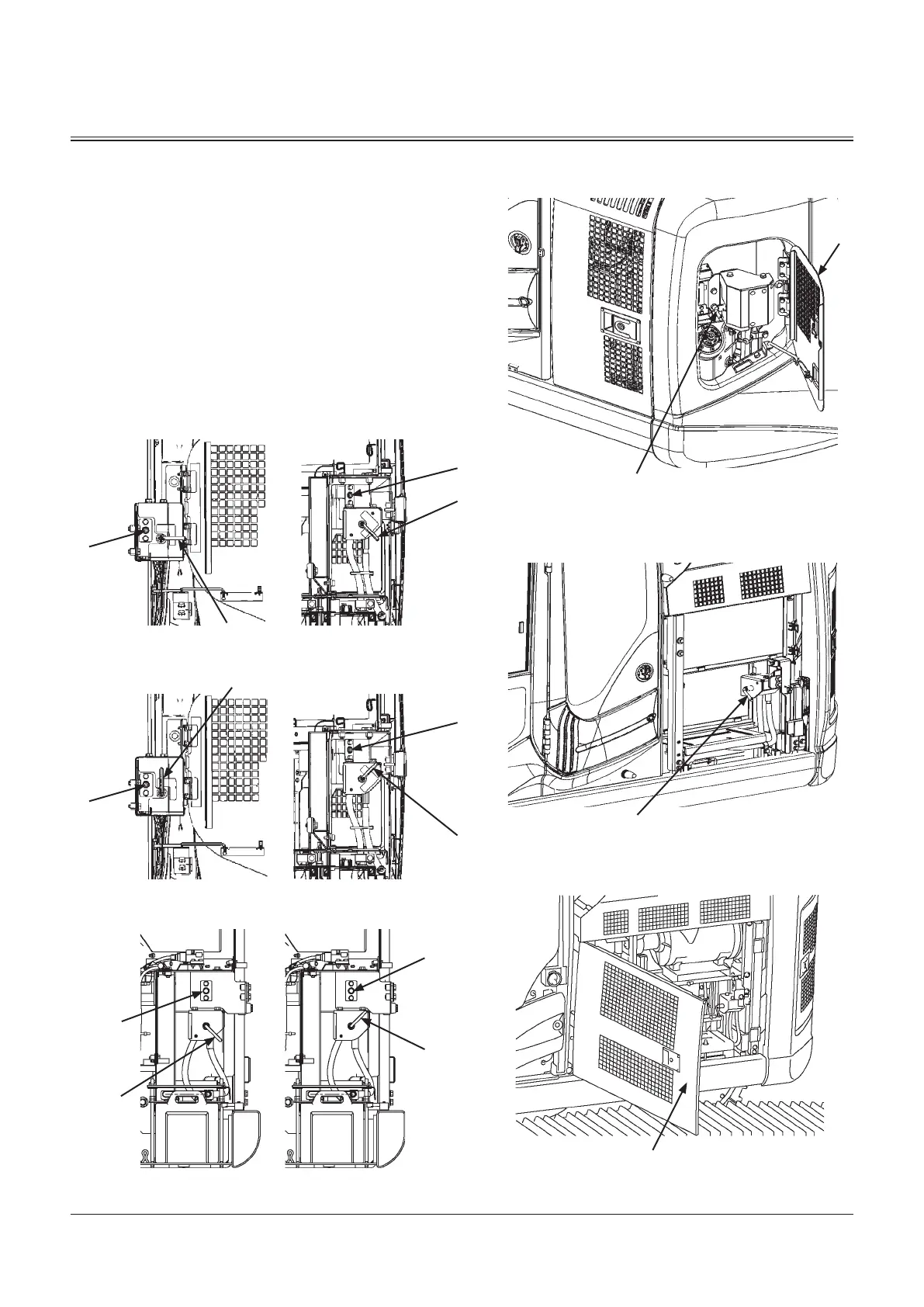

Switch Operation
1. Open cover (1).
When lever (3) is in the horizontal position, the battery
disconnect switch is ON. When lever (3) is in the
horizontal position, lever (3) can not be removed.
2. Check that lamp (2) is not lit. Lamp (2) goes off 5 minutes
after the key switch is turned to OFF.
3. When lever (3) is turned counterclockwise to the vertical
position, the battery disconnect switch turns OFF. Lever
(3) can be removed from the battery disconnect switch
when it is in the OFF position.
f
NOTE: Some models are not equipped with lamp (2).
ON
ZX135US-6
OFF
ZX135US-6
ZX135US-6
ZX225USLC-6
MDAT-01-273
MDAT-01-004
MDAT-01-003
ON
ZX225USLC-6
OFF
ZX225USLC-6
2
2
2
2
3
3
3
3
3
1
3
MDAT-01-264
MDAT-01-265
1
MDD5-01-010
ZX345USLC-6
ZX345USLC-6
ON OFF
3
3
2
2
