OPERATOR'S STATION
1-138

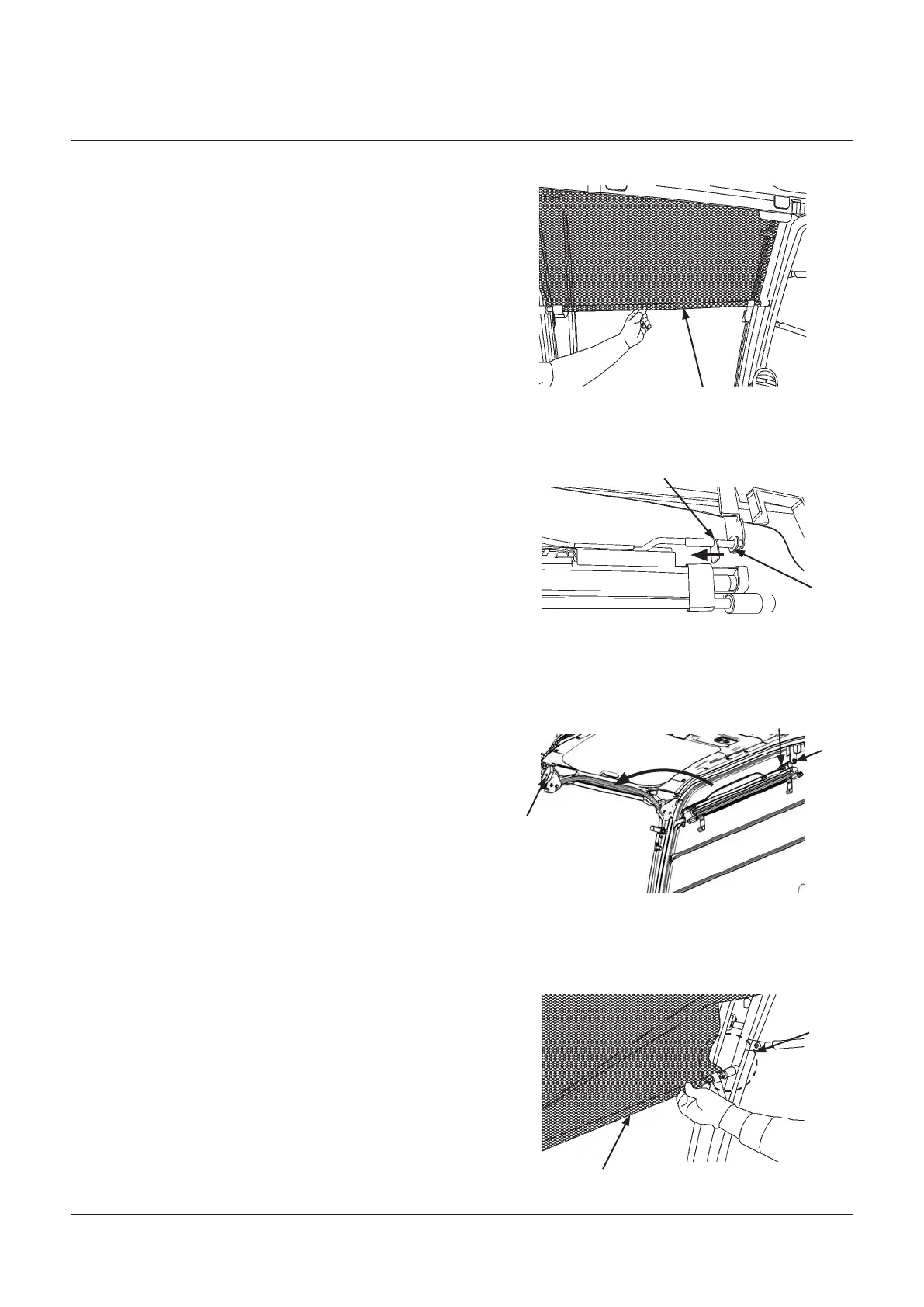

Opening and Closing the Roll Screen (for Front
and Right Windows) (Optional)
To provide shade and ensure good visibility for the operator,
roll screens are fitted.
Roll screens are a fitted to the front window and window on
the right side to provide shade.
d
WARNING:
Ensure the pilot control shut-off lever is in the LOCK
position when operating the roll screen.
The machine may unexpectedly move if the work
lever or pedal are mistakenly touched.
Set the bottom of the roll screen (bar(1)) to an
appropriate position that does not impede vision.
IMPORTANT:
Hold the center of the bar (1) when using the screen.
If the center is not held, the screen may snag on
surrounding parts or belongings and cause injury.
Do not pull strongly on the screen as this may
damage or break it.
When opening or closing the front window, store the
roll screen on the right window side.
How to Use on the Front Window
1. When the roll screen is secure on the right window
side, use the procedure below to move it over the front
window.
Secure by sliding lock pin (2) to the left to remove it from
receiving part (3), rotating it to the front window side
and inserting lock pin (2) into receiving part (4).
Ensure lock pin (2) is securely inserted into receiving part
(4).
2. Pull the screen down, tilt bar (1) and fit the end into rail
(5).
MDFY-01-074
MDFY-01-072
MDFY-01-066
MDFY-01-067
2
2
1
4
3
3
5
1
To Next Page
