DRIVING THE MACHINE
4-5
Retrieval
d
CAUTION: Cables, straps, or ropes can break causing
serious injury. Do not tow the machine with damaged
chains, frayed cables, slings, straps, or wire ropes.
Always wear gloves when handling cable, straps or
wire ropes.

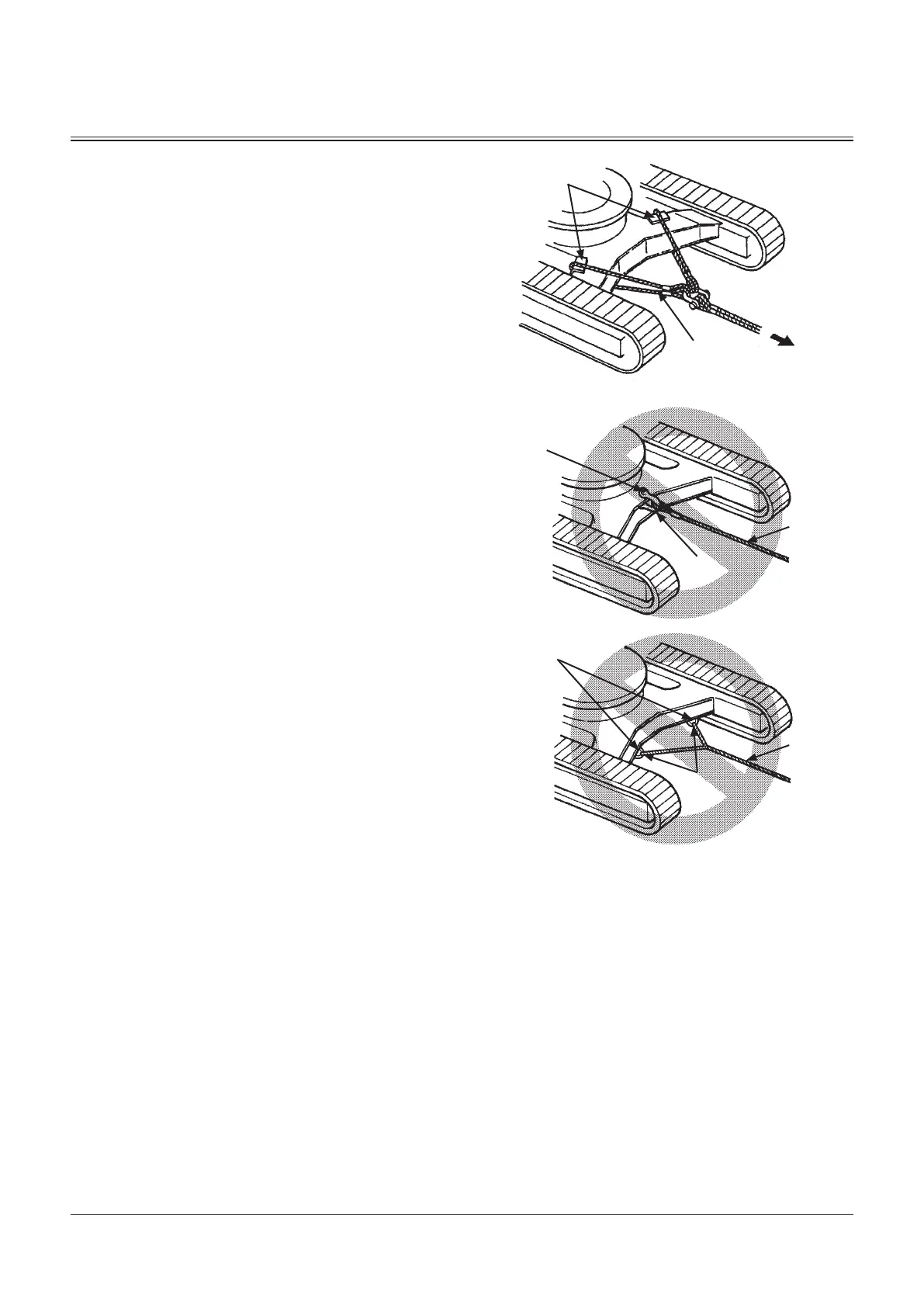

When it becomes unable to evacuate from soften ground by
machine itself, retrieve the machine with another machine by
attaching the wire rope as shown. Be sure to attach the wire
ropes around the track frames of both machines as shown.
To prevent the wire ropes from being damaged, place
protective material between the track frame and the wire
ropes.
IMPORTANT:
Track frame has two shackle holes; The center
shackle hole on the track frame is provided to pull
lightweight objects. The shackle holes on the bottom
of the track frame are used to secure the machine for
transportation.
Do not use these shackle holes on the track frame for
retrieval the machine. This may damage the holes.
Refer to the instructions on page 5-23 for using the
center shackle hole appropriately.
Shackle hole
for towing
lightweight
objects.
Tie down
brackets for
transporting.
Soft Protector
Shackle
Shackle
Wire Rope
Wire Rope
Wire Rope
M104-05-010
MZX5-04-004
MZX5-04-005
To Next Page
