OPERATOR'S STATION
1-144
34
Adjusting Operator's Seat
d
WARNING: Adjust the seat only after lowering the
front attachment on the ground and pulling up the
pilot control shutoff lever to the LOCK position. Failure
to do so has the risk of operator’s part of body touch
the control lever or pedal by mistake, allowing the
machine to move unexpectedly, which may result in
personal injury or death.
d
CAUTION: Avoid possible injury while operating
height/tilt lever (1). When pushing down lever (1), do
not grab it. Fingers may be pinched between lever (1)
and the seat stand. Be sure to push on the upper face
of lever (1) by your palm.

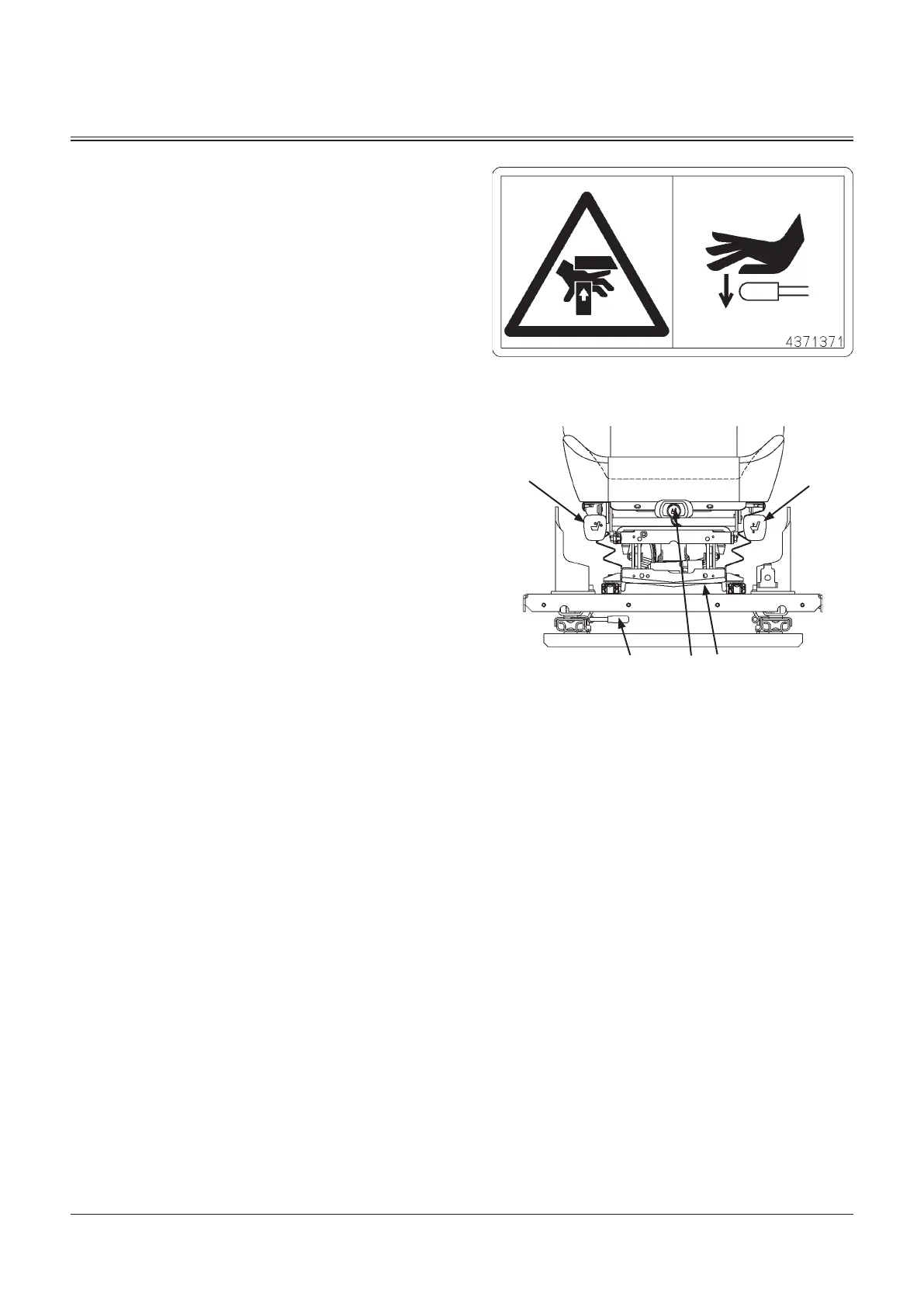

Seat Height and Angle Adjustment
Seat height adjustment range is 60 mm with steps every 15
mm (5 positions in total).
Push down lever (1): to adjust front part of the seat.
Pull up lever (1): to adjust rear part of the seat.
Console and Seat Fore-aft Adjustment
Operate console and seat slide lever (2) to adjust the seat
and both right and left consoles to desired distance from
the travel pedals and levers. Seat and console fore-aft
adjustment range is 160 mm with steps every 20 mm.
Seat Fore-Aft Adjustment
Operate seat slide lever (3) to adjust the seat to desired
distance from the travel pedals and levers. Seat and console
fore-aft adjustment range is 200 mm with steps every 10
mm.
Suspension Adjustment
IMPORTANT: The seat is supported by the air suspension
system. Turn the key switch ON to supply air from the
compressor.
Push and pull knob (4) to adjust the suspension. Pull the
knob forward to release air, which makes it soft. Push the
knob backward to fill air, which makes it hard.
1
5
2
MDAA-01-332
SS4371371-3
