5-1
OPERATING THE MACHINE
Control Lever (ISO Pattern)
d
WARNING:
Never extend any part of body beyond window bars
or frame, as it could be crushed, if boom control lever
is accidentally bumped or otherwise engaged.
Never remove the window sash bar.
Make sure you know the location and function of
each control before operating.
Do not change the operation pattern of the control
lever. Failure to do so may result in mistaken
operation of the machine.

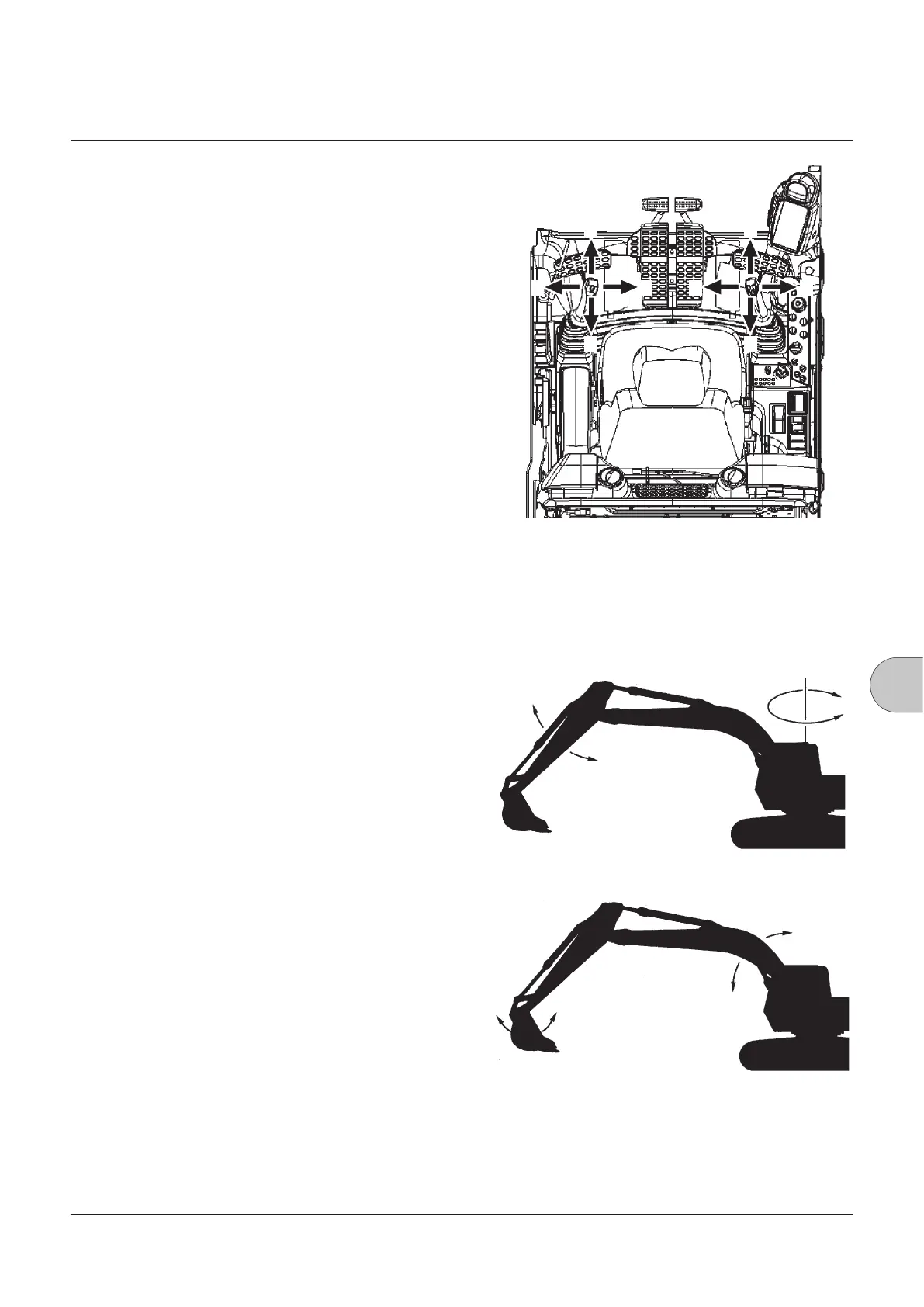

A label showing the control patterns of the levers and pedals is
attached on the right side in the cab.
When a lever is released, it will automatically return to neutral,
and that machine function will stop.
1- Arm Roll-Out
2- Arm Roll-In
3- Swing Right
4- Swing Left
5- Boom Lower
6- Boom Raise
7- Bucket Roll-In
8- Bucket Roll-Out
M104-05-001
M104-05-002
3
6
1
4
5
8
7
2
MDCN-01-002
83 74
51
62
