Hitachi ZAXIS 135US-6 class User Manual

13-19
OPTIONAL ATTACHMENTS AND DEVICES
BUCKET TEETH
MDAA-01-343
M1U1-01-117M178-05-013
2
1
H
M
Y
K

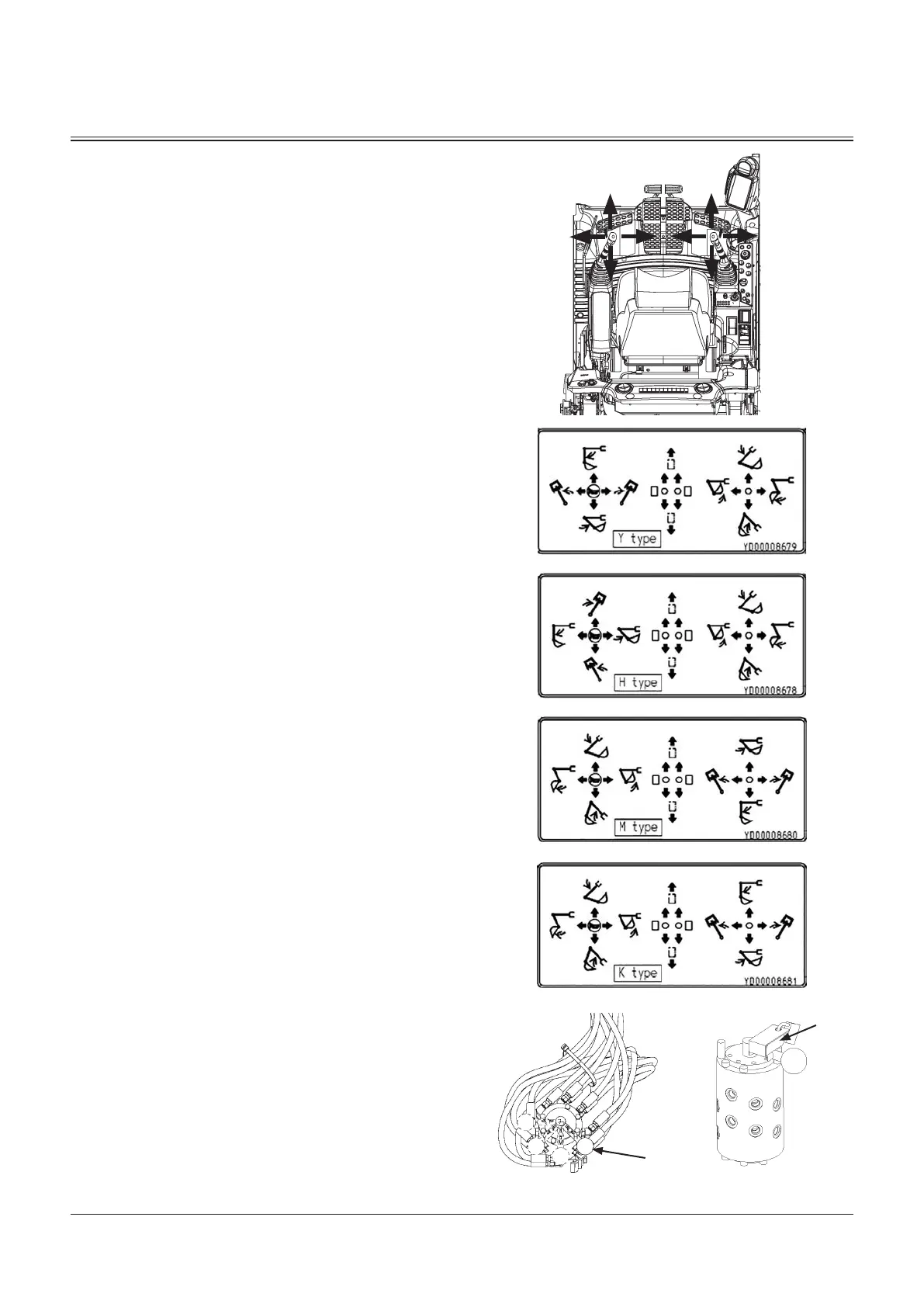

Control Lever (4 Way Multi Valve) (Optional)
The control lever operation pattern is selected to one of four
patterns, Y-type (ISO pattern), H-type (Hitachi pattern), M-type
and K-type by shifting selector valve (1).
d
WARNING: To prevent a serious accident or personal
injury and/or death from occurring due to erratic
machine movement, follow the instructions below.

Appoint a coordinator responsible to selection of the
multi control lever operation pattern.

Attach a lock (2) to selector valve (1). Prohibit that
no personnel other than the coordinator change the
control lever operation pattern.

After changing the control lever operation pattern,
check that the direction of the machine movement
agrees with the control lever operation pattern
described on the operation instruction decal. Be sure
to change the operation instruction decal to that
matching the new machine control lever operation
pattern. The control lever operation pattern decal
is affixed on the right side of the operator’ seat as
illustrated to the right.

Never attempt to change the control lever operation
pattern without stopping the engine. The machine
may be unexpectedly moved, possibly resulting in
personal injury or death. Whenever changing the
control lever operation pattern, lower bucket to the
ground, stop the engine. Then, rotate selector valve
(1) to the desired control lever operation pattern
position and lock the valve up.

After changing the control lever operation pattern,
make it rule for the coordinator to instruct the
operator the new control lever operation pattern.

Rule that the coordinator is responsible to retain and
stow the key for selector valve lock (2).

Never place any part of body beyond window frame.
It could be crushed by the boom if boom control
lever is accidentally bumped or otherwise engaged.
If window is missing or broken, replace immediately.
Prevent possible injury from unexpected machine
movement.
Make sure you know the location and function of
each control before operating.
When a lever is released, it will automatically return to neutral,
and that machine function will stop.
SSYD00008679
SSYD00008678
SSYD00008680
SSYD00008681
