OPERATING THE MACHINE
5-18

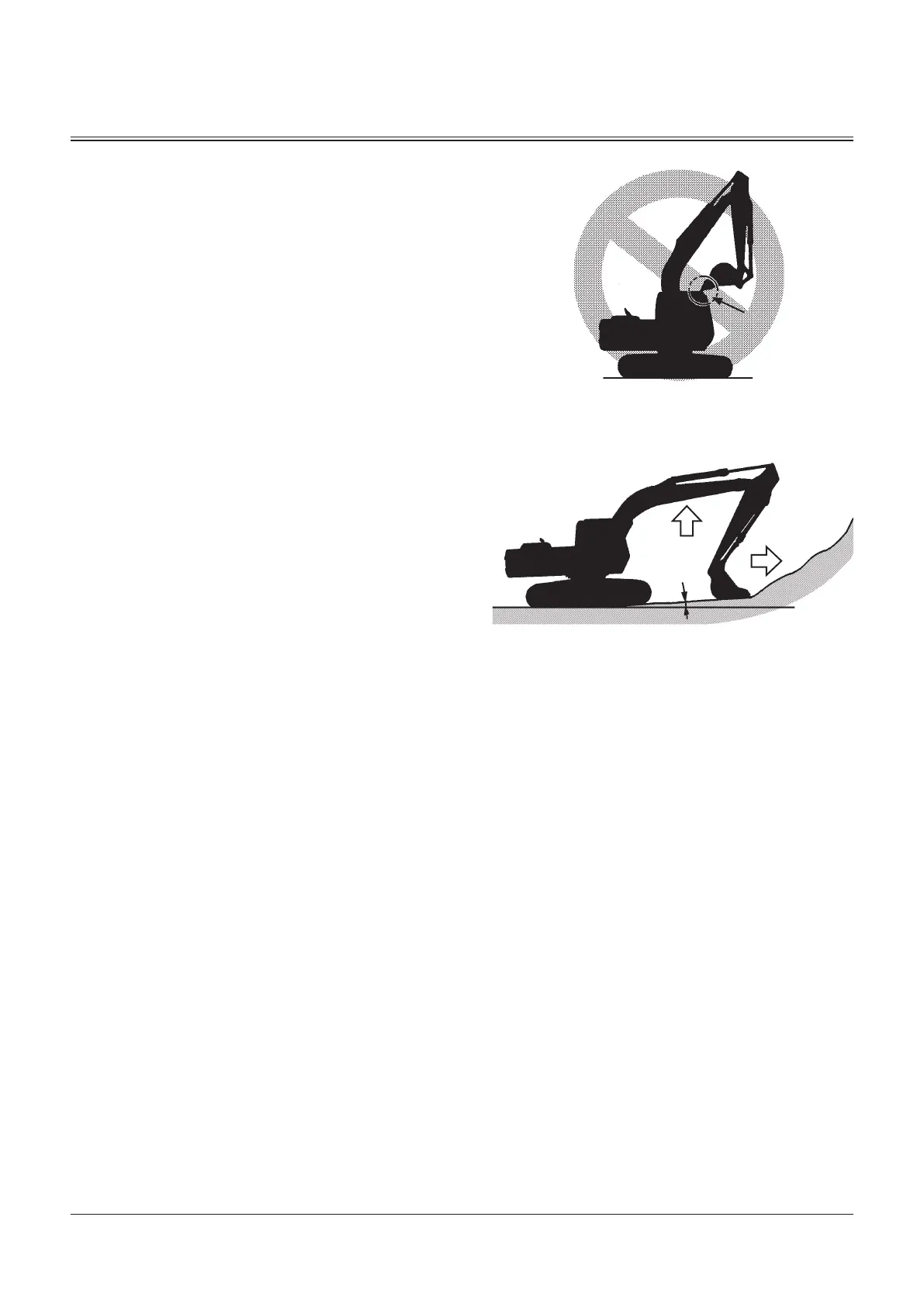

Watch out!
(Take care not to hit
the cab with bucket)
Shovel
Backhoe operation digs the ground using the bucket in a roll-
in motion. Face shovel operation digs the ground using the
arm cylinder in a scraping motion.
d
WARNING: Take care not to hit the cab when rolling in
the arm with a reversed-installed bucket.
IMPORTANT: If a bucket hook is mounted, take care
not to hit the arm with the hook when rolling in the
bucket.

For face shovel operation, dig the ground using the arm
cylinder in a scraping motion.
 When underground water is expected, make a slope
angle of 2 to 3° to drain this water as shown.
f
NOTE: Because of the hydraulic cylinder structure, digging
force of the face shovel operation is smaller than for backhoe
operation.
2 to 3 °
M104-05-020
MZX5-05-003
