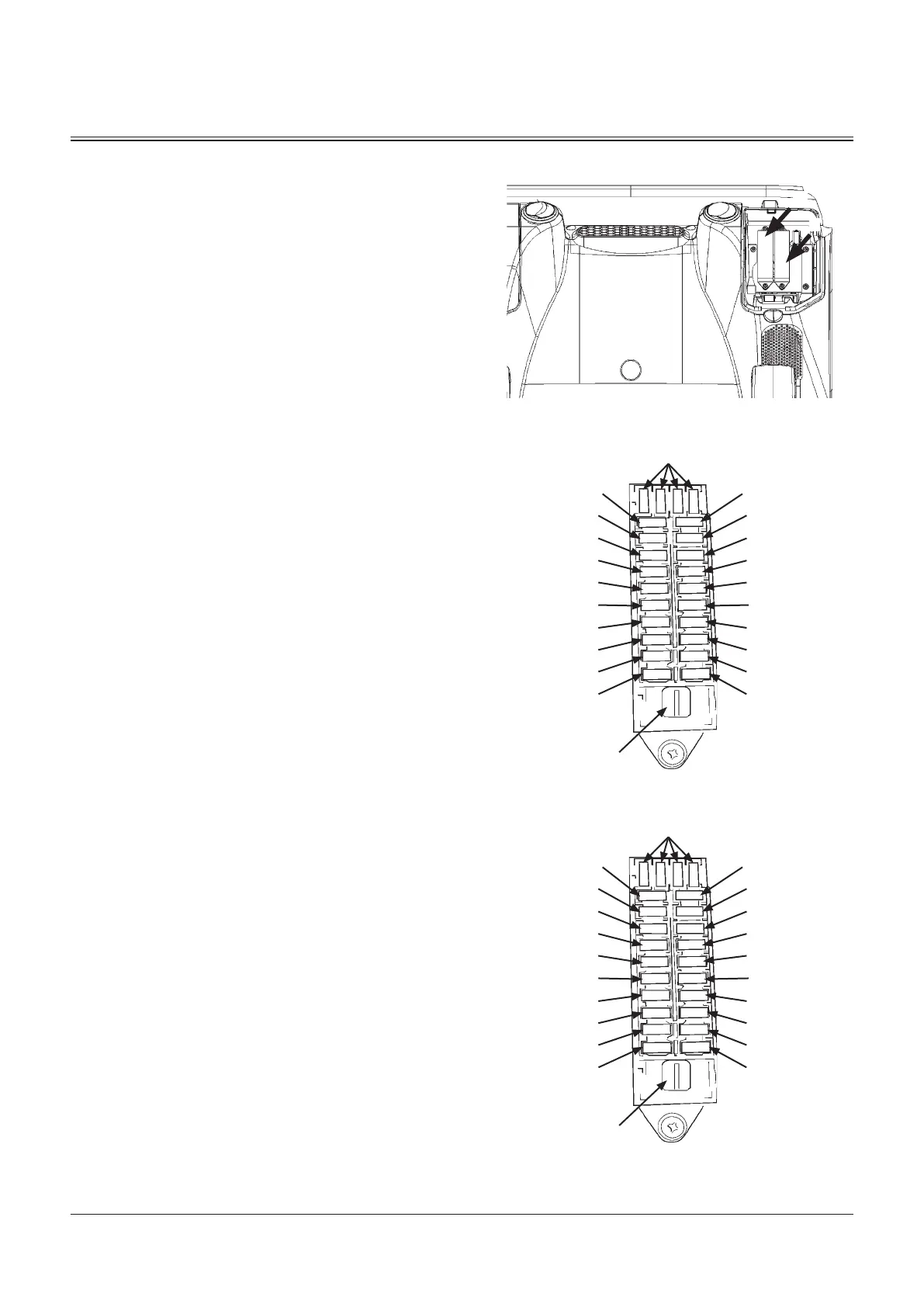

Hitachi ZAXIS 135US-6 class User Manual

MAINTENANCE
7-111
1 11
4 14
7 17
2 12
5 15
8 18
3 13
6 16
9 19
10 20
Tool
Spare Fuses
M1GR-01-003
21 31
24 34
27 37
22 32
25 35
28 38
23 33
26 36
29 39
30 40
Tool
Spare Fuses
M1GR-01-003
A
B
Fuse Box
A
10- CONTROLLER
5 A
20- OPT.3 (ALT)
5 A
9- BACKUP
10 A
19- HORN
10 A
8- ECU
30 A
18- IDLE STOP
5 A
7- START
5 A
17- POWER ON
5 A
6- OPT.2 (ALT)
20 A
16- GLOW RELAY
5 A
5- OPT.1 (ALT)
5 A
15- AUX
10 A
4- SOLENOID
20 A
14- MONITOR
5 A
3- HEATER
20 A
13- LIGHTER
10 A
2- WIPER
10 A
12- RADIO
5 A
1- LAMP
20 A
11- FUEL PUMP
5 A
B
30- - 40- -
29- - 39- -
28- SENSOR_UNIT
10 A
38- -
27- AUX.3
5 A
37- -
26- QUICK HITCH
5 A
36- -
25- IMMOBI
5 A
35- DCU
20 A
24- 12VUNIT
10 A
34- AUX.2
10 A
23- CAB LAMP REAR
10 A
33- WARNING LAMP
10 A
22- CAB LAMP FRONT
10 A
32- CAB LAMP FRONT +2
10 A
21- SEAT HEATER
10 A
31- SEAT COMPR.
10 A
MDCN-01-010
A
B
