MAINTENANCE
7-125
ZX345USLC-6
Clean and Replace Air Conditioner Filter
Clean Circulating/Fresh Air Filters
Circulating Air Filter --- every 500 hours
Fresh Air Filter --- every 500 hours
Replace Circulating/Fresh Air Filters
Circulating Air Filter --- After cleaning 6 times or so
Fresh Air Filter --- After cleaning 6 times or so

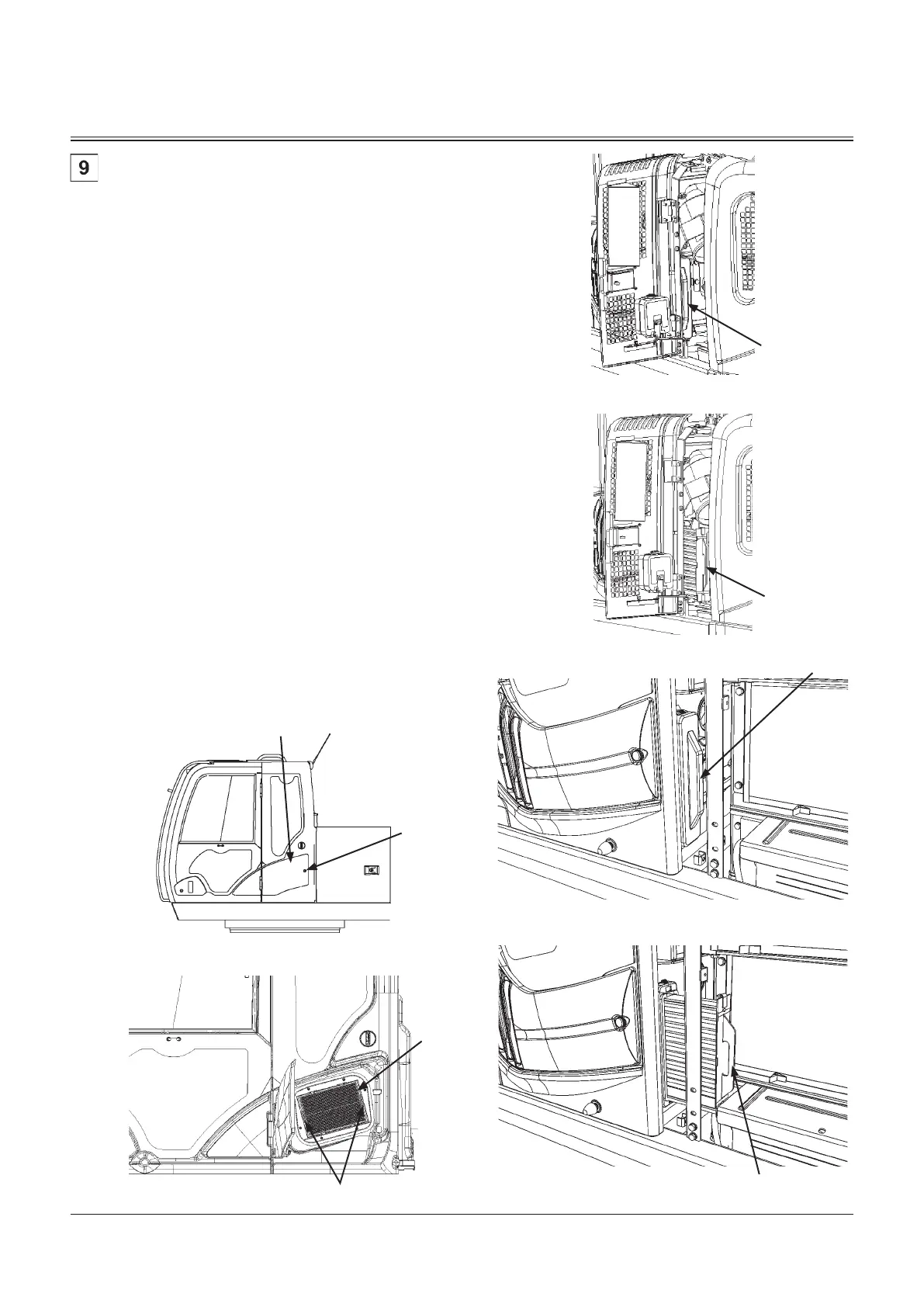

Removing Fresh Air Filter
ZX135US-6, 225USLC-6
1. Grasp the upper section of filter cover (1) and pull to
remove filter cover (1).
2. Grasp the grip on fresh air filter (2) through the opening
from which filter cover (1) is removed and pull to remove
fresh air filter (2).
ZX345USLC-6
1. Insert the key into keyhole (2) on left cab side cover (1).
Then, rotate the key counterclockwise to unlock the key.
Open cover (1).
2. While pressing knobs (4) on both sides of fresh air filter
(3) inward, horizontally remove fresh air filter (3).
MDCN-07-009
MDCN-07-057
MDCN-07-058
MDCN-07-059
ZX135US-6
ZX225USLC-6
ZX225USLC-6
1
2
1
2
MDC1-07-045
1
2
3
4
MDAA-07-040
ZX345USLC-6
ZX135US-6
