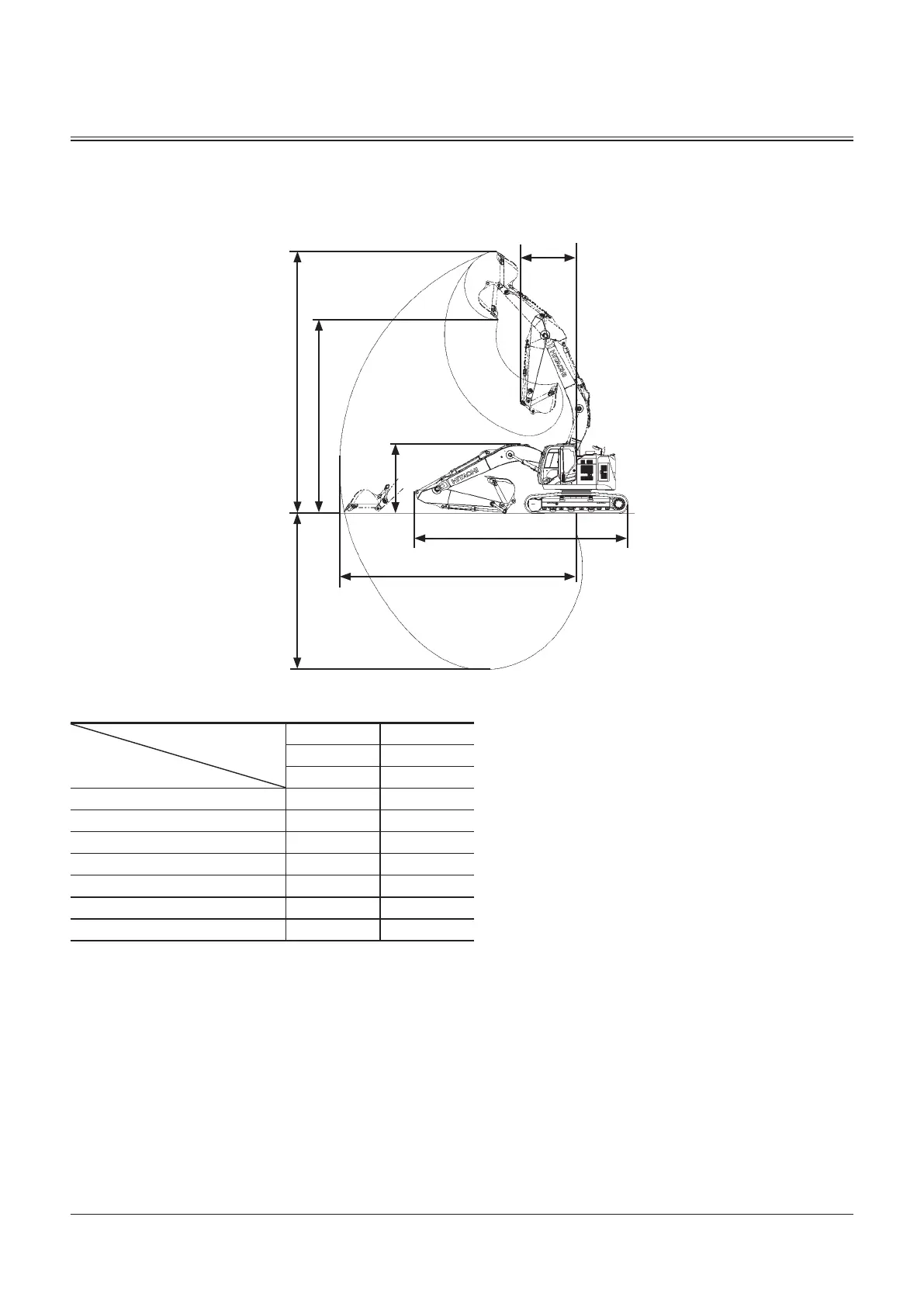

SPECIFICATIONS
12-6
MDAT-12-008
Working Ranges (Grouser shoe)
ZX225USLC-6
Category
Item
2.42 m Arm 2.91 m Arm
Backhoe Backhoe
mm mm
A: Maximum Digging Reach 9620 10110
B: Maximum Digging Depth 6120 6620
C: Maximum Cutting Height 10790 11230
D: Maximum Dumping Height 7870 8290
E: Overall Height 3230 2980
F: Overall Length 9270 9110
G: Minimum Swing Radius 2720 2380
f
NOTE: The dimensions do not include height of the shoe lug (except Item E).
C
D
E
F
A
B
G
