OPTIONAL ATTACHMENTS AND DEVICES
BLADE
Model ZX135US-6 with Blade
Type of Front-End Attachment 2.52 m Arm
Bucket Capacity (Heaped) PCSA 0.50 m
3
, CECE 0.45 m
3
Counterweight Weight 3520 kg
Operating Weight 15100 kg
Base Machine Weight 11500 kg
Engine Type Isuzu AR-4JJ1XASA-02
Engine Power ISO 14396: 74.9 kW/2000 min
-1
(102 PS/2000 rpm)
A: Overall Width (Excluding back mirrors) 2490 mm
B: Cab Height 2790 mm
B':
Cab Top Handrail Height 2870 mm
C: Rear End Swing Radius 1490 mm
D: Minimum Ground Clearance *410 mm
E: Counterweight Clearance *840 mm
F: Engine Cover Height *2320 mm
F': Body Top Handrail Height 2870 mm
G: Overall Width of Upperstructure 2490 mm
H: Undercarriage Length 3580 mm
I: Undercarriage Width 2490 mm
J: Sprocket Center to Idle Center 2880 mm
K: Track Shoe Width 500 mm (Grouser Shoe)
Ground Pressure 47 kPa (0.48 kgf/cm
2
)
Swing Speed 13.5 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.3 km/h
Gradeability 35 ° (tanθ = 0.70)
f
NOTE: * The dimensions do not include the height of the shoe lug.

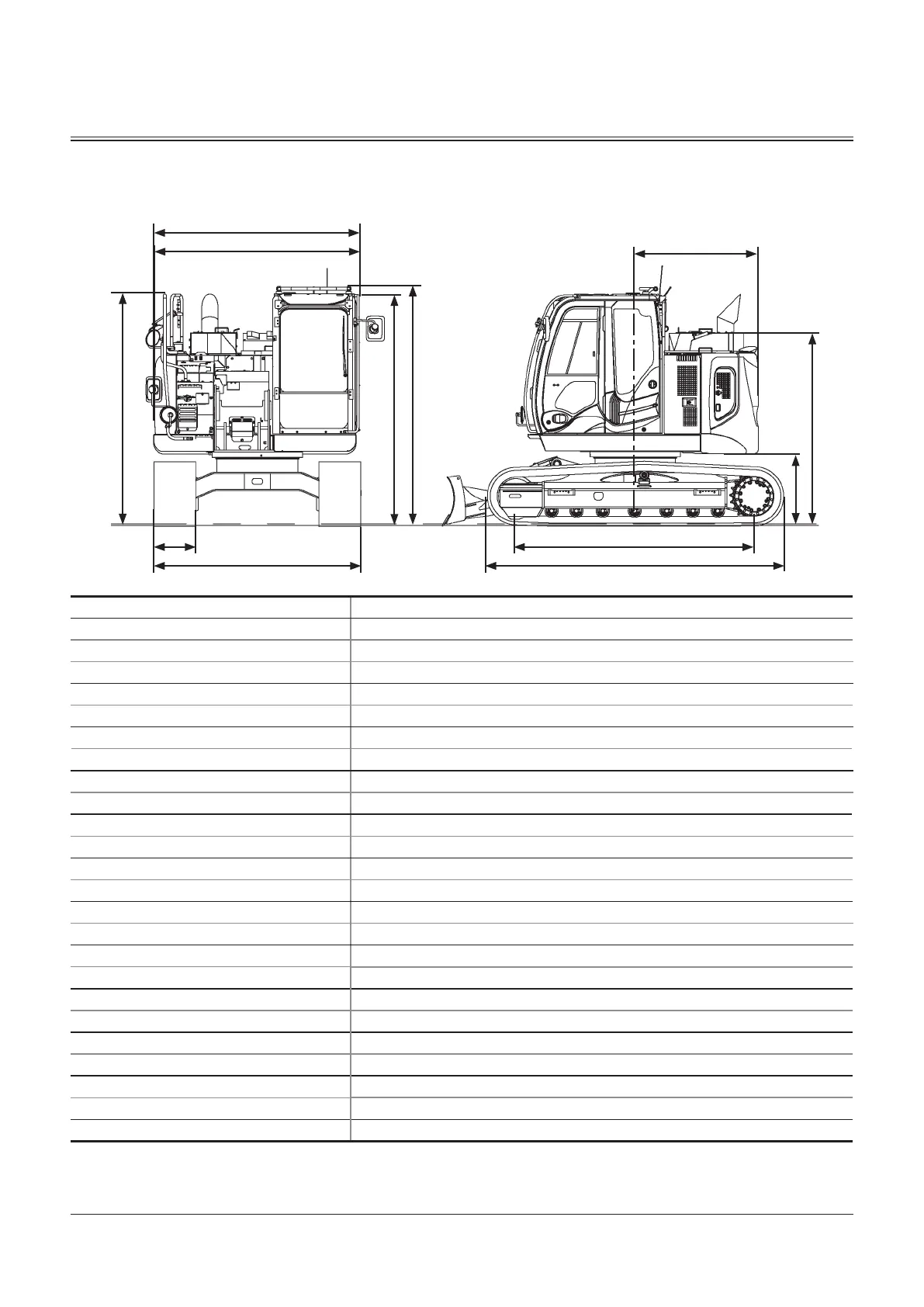

Specifications
ZX135US-6 with Blade
K
I H
J
B B'
F'
E
F
C
MDAT-13-003
A
G
