See Figure 35 on page 101.

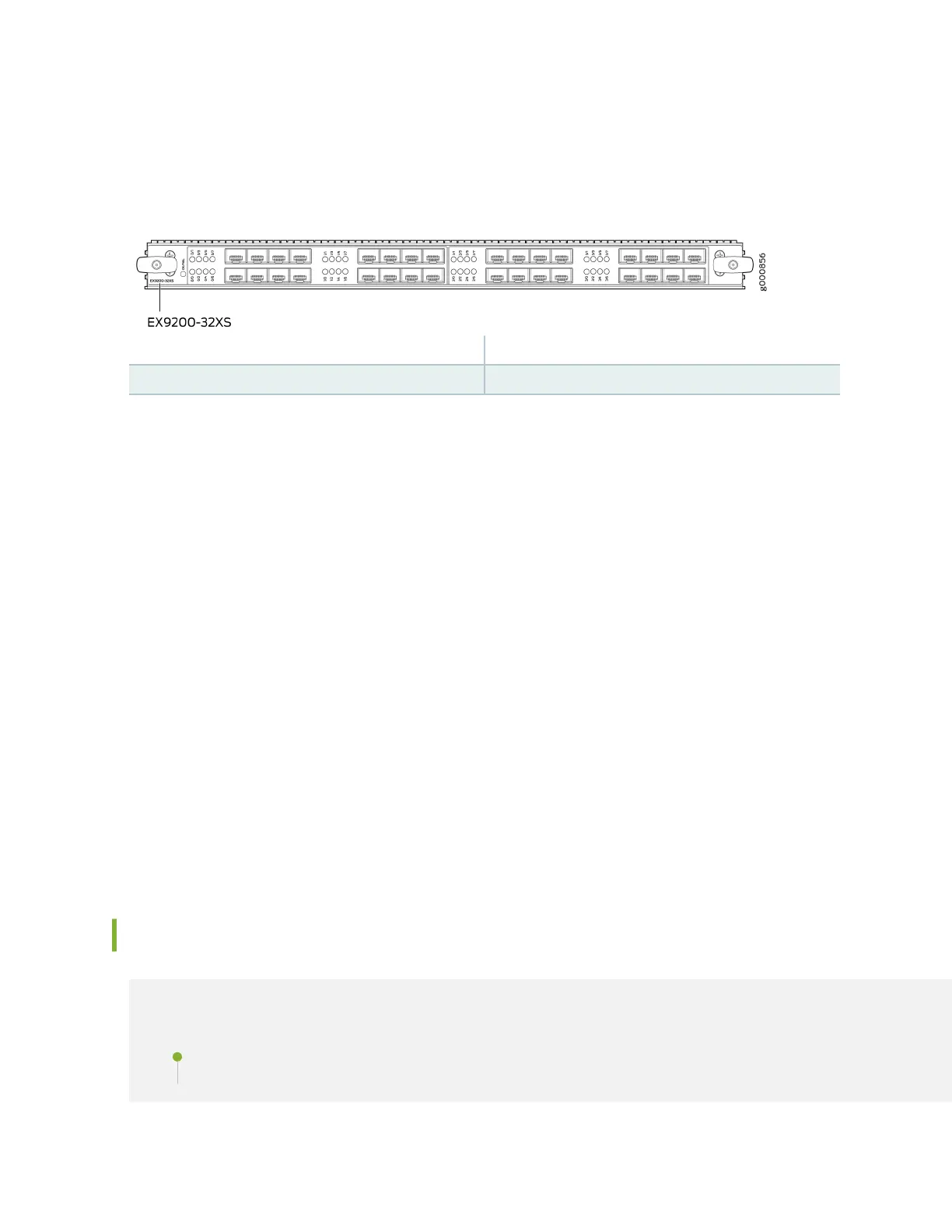

Figure 35: EX9200-32XS Line Card
1—
Ejector lever
3—
LEDs for the ports
2—
Line card LED
4—
10-Gigabit Ethernet ports
You can use the show version command to see the version of Junos OS for EX Series switches loaded on
the switch.
Line Card Components
The line card has:
• 32 10-Gigabit Ethernet ports, each of which can house SFP+ transceivers
• 32 dust covers for the ports (shipped in an accessory bag)
• Line card LED—An LED labeled OK/FAIL, which indicates the status of the line card. See
Line Card
LED in an EX9200 Switch
.
• LEDs for the ports—One LED on each port, the Link/Acvity LED, which indicates the link status and
acvity on the port. See
Network Port LEDs on Line Cards in an EX9200 Switch
.
The ports are divided into two port groups of 16 ports each—the ports labeled 0/0 through 0/7 and 1/0
through 1/7 form one port group; the ports labeled 2/0 through 2/7 and 3/0 through 3/7 form the
other port group. The ports in each group share 130 gigabits of bandwidth. Thus, you can transmit up to
130 gigabits of trac through a port group, without packet drop.
EX9200-40T Line Card
IN THIS SECTION
Line Card Models | 102
101
