Lenze i55AE155F User Manual

Details
The following instrucons describe the connecon establishment via the USB module.
•
Parameterising without motor operaon does not require a mains voltage: If you connect
the inverter directly to the PC without a hub, The USB interface of the PC is sucient for
the voltage supply.
•
Instrucons for the connecon establishment via the WLAN module can be found in the
chapter "Wireless LAN (WLAN)". ^ 426
How to establish a communicaon to the inverter via USB:
Precondions for commissioning:
•
The funconal test described in the mounng and switch-on instrucons has been com-
pleted successfully (without any errors or faults).
•
The inverter is ready for operaon (mains voltage is switched on).
Accessories required for commissioning:
•
USB module
•
USB 2.0 cable (A-plug on micro B-plug)
•
PC with installed »EASY Starter« soware
1.Plug the USB module onto the front of the inverter (interface X16).
2.Use a USB cable to connect the inverter to the PC on which »EASY Starter« is installed:
a) Plug the micro B plug of the USB cable into the socket of the USB module.
b) Plug the other end into a free USB type A-socket of the PC.
3.Start »EASY Starter«.

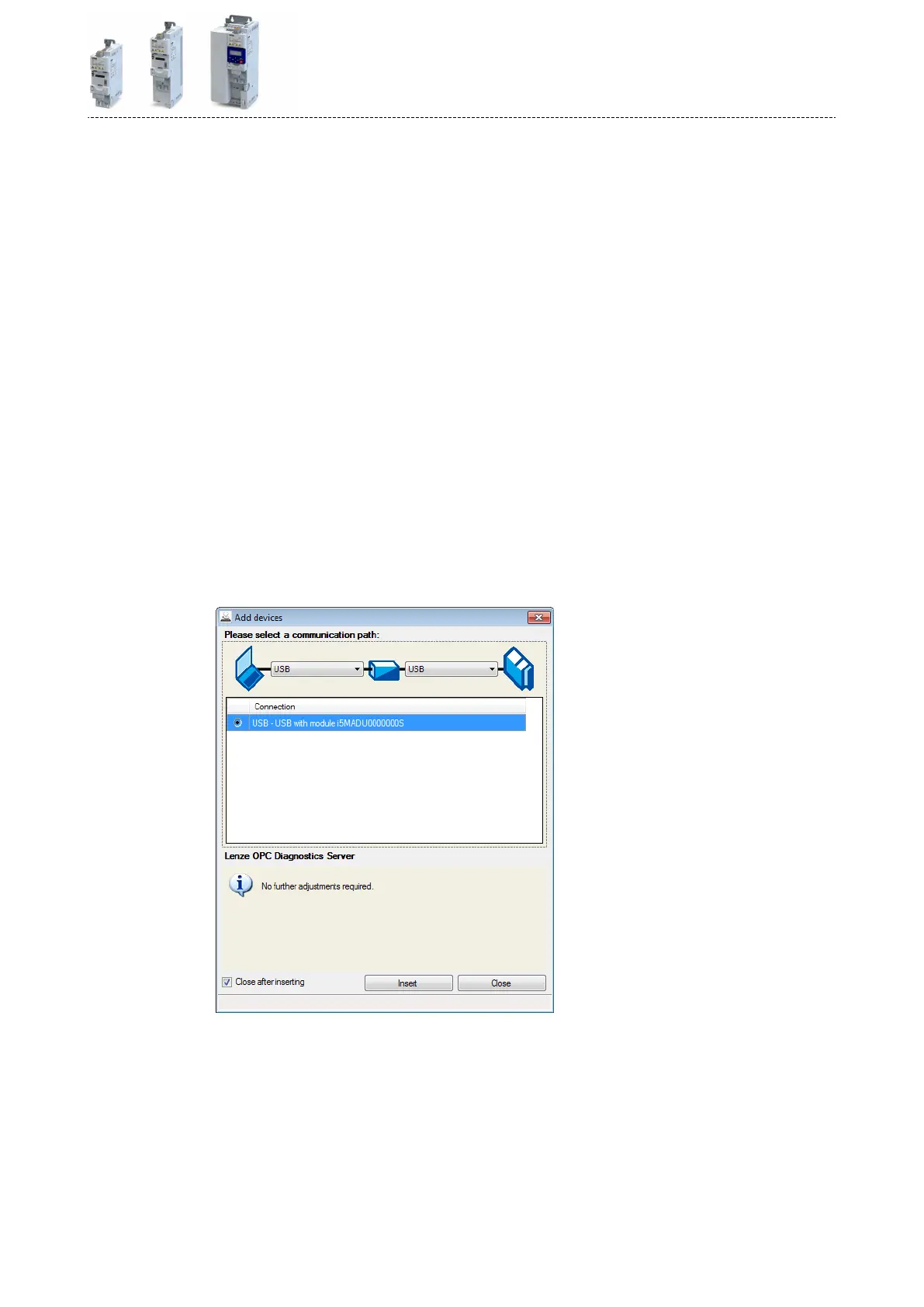

The "Add devices" dialog is shown.
4.Select the "USB - USB via adapter i5MADU0000000S" connecon:
5.Click the Insert buon.
»EASY Starter« searches for connected devices via the communicaon path selected. When
the connecon has been established successfully, the inverter is displayed in the device list
of »EASY Starter«. The inverter parameters can now be accessed via the tabs of »EASY
Starter«.
Commissioning
Operang interfaces
Engineering tool »EASY Starter«
75
