Malfunctions in driving mode
8.3 Warning and error messages
Operating manual 3 302 819 en 8 - 17
GMK3060
13.12.2018

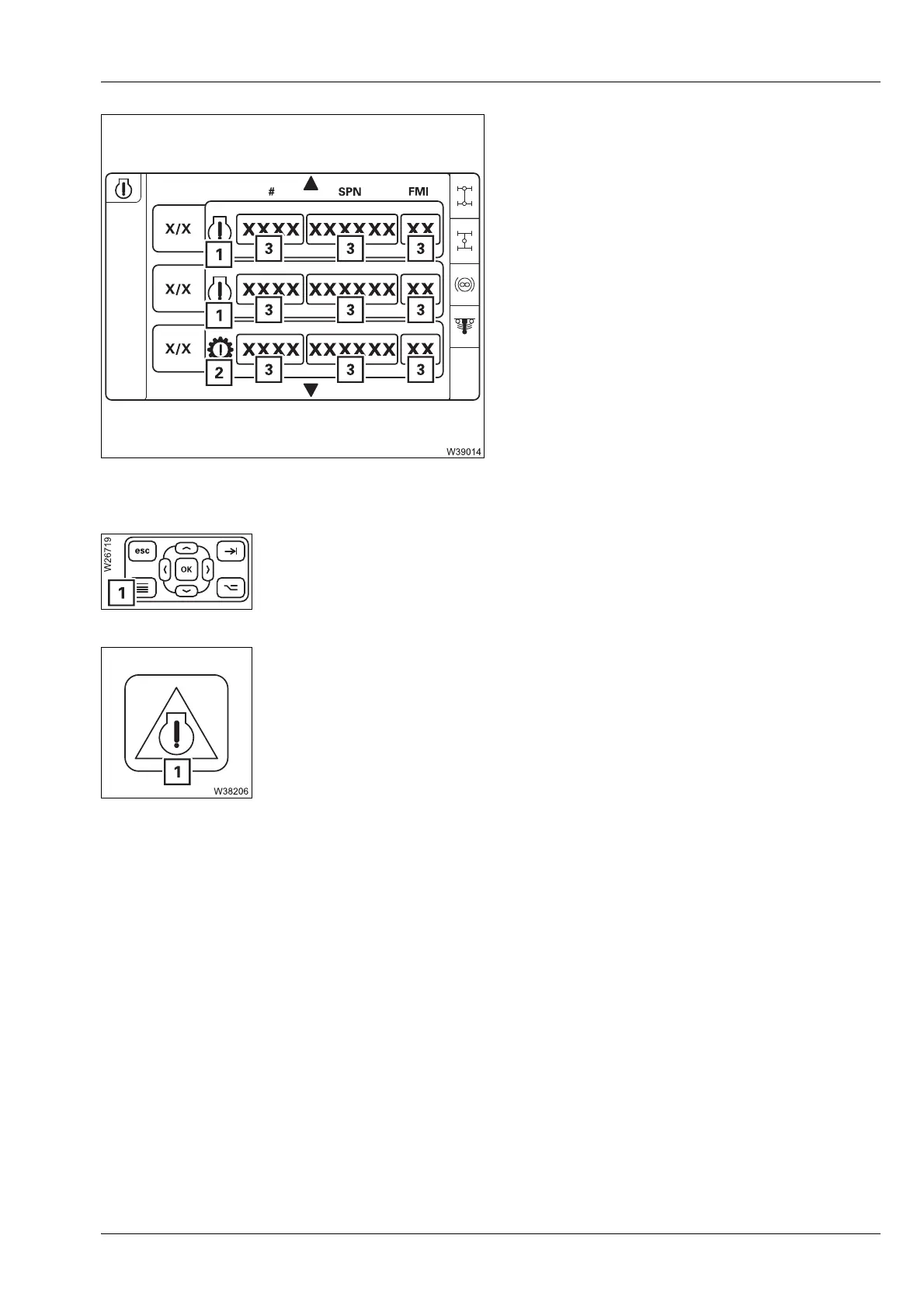

Error message display
For each error the display shows:
– The error code (3)
– The symbols for the faulty components:
• Always note the error code before contacting
Manitowoc Crane Care.
Exiting the menu
You can exit the Engine errors menu at any time.
• Press the button (1) once.
The next highest menu is opened.
If not all errors have been acknowledged then the symbol (1) is displayed
continuously.
When all errors are acknowledged, the symbol (1) goes out.
The buzzer tone sounds once and the symbol (1) flashes when an error occurs.
1 Engine
2 Transmission
