Malfunctions in driving mode
8.7 Fuses on the carrier
8 - 50 3 302 819 en Operating manual
GMK3060
13.12.2018
8.7.2 Fuses in the battery box

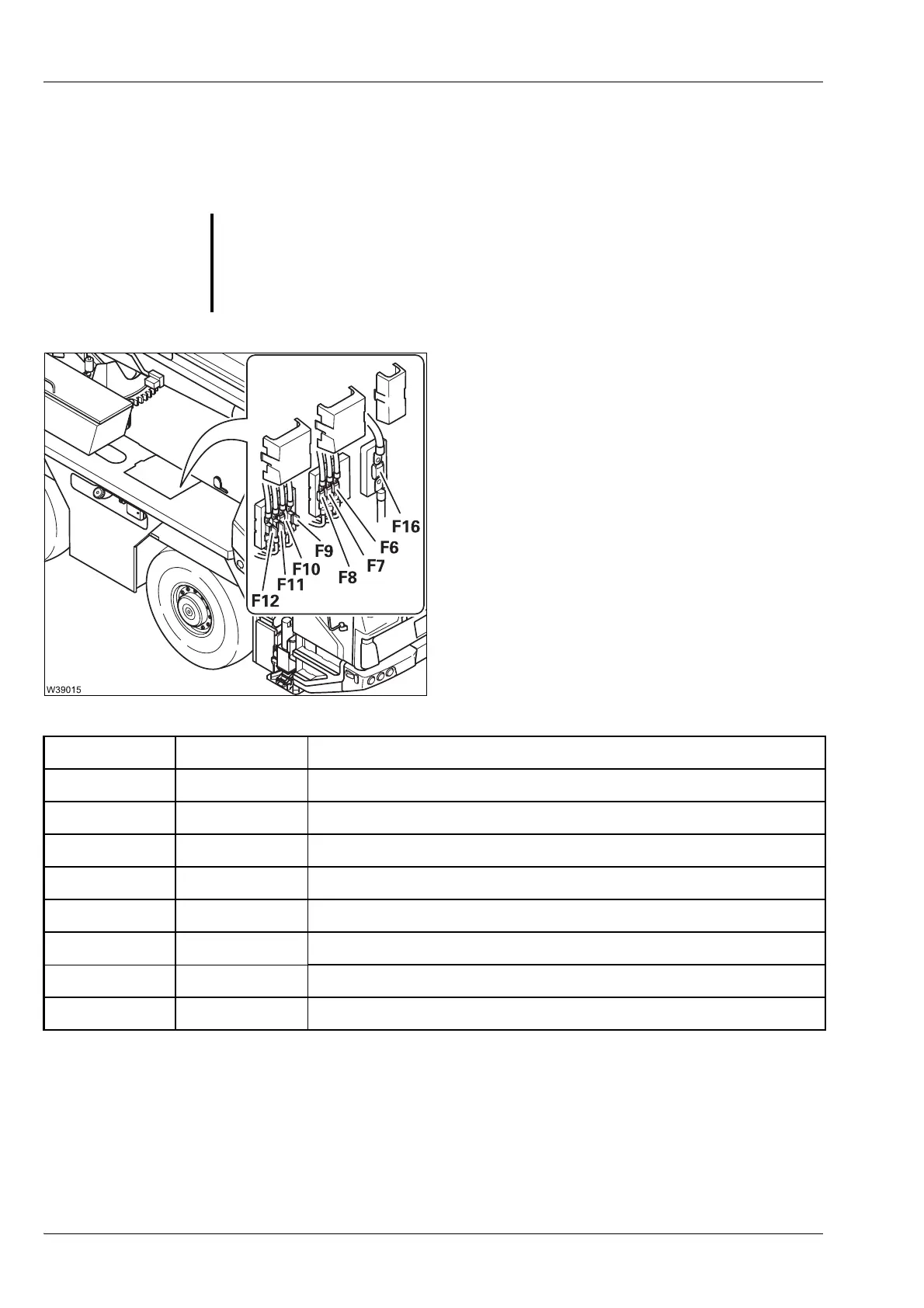

Fuses F7 to F16 are contained in the battery box.
• Open the battery box.
The fuses are in a terminal box in front of the
batteries.
• Remove the lids from the terminal boxes.
• Observe the instructions regarding fuse
changes;
à p. 8 - 43.
S
Danger from lead and lead compounds on batteries!
Battery poles, terminals and parts of the battery itself contain lead and lead
compounds. Wash your hands after working on these parts or in these areas!
Designation Amperage (A) Function
F6 40 Carrier central fuse
F7 50 Carrier central fuse
F8 50 Superstructure central fuse
F9 20 Carrier central fuse
F10 20 Carrier central fuse
F11 30 Engine control system main fuse
F12 20 Battery charger connection
F16 150 Engine preheating
