9.2.22 Rated capacity limiter (RCL)

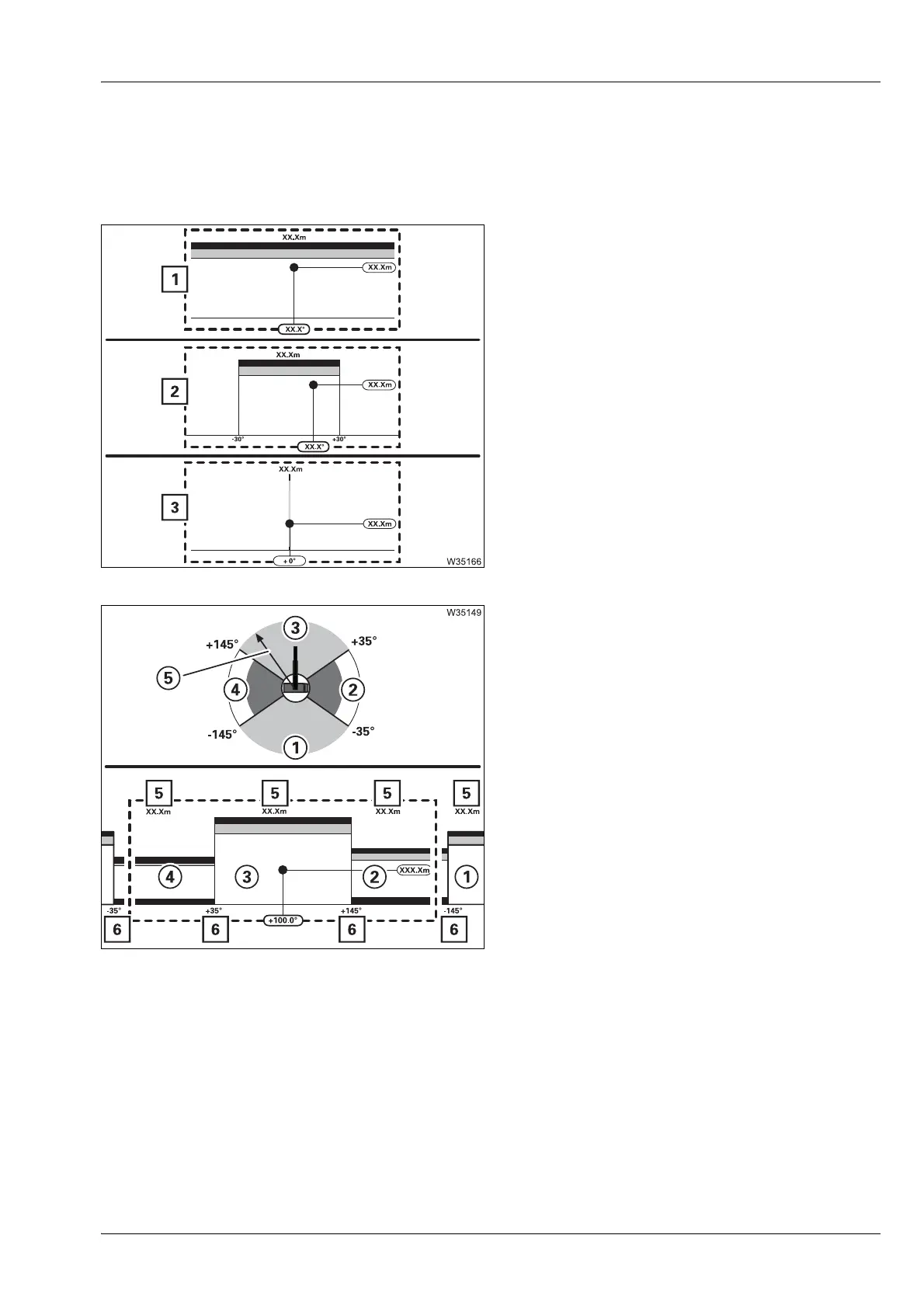

CCS display In the Start menu
For the Standard slewing range type
Only one slewing range is displayed
The displays for working radius, current slewing
angle and current position are identical to the
displays for the MAXbase slewing range type.
For the MAXbase slewing range type
– Slewing ranges/working radii display
Represents the defined slewing ranges and
corresponding respective maximum permissi-
ble operating radii
5
for the confirmed rigging
mode as a diagram.
– Display of current slewing range divisions
Shows the currently defined slewing ranges
1
to
4
as pillars
1
to
4
. The pillar width
represents the angular range.
– Display of current slewing range limits
Shows the currently defined slewing range
limits (6) in degrees.
For example -35° / +35° / +145° / -145°.
s
1 360° slewing range
2 Restricted slewing range, e.g. ±30°
3 Operating position, e.g. 0° to the rear
