12.6 Rigging/unrigging the counterweight
12 - 68 3 302 819 en Operating manual
GMK3060
13.12.2018
12.6.9 Counterweight hoist unit

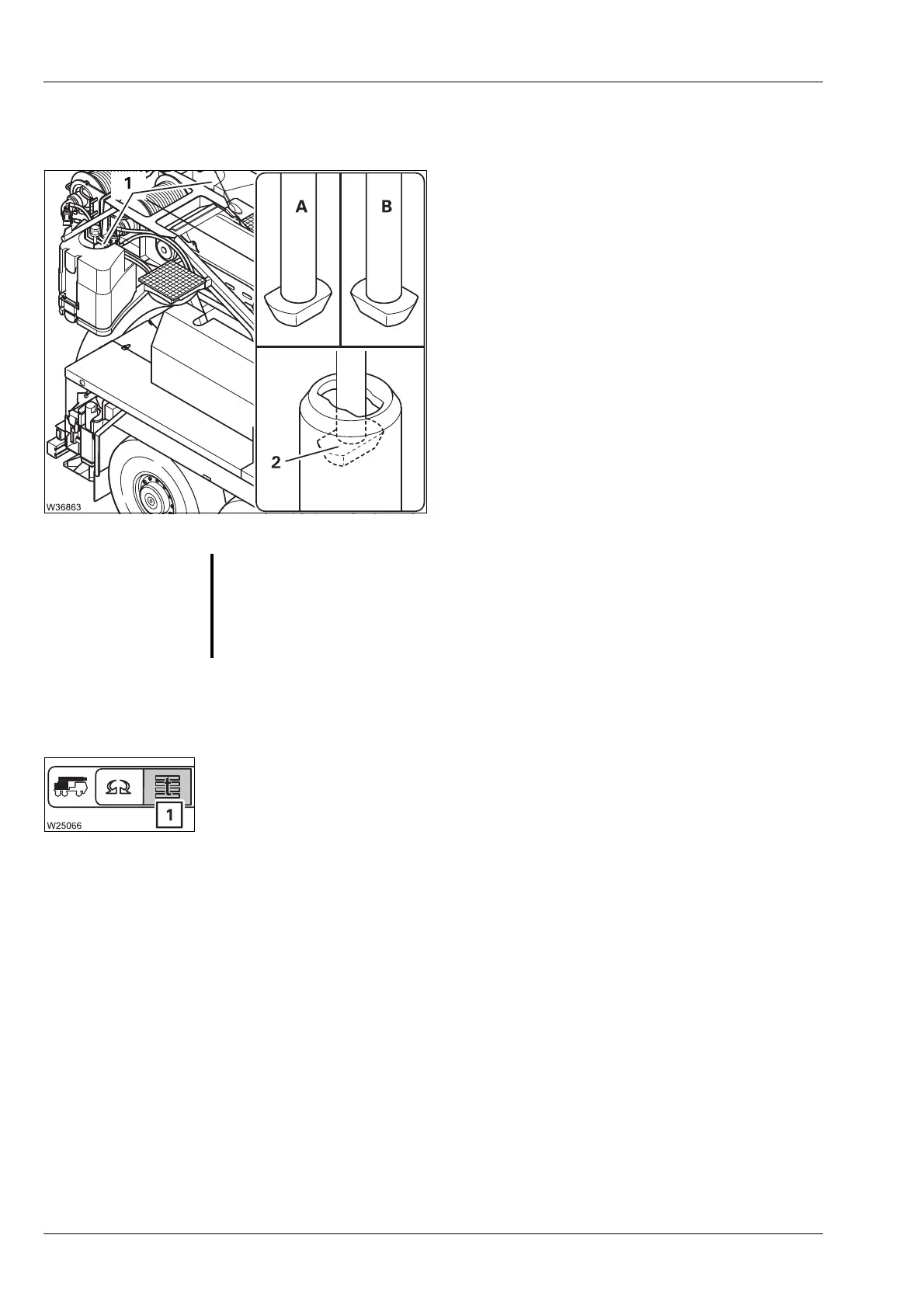

The lifting cylinders (1) can be
– extended and retracted and
– turned to the positions Locked (A) or
Unlocked (B).
To lift and lower the counterweight, the lifting
cylinders have to be locked into the plate (2).
Counterweight
menu
To operate the counterweight hoist unit, you must open the Counterweight menu.
Opening the menu
• Open the Counterweight menu (1).
G
Risk of crushing when lifting and lowering the counterweight
Remove all objects from the sections and the counterweight platform before
raising/lowering.
Make sure nobody is on the counterweight platform while the counterweight is
being lifted or lowered.
