12.4 Outriggers – Overview – MAXbase slewing range type
12 - 22 3 302 819 en Operating manual
GMK3060
13.12.2018
Three / One
The outrigger span is the same for three outrigger
beams and one outrigger beam has a smaller out-
rigger span.
The overall width is entered once and an individ-
ual width is entered once. For example
12.4.3 Enabled outrigger spans
Particular combinations are enabled for each type of outrigger span. This section
shows all released combinations with the associated individual widths of the out-
rigger beams.

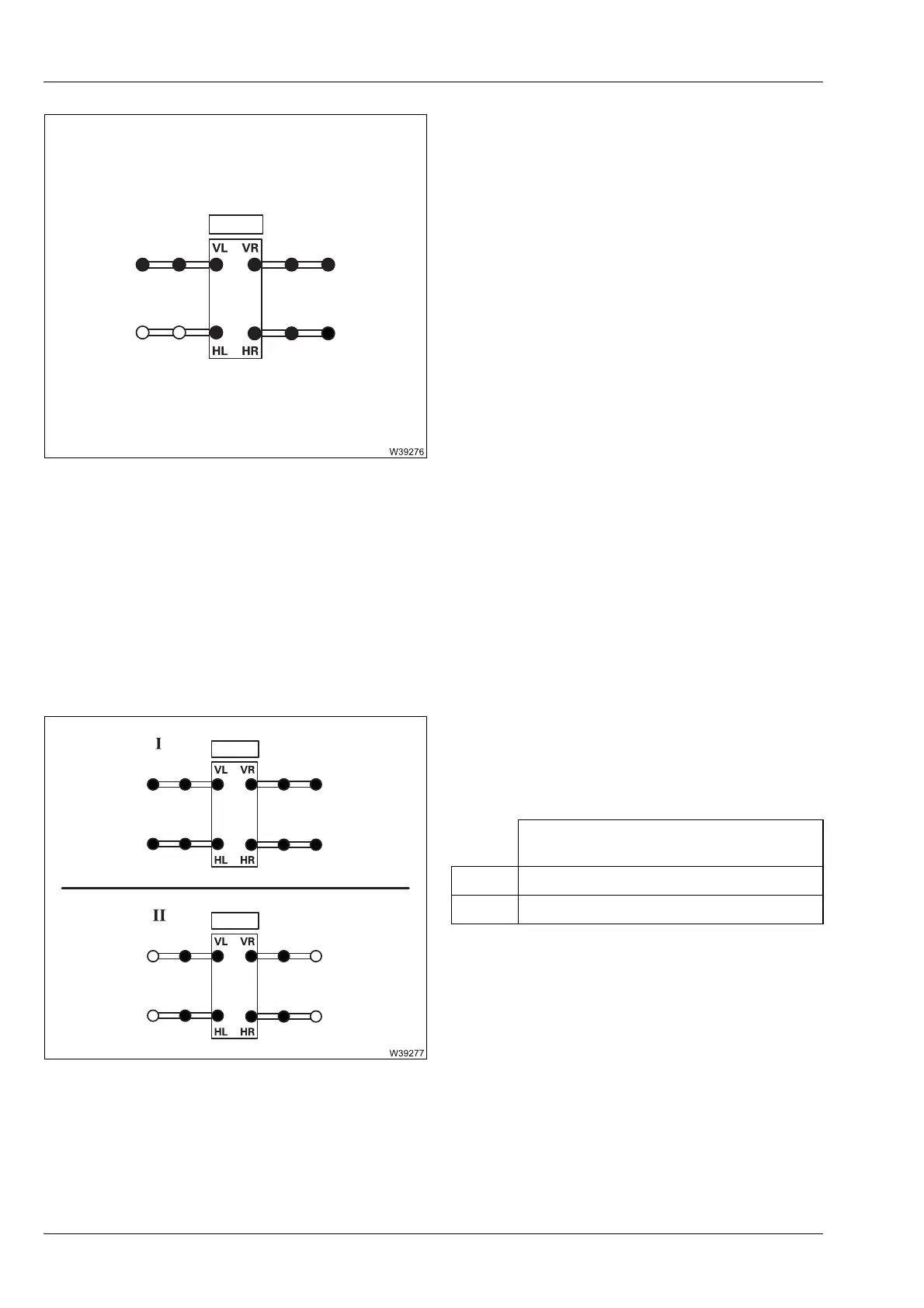

Symmetrical
The outrigger span is the same for all outrig-
ger beams. The table shows the released
combinations.
Front outrigger span 6.200 m (20.3 ft)
Rear outrigger span 3.100 + 1.160 m
(10.2 + 3.8 ft)
FL / FR / RL / RR (front left /
front right / rear left / rear right)
I
3.100 m (10.2 ft)
II
2.200 m (14.4 ft)
