Operating elements for crane operation

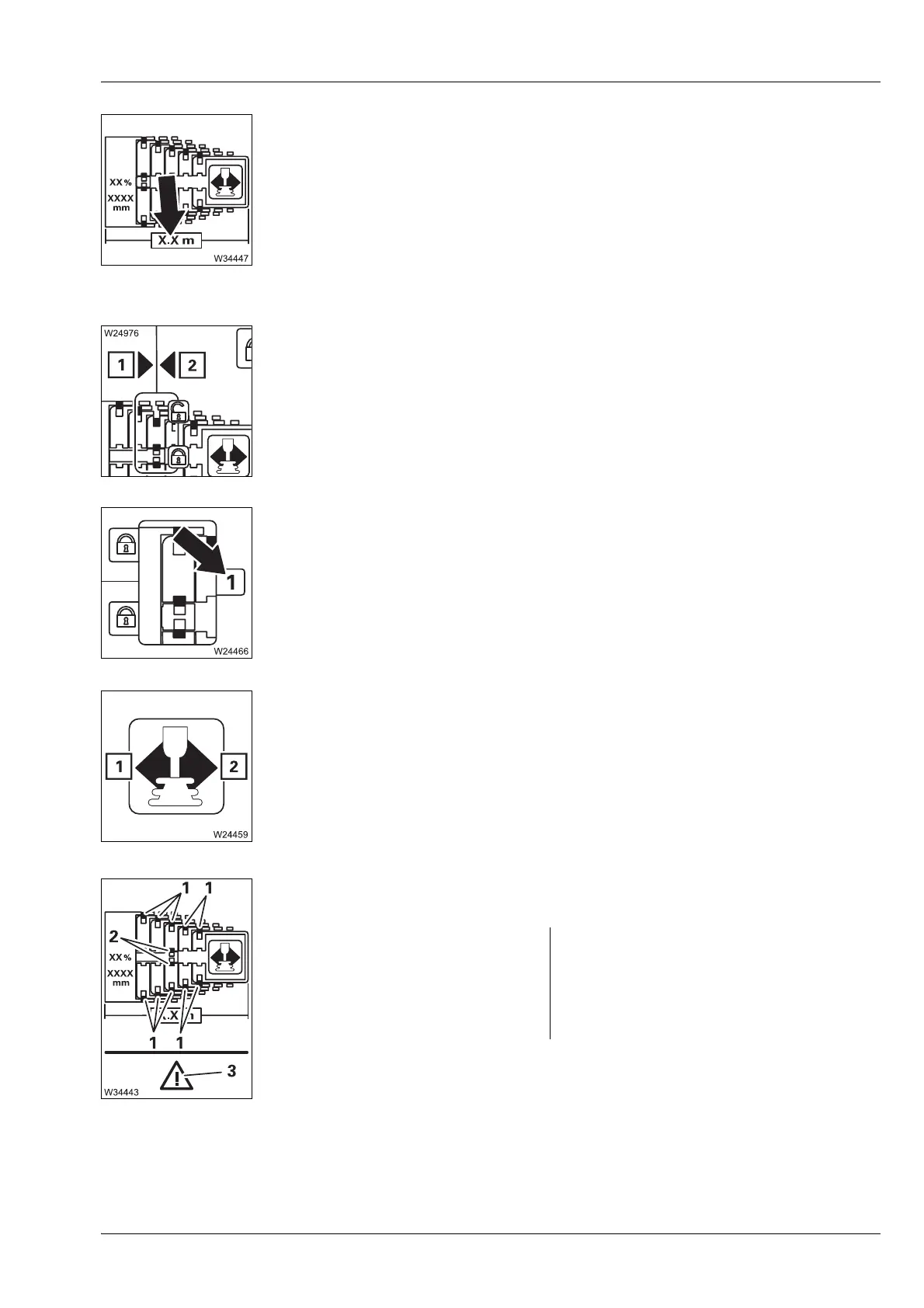

9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 121
GMK3060
13.12.2018
Main boom length display
Locking point display
Telescoping cylinder in the telescopic section display
Displayed telescopic section, e.g. telescopic section
I
Telescoping direction display
Telescope diagram display
Current relation of the telescopic sections to each other – section of top view.
– Display: Current extended length of the main boom
– Unit of measure-
ment:
Displayed depending on setting, mm (millimetres) or
ft (feet)
à p. 11 - 107
1 Extend telescoping cylinder
2 Retract telescoping cylinder
1 Start with Retract
2 Start with Extend
à p. 11 - 116
Locking pin Display 1 and 2
1 On the telescopic section – Green: Locked
2 On the telescoping cylinder – Yellow: Intermediate position
3 Error – Red: Unlocked
à p. 11 - 108
