Operating elements for crane operation
9.2 Brief description of the operating elements
9 - 124 3 302 819 en Operating manual
GMK3060
13.12.2018

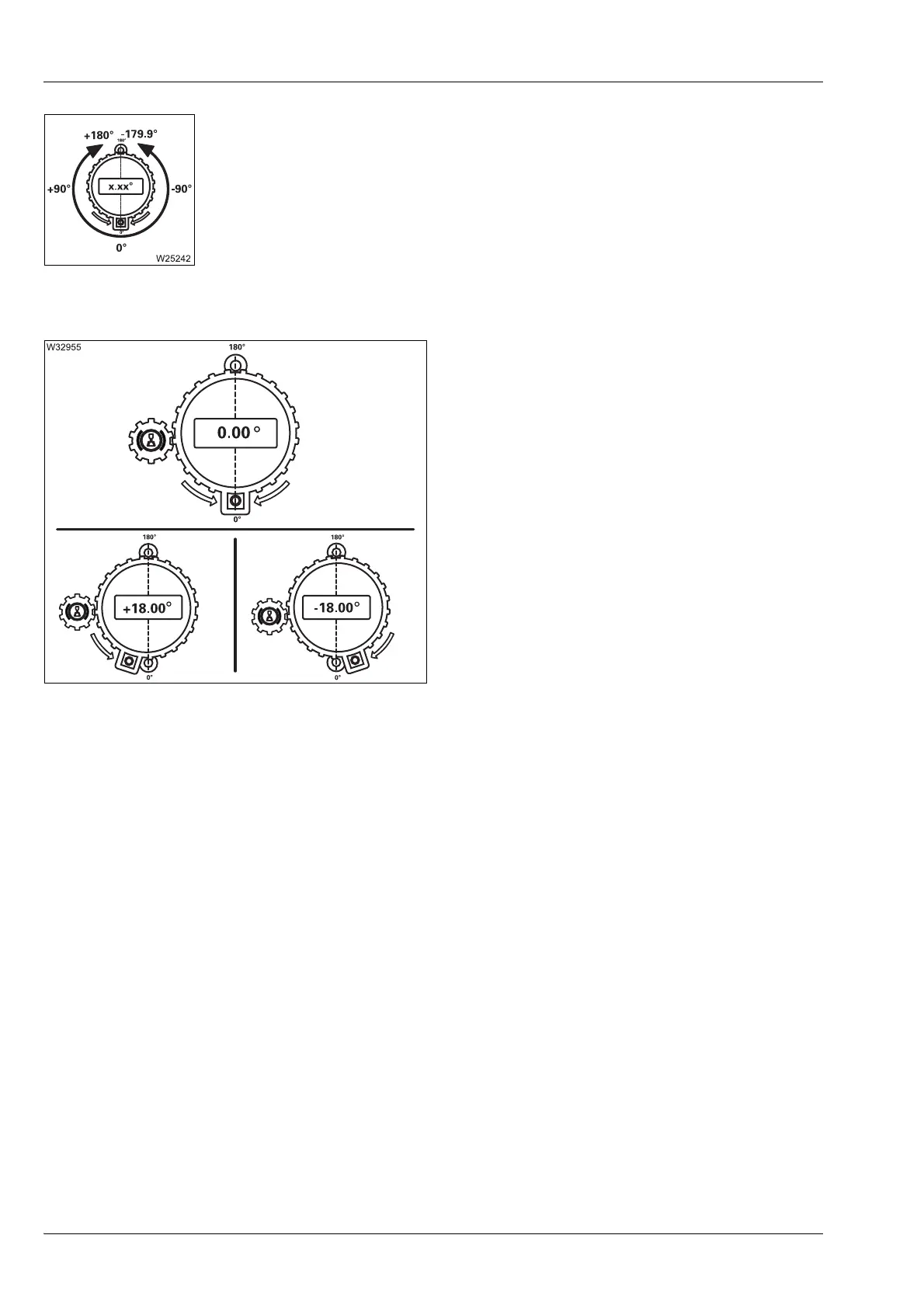

Current slewing angle display
Directional indicator
Current position: Range of ± 20° in front of the
locking point.
0°: Position 0° to the rear – locking point
180°: Position 180° to the front – locking point
+ 0.1 to +180.0°: Turned to the right from 0°
− 0.1 to −179.9°: Turned to the left from 0°
à p. 11 - 121
– Both arrows: locking point reached
– One arrow: direction of arrow = turning
direction towards the locking
point
à p. 11 - 18
