Crane operation
11.4 Operation of the rated capacity limiter
11 - 48 3 302 819 en Operating manual
GMK3060
13.12.2018

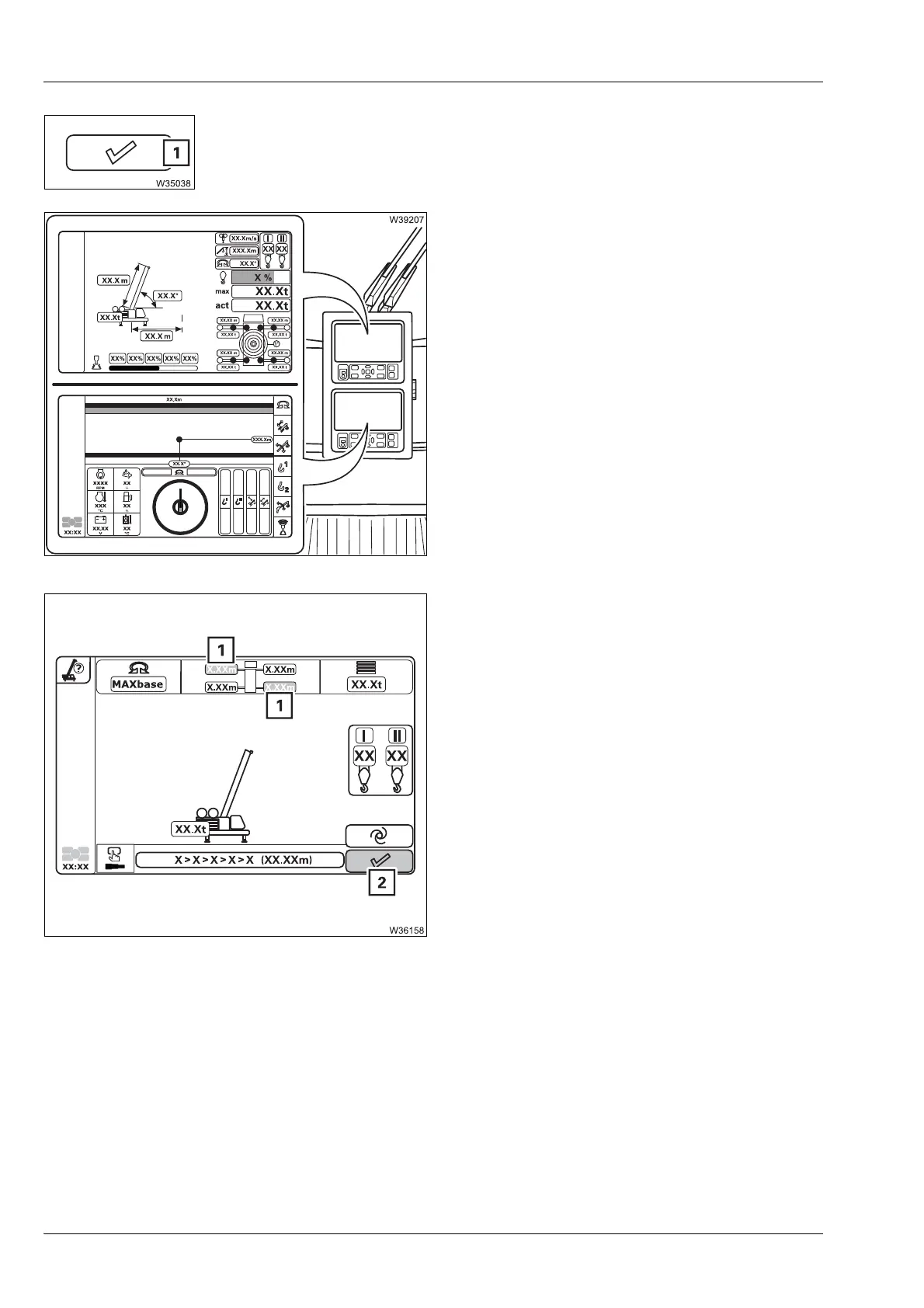

• Select and confirm the symbol (1).
If the rigging mode is permissible
The rigging mode is accepted together with the
display lifting capacity table.
The RCL display shows the Monitoring menu.
The CCS display shows the Start menu.
The crane movements are enabled if no error is
present;
à Checks before operating the crane,
p. 11 - 49.
If a deviation in the outrigger span is detected
The symbol (2) is grey.
The rigging mode cannot be conformed, crane
operation is not enabled.
If the value for an outrigger span is red then a
deviating outrigger span has been detected, for
example, for the values (1).
• Rig the required outrigger spans.
