Rigging work
12.5 Operating the outriggers
12 - 28 3 302 819 en Operating manual
GMK3060
13.12.2018

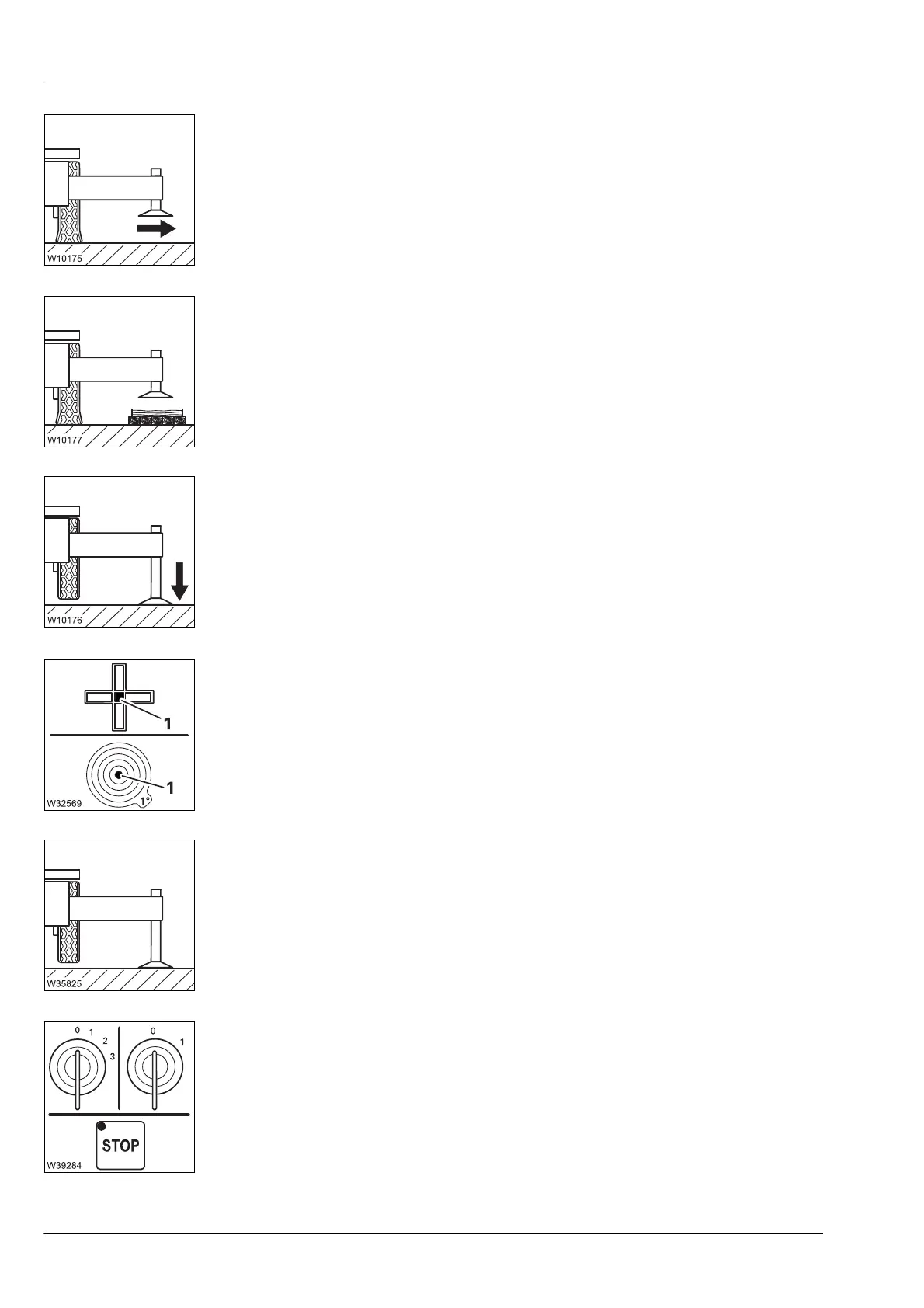

5. Move the outrigger pads into the operating position and secure them;
à p. 12 - 37.
6. Enlarge the load-bearing area if necessary;
à Determining the required load-bearing area, p. 12 - 9,
à Enlarging the load-bearing area, p. 12 - 38.
7. Extend the supporting cylinders until none of the wheels is touching the
ground;
à p. 12 - 39.
8. Level the truck crane with the outriggers.
The lamp (1) lights up in the measuring range 1°;
à p. 12 - 43
9. Check that none of the wheels are touching the ground.
Adjust the position if necessary.
10. Switch off the engine;
à In the driver's cab, p. 4 - 19,
à In the crane cab, p. 10 - 11
à On the outrigger control units, p. 4 - 19.
