Driving with a rigged truck crane
13.5 Driving from the crane cab
13 - 16 3 302 819 en Operating manual
GMK3060
13.12.2018

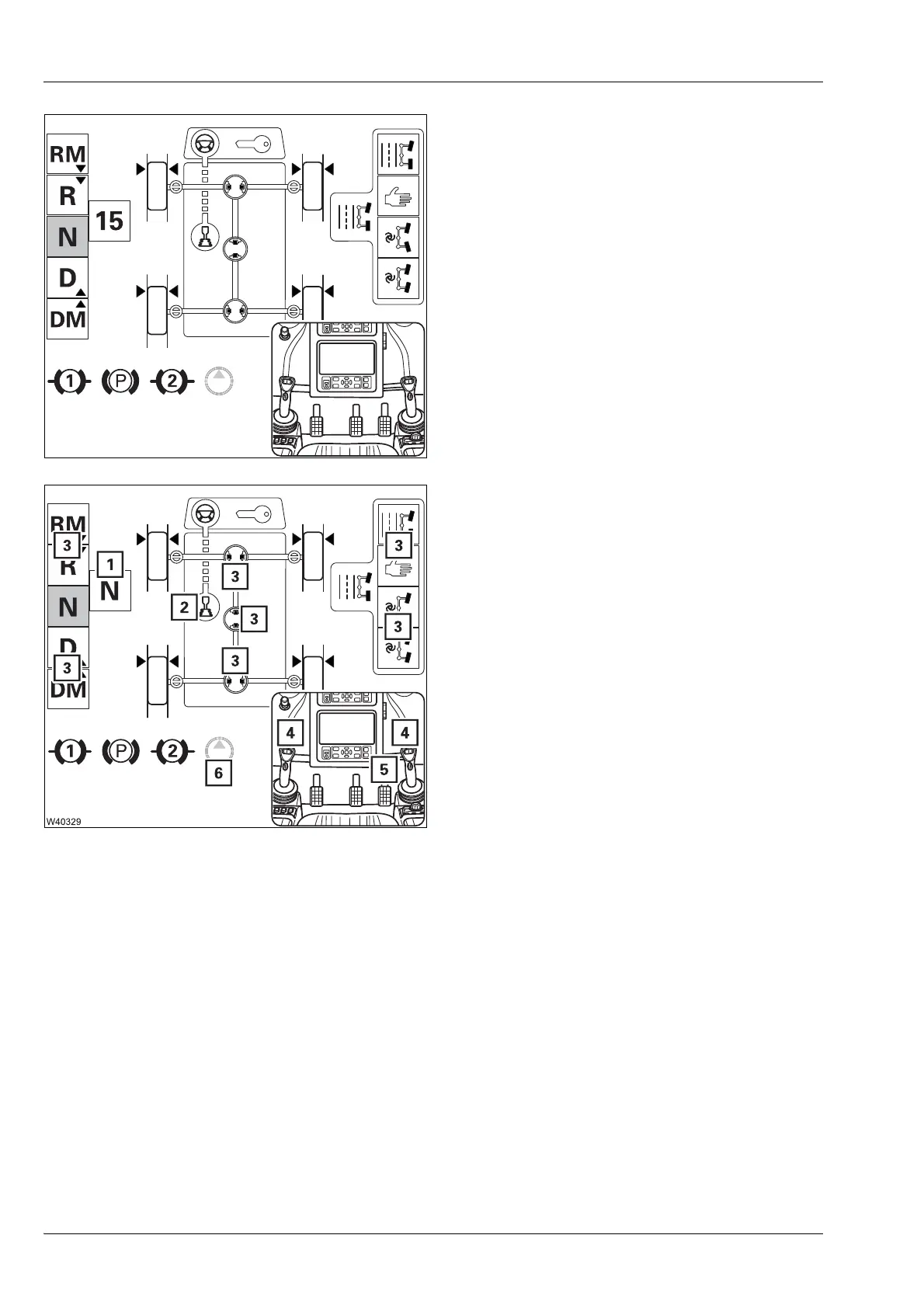

In crane operation
The symbol (2) is white.
The gear indicator (1) indicates gear 15 (shift
position for supplying the crane's hydraulic
system).
The operating elements (3) are disabled.
The buttons (4) are assigned the High-speed
function.
The crane's hydraulic system Driving mode is
switched off – symbol (6) grey.
The engine speed for crane operation is regulated
using the pedal (5).
In driving operation
The symbol (2) is green.
The transmission is in neutral position –
display (1).
The operating elements (3) are released.
The buttons (4) are assigned the Steering function.
The crane's hydraulic system Driving mode is
switched on – symbol (6) orange.
The engine speed for driving is regulated using
the pedal (5).
